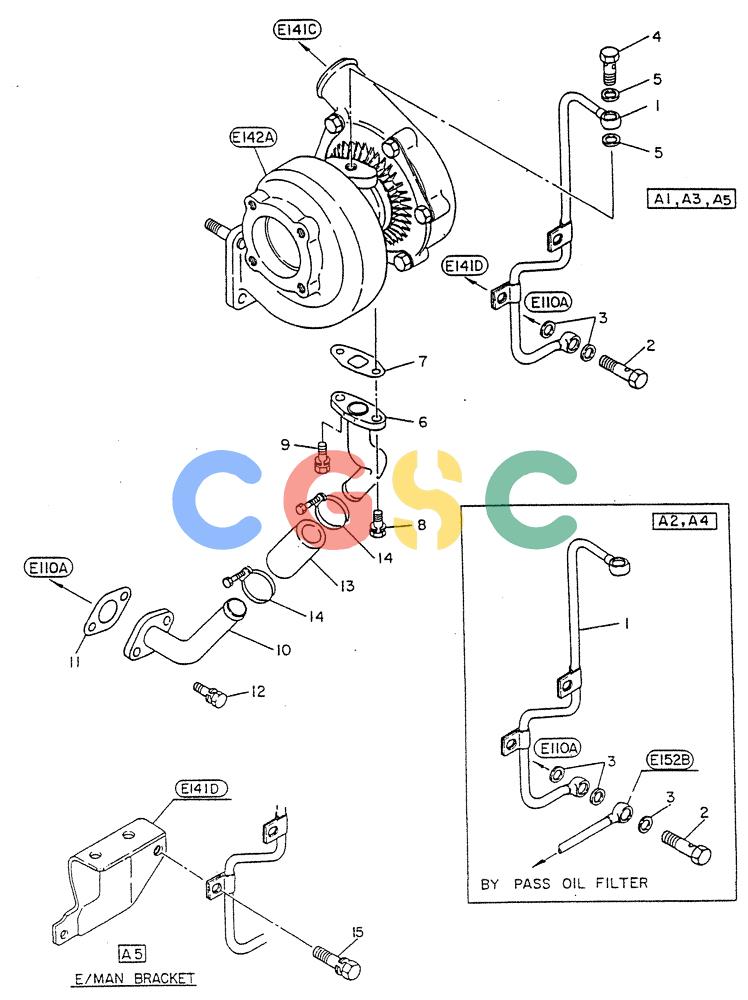

神钢零件查询(FD6(T)14) - NISSAN DIESEL ENGINE ASN 050001 - LK400 & LK500A (1/06-12/06) (03-007) - TURBO CHARGER EXHAUST(OIL PIPE) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
128 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG15116Z5509 | [1] | PIPE ASSY-OIL,FOR A1-A4 ONLY | |
| 1. | VG15116Z5511 | [1] | PIPE PIPE ASSY-OIL,FOR A5 ONLY | PIPE PIPE ASSY-OIL,FOR A5 ONLY |
| 2. | VG15152Z5500 | [1] | SCREW | KOBBOLT,FOR A1,A3,A5 ONLY |
| 2. | VG1552Z5502 | [1] | BOLT,FOR A2,A4 ONLY | |
| 3. | VG0135121124 | [2] | GASKET | KOBGASKET,FOR A1,A3,A5 ONLY |
| 4. | VG0161900324 | [1] | SCREW | KOBBOLT-EYE |
| 5. | VG0135121124 | [2] | GASKET | KOBGASKET |
| 6. | VG15114Z5510 | [1] | PIPE PIPE-OIL DRAIN | PIPE PIPE-OIL DRAIN |
| 7. | VG14212Z5500 | [1] | GASKET | KOBGASKET |
| 8. | VG0811082062 | [2] | BOLT | KOBBOLT,W/WASHER,FOR A1,A2,A5 ONLY |
| 9. | VG0811082562 | [1] | BOLT BOLT,W/WASHER,STAY,FOR A3,A4 ONLY | BOLT BOLT,W/WASHER,STAY,FOR A3,A4 ONLY |
| 10. | VG15115Z5500 | [1] | PIPE-OIL DRAIN,BLOCK SIDE,FOR A1-A4 ONLY | |
| 10. | VG15115Z5501 | [1] | PIPE PIPE-OIL DRAIN,BLOCK SIDE,FOR A5 ONLY | PIPE PIPE-OIL DRAIN,BLOCK SIDE,FOR A5 ONLY |
| 11. | VG1233497000 | [1] | GASKET-FLANGE | |
| 12. | VG0811082062 | [2] | BOLT | KOBBOLT,W/WASHER |
| 13. | VG15119Z5500 | [1] | HOSE HOSE-OIL DRAIN | HOSE HOSE-OIL DRAIN |
| 13. | VG1511990005 | [1] | HOSE | |
| 14. | VG0155510104 | [2] | CLAMP-HOSE | |
| 15. | VG0812402033 | [1] | BOLT,W/WASHER,EXH MANIF. BRACKET,FOR A5 ONLY | |
