凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AA[01]) - NET WRAP ROLL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
457 次

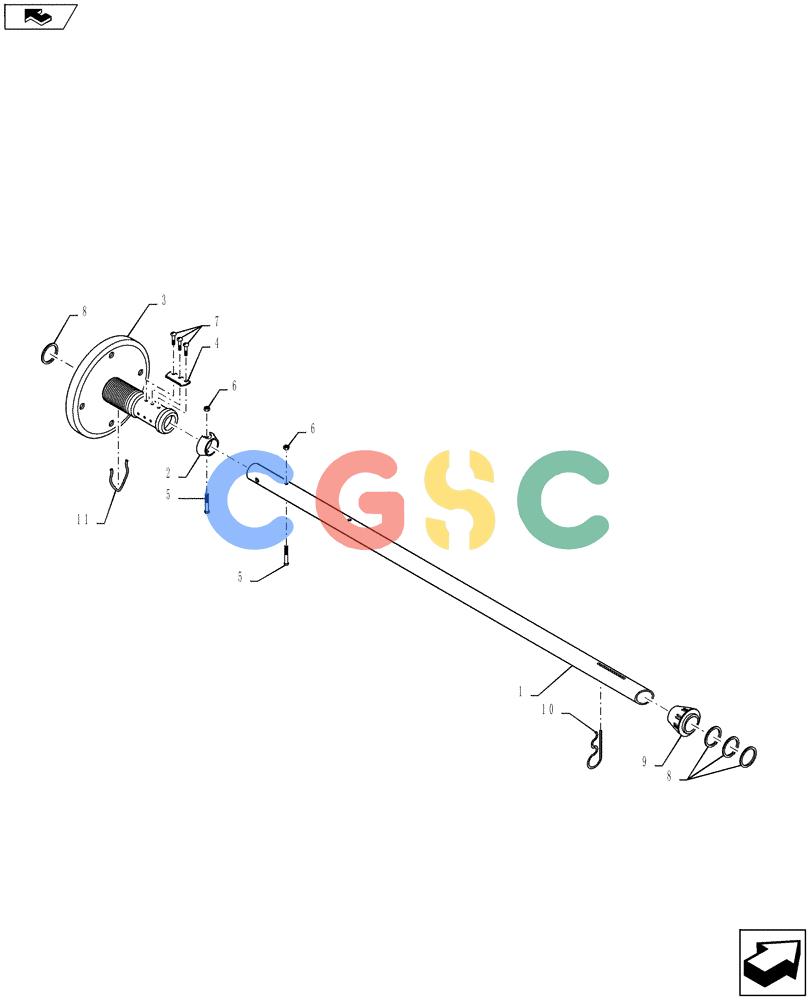

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84568704
|
[1] |
RIGID TUBE
|
NH
|
| 2. |
87016039
|
[1] |
CONE
|
PA
|
| 3. |
84590432
|
[1] |
DRUM
|
NH
Incl 13
|
| 4. |
86627923
|
[4] |
STRIP
|
NH
|
| 5. |
338413
|
[2] |
BOLT,Hex, M6 x 60mm, Cl 8.8
|
NH
|
| 6. |
353308
|
[2] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 7. |
87684280
|
[12] |
SELF-TAP SCREW,Pan, #8 - 18 x 1/4"
|
NH
|
| 8. |
87016189
|
[4] |
WASHER,51.18mm ID x 63.5mm OD x 1.65mm Thk
|
PA
|
| 9. |
86540330
|
[1] |
GUIDE
|
NH
|
| 10. |
86601285
|
[1] |
COTTER PIN,26mm OD x 118.5mm L
|
NH
|
| 11. |
86613336
|
[1] |
COTTER PIN
|
NH
|
| 12. |
86026
|
[2] |
LOCK WASHER,Ext, #8
|
GI
|
| 13. |
86617942
|
[1] |
BUSHING,48.96mm ID x 57.23mm OD x 19.1mm L
|
NH
|
