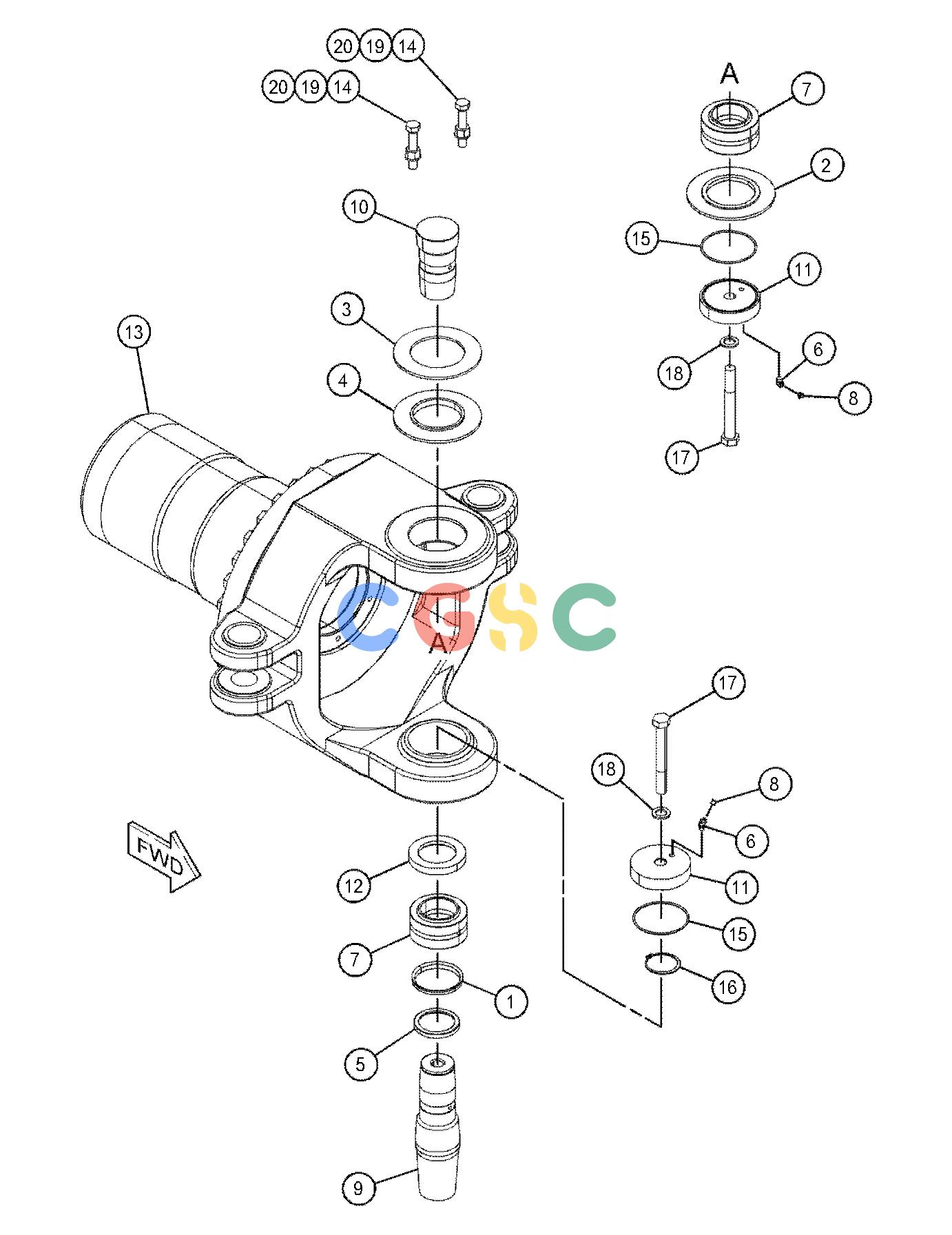

卡特零件查询（725C） 383-1813: HITCH GP-OSCILLATING
广数供应链运营团队, 14 02月, 2025，浏览：
600 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-5386 | [1] | SEAL | |
| 2. | 2U-7158 | [1] | WASHER-THRUST | |
| 3. | 2U-7159 | [1] | WASHER-THRUST | |
| 4. | 461-2110 | [1] | WASHER-THRUST(105X170X5-MM THK) | |
| 5. | 2U-7316 | [1] | SPACER(70.09X88X9-MM THK) | |
| 6. | 3B-8485 | [2] | ELBOW | |
| 7. | 5P-7802 | [2] | BEARING | |
| 8. | 5U-7151 | [2] | CAP-GREASE | |
| 9. | 171-6063 | [1] | PIN-HITCH | |
| 10. | 174-5605 | [1] | PIN-HITCH | |
| 11. | 175-6920 | [2] | WASHER-SPECIAL | |
| 12. | 184-1243 | [1] | SPACER-SPECIAL | |
| 13. | 383-1812 | [1] | HITCH AS | |
| | 8T-4123 | [32] | WASHER(22X35X3.5-MM THK) | |
| | 8T-4187M | [32] | BOLT(M20X2.5X80-MM) | |
| | 156-8961 | [1] | PIVOT HEAD | |
| | 383-1811 | [1] | TUBE | |
| 14. | 170-8555M | [2] | BOLT(M16X2X90-MM) | |
| 15. | 1H-6227 | [2] | SEAL-O-RING | |
| 16. | 5K-4627 | [1] | RING-RETAINING | |
| 17. | 7X-2488M | [2] | BOLT(M20X2.5X160-MM) | |
| 18. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 19. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 20. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
