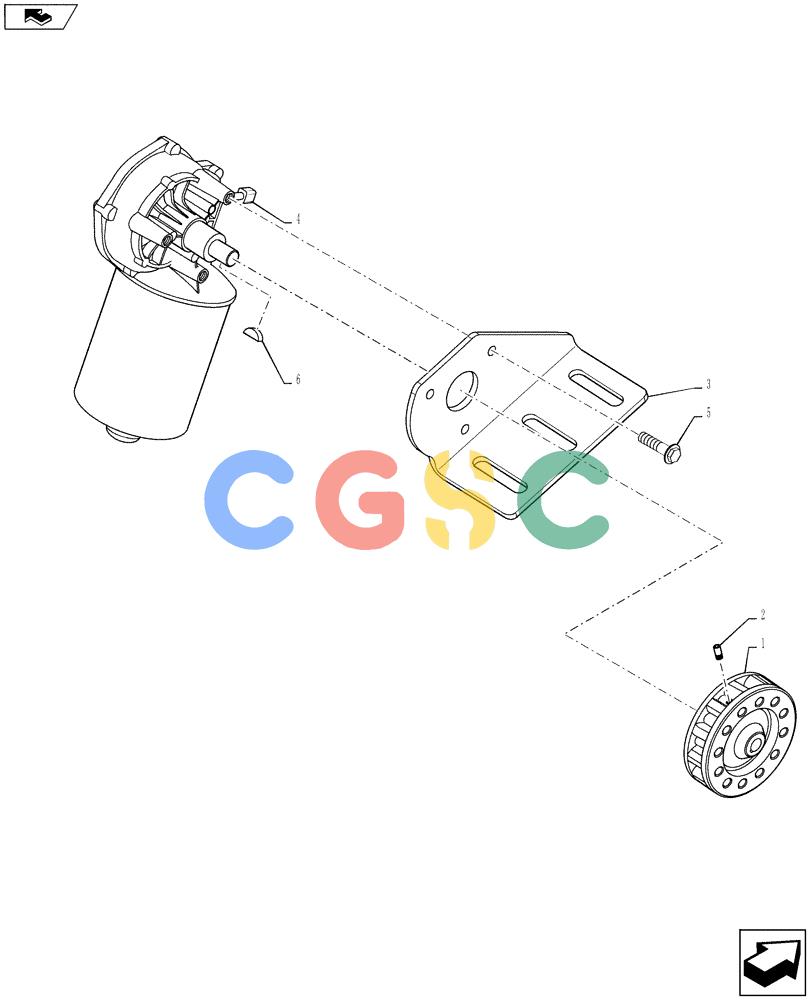

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.170.AA[03]) - DUCKBILL, DRIVE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84521954
|
[1] |
GEAR
|
NH
Duckbill Drive Superseded by part number: 47475888
|
| 2. |
80974
|
[1] |
SET SCREW,Hex Soc, #10-24 x 1/2"
|
NH
|
| 3. |
84374956
|
[1] |
ANGLE
|
PLO
|
| 4. |
84807563
|
[1] |
ELECTRIC MOTOR
|
ZED
|
| 4. |
84807563R
|
[1] |
REMAN-ELECTRIC MOTOR
|
ZED
|
| 4. |
84807563C
|
[1] |
CORE-ELECTRIC MOTOR
|
ZED
Return Number
|
| 5. |
9804255
|
[3] |
BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 6. |
84041731
|
[1] |
WOODRUFF KEY,5mm W x 6.5mm H x 16mm L
|
ZED
|
