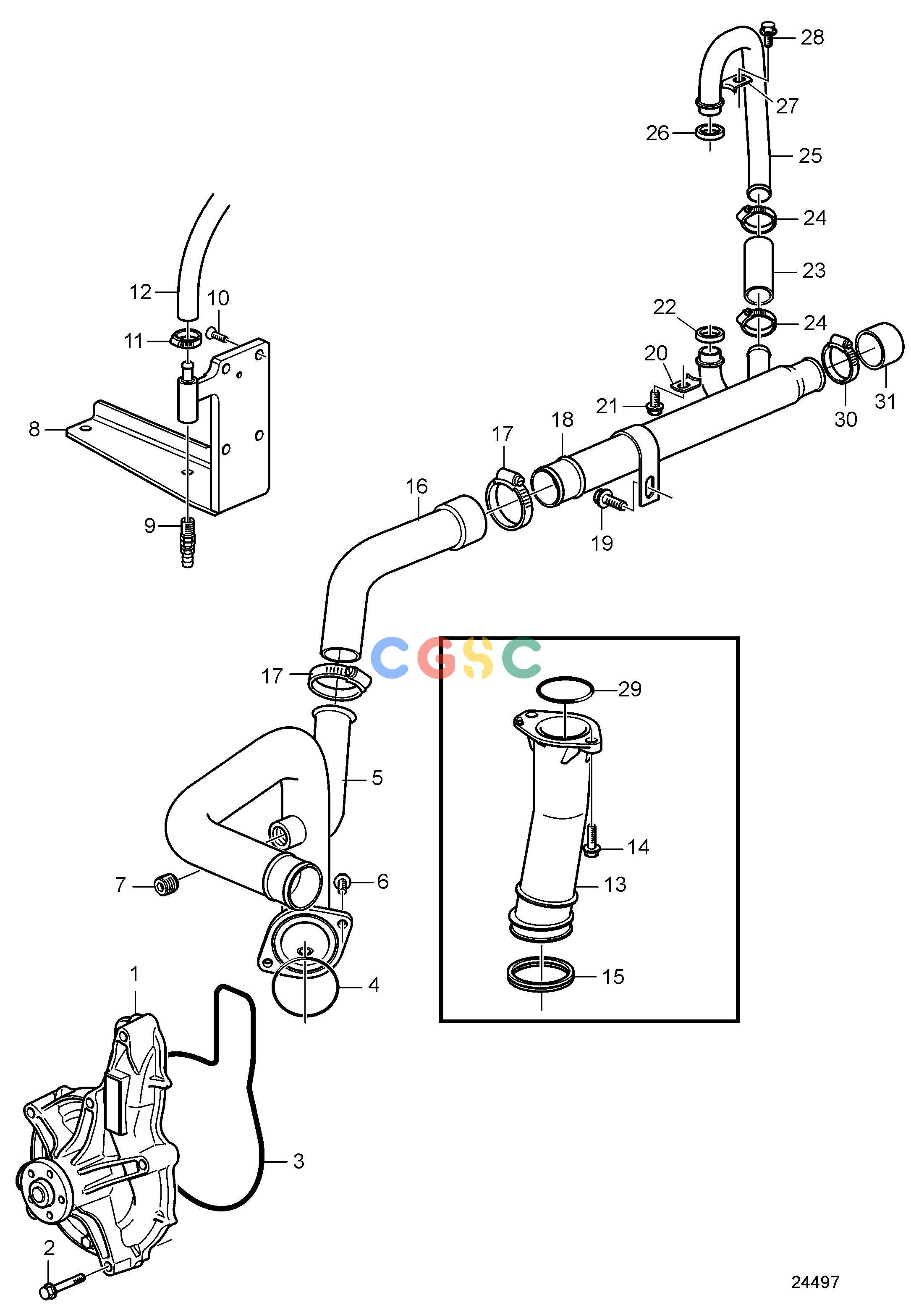

沃尔沃零件查询D16C-A MH; D16C-B MH; D16C-C MHCooling SystemWater Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20744939
|
[1] |
Pump unit
|
|
| 1. |
3801102
|
[1] |
Coolant pump
|
|
| 1. |
21228793
|
[1] |
Pump unit
|
|
| 1. |
21468471
|
[1] |
Pump unit
|
|
| 1. |
22195450
|
[1] |
Pump unit
|
SN-2016101135
|
| 1. |
22902431
|
[1] |
Pump unit
|
SN2016101136-
|
| 1. |
3801741
|
[1] |
Coolant pump, exch
|
|
| 2. |
994386
|
[6] |
Flange screw
|
|
| 3. |
8131097
|
[1] |
Rubber moulding
|
|
| 3. |
21103569
|
[1] |
Rubber moulding
|
SN2016461817-
|
| 4. |
975675
|
[1] |
O-ring
|
|
| 5. |
3888302
|
[1] |
Water pipe
|
|
| 6. |
984734
|
[2] |
Flange screw
|
|
| 7. |
968146
|
[1] |
Plug
|
|
| 8. |
7746510_034
|
|
Bracket, air filter
|
|
| 9. |
949918
|
[1] |
Shut-off cock
|
|
| 10. |
969842
|
[4] |
Six point socket scr
|
|
| 11. |
961663
|
[1] |
Hose clamp
|
|
| 12. |
|
|
|
For expansion tank.
|
| 13. |
21420336
|
[1] |
Connection pipe
|
|
| 14. |
984734
|
[2] |
Flange screw
|
|
| 15. |
20799996
|
[1] |
Sealing ring
|
|
| 16. |
3888297
|
[1] |
Hose
|
(3808192)
|
| 17. |
961671
|
[2] |
Hose clamp
|
|
| 18. |
3807119
|
[1] |
Water pipe
|
|
| 19. |
984734
|
[1] |
Flange screw
|
|
| 20. |
1546531
|
[1] |
Lock brace
|
|
| 21. |
944926
|
[1] |
Flange screw
|
|
| 22. |
1547252
|
[1] |
Sealing ring
|
|
| 23. |
3808198
|
[1] |
Hose
|
|
| 24. |
961666
|
[2] |
Hose clamp
|
|
| 25. |
3807254
|
[1] |
Coolant pipe
|
|
| 26. |
1547252
|
[1] |
Sealing ring
|
|
| 27. |
1546531
|
[1] |
Lock brace
|
|
| 28. |
944926
|
[1] |
Flange screw
|
|
| 29. |
20818346
|
[1] |
Gasket
|
Repl 1pcs oring and 1pcs pipe
|
| 30. |
961670
|
[1] |
Hose clamp
|
KC
|
| 31. |
424543
|
[1] |
Rubber plug
|
KC
|
