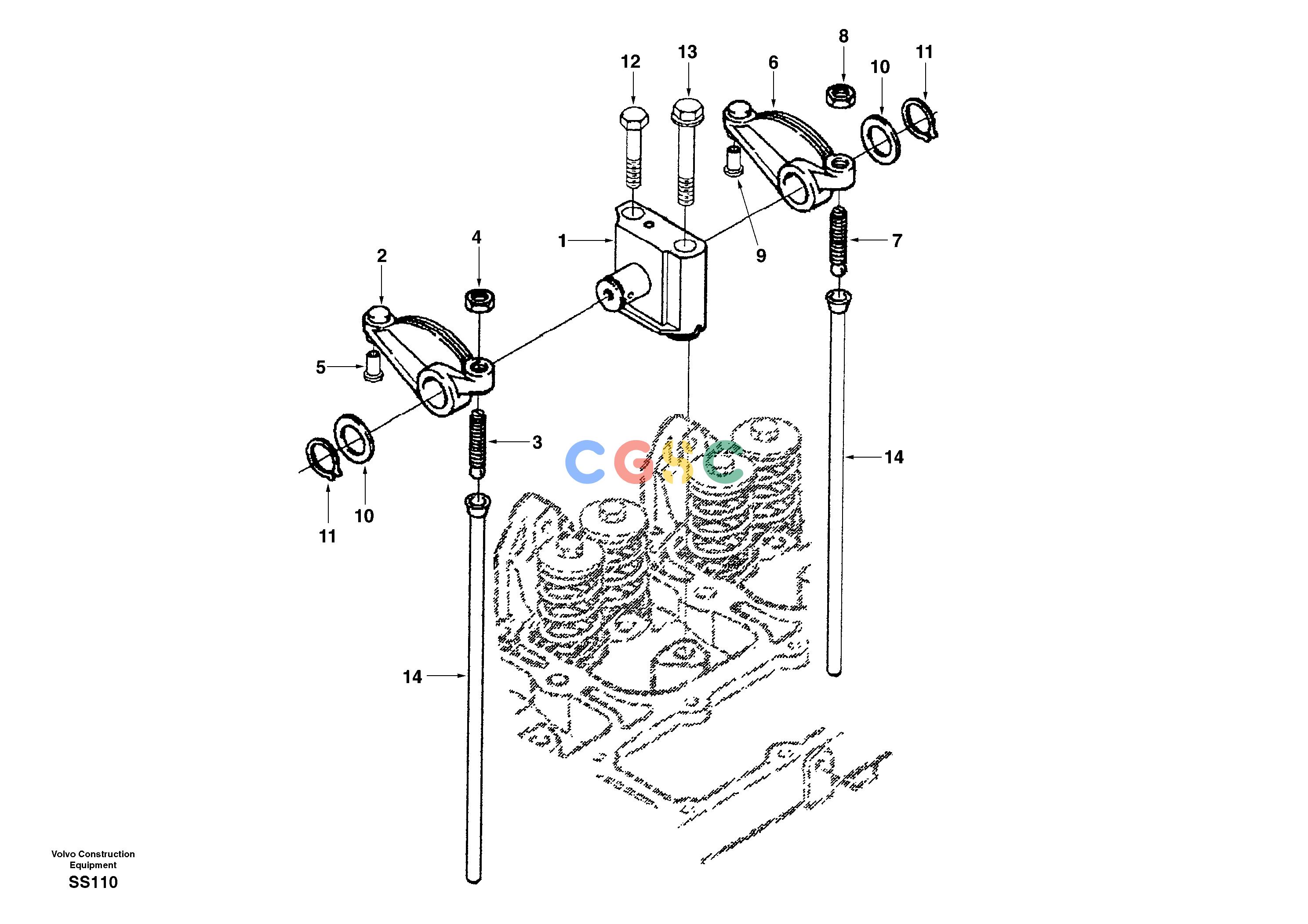

沃尔沃零件查询EW130 Rocker armNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3922488
|
[6] |
Support
|
|
| 2. |
SA3910811
|
[6] |
Rocker Arm
|
INTAKE
|
| 3. |
SA3934086
|
[1] |
Screw
|
|
| |
SA3934086
|
[1] |
Screw
|
|
| 4. |
SA3927692
|
[1] |
Nut
|
|
| 5. |
SA3900705
|
[1] |
Insert
|
|
| 6. |
SA3910810
|
[6] |
Rocker Arm
|
EXHAUST
|
| 7. |
SA3934086
|
[1] |
Screw
|
|
| |
SA3934086
|
[1] |
Screw
|
|
| 8. |
SA3927692
|
[1] |
Nut
|
|
| 9. |
SA3900705
|
[1] |
Insert
|
|
| 10. |
SA3900245
|
[12] |
Washer
|
|
| 11. |
SA3900242
|
[12] |
Ring
|
|
| 12. |
SA3901221
|
[6] |
Bolt
|
|
| 13. |
SA3920781
|
[6] |
Bolt
|
|
| 14. |
SA3284377
|
[12] |
Bar
|
|
