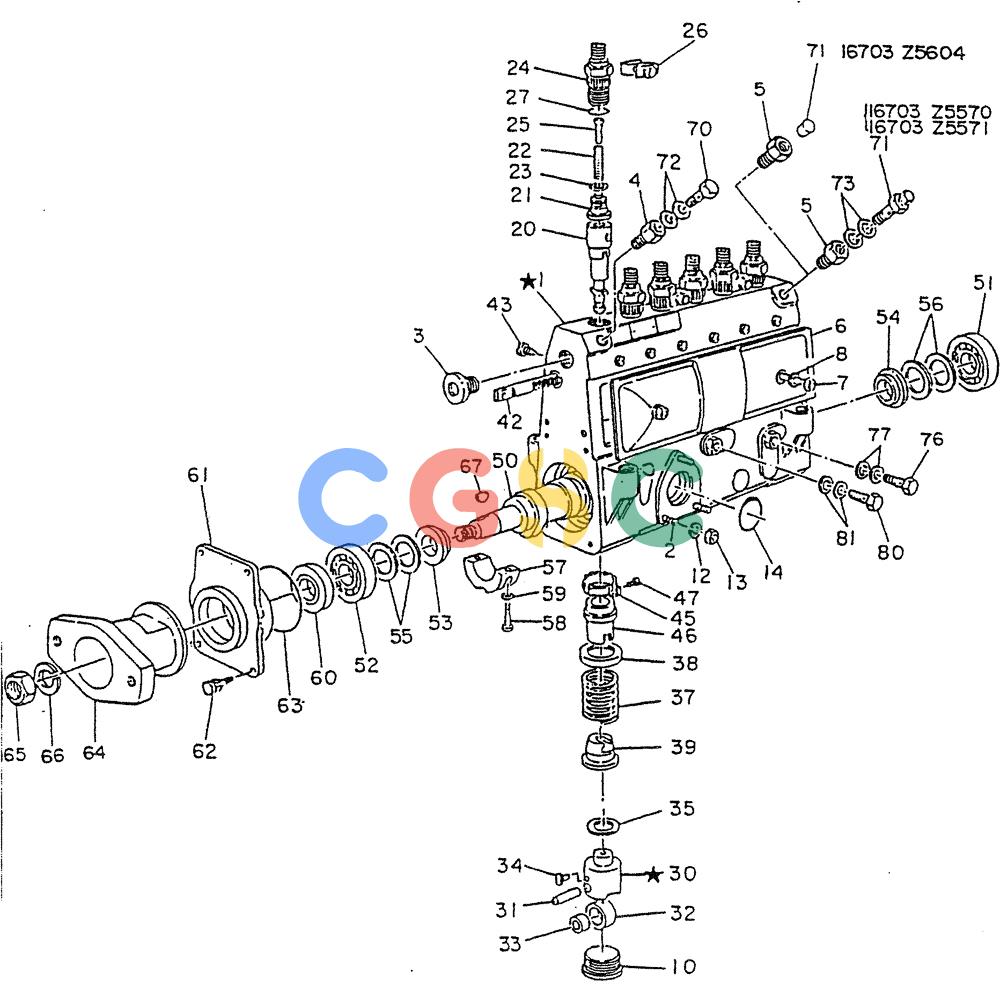

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-81. | VG16703Z5570 | [1] | PUMP-INJECTION,FOR A1 ONLY | |
| 1-81. | VG16703Z5571 | [1] | PUMP-INJECTION,FOR A2 ONLNY | |
| 1-81. | VG16703Z5604 | [1] | PUMP-INJECTION,FOR A3 ONLY | |
| 1-5. | VG16702Z9007 | [1] | HOUSING ASSY | |
| 2. | VG1672937500 | [3] | STUD | |
| 3. | VG16714Z9003 | [1] | PLUG | |
| 4. | VG16712Z9000 | [1] | ADAPTER | |
| 5. | VG1670599000 | [1] | ADAPTER | |
| 6. | VG16744Z9002 | [1] | KNIFE COVER | KOBCOVER |
| 7. | VG1672337503 | [2] | SCREW | KOBSCREW Superseded by part number: 76602279 |
| 8. | VG1671637500 | [2] | GASKET | KOBGASKET Superseded by part number: 76602277 |
| 10. | VG1671499001 | [6] | PLUG,FOR A1,A2 ONLY | |
| 10. | VG16842Z9000 | [6] | PLUG,FOR A3 ONLY | |
| 12. | VG1926037502 | [3] | MASHER-SPRING | |
| 13. | VG0891120610 | [3] | NUT | KOBNUT |
| 14. | VG1927899014 | [1] | O-RING | KOBO-RING Superseded by part number: 76602421 |
| 20. | VG16760Z9009 | [6] | PLUNGER | KOBPLUNGER ASSY |
| 21. | VG16773Z9008 | [6] | HYDRAULIC VALVE | KOBDELIVERY VALVE,FOR A2 ONLY Superseded by part number: 76602349 |
| 21. | VG16773Z9006 | [6] | VALVE SEAT | KOBDELIVERY VALVE,FOR A1,A3 ONLY Superseded by part number: 16773Z9006 |
| 22. | VG16776Z9004 | [6] | SPRING,FOR A1,A3 ONLY | |
| 22. | VG16776Z9005 | [6] | SPRING | KOBSPRING,FOR A2 ONLY |
| 23. | VG16777Z9001 | [6] | GASKET | KOBGASKET Superseded by part number: 76593683 |
| 24. | VG16778Z9003 | [6] | HOLDER | |
| 25. | VG16779Z9000 | [6] | STOPPER | |
| 26. | VG16761Z9000 | [3] | PLATE | |
| 27. | VG1927995000 | [6] | O-RING | KOBO-RING Superseded by part number: 76593700 |
| 30-34. | VG16745T8260 | [6] | TAPPET ASSY | |
| 31. | VG1674837500 | [6] | PIN | |
| 32. | VG1674199004 | [6] | ROLLER | |
| 33. | VG1674399003 | [6] | BUSH | |
| 34. | VG1675937500 | [6] | GUIDE | |
| 35. | VG16741T8260 | [1] | SHIM,T=0.30 | |
| 35. | VG16741T8261 | [1] | SHIM, T = 0.40 | |
| 35. | VG16741T8262 | [1] | SHIM, T=0.50 | |
| 35. | VG16741T8263 | [1] | SHIM, T=0.60 | |
| 35. | VG16741T8264 | [1] | SHIM, Ts0.70 | |
| 35. | VG16741T8265 | [1] | SHIM, T=0.80 | |
| 35. | VG16741T8266 | [1] | SHIM, T=0.90 | |
| 35. | VG1674199006 | [1] | SHIM. T=1.00 | |
| 35. | VG1674199008 | [1] | SHIM. T=1.10 | |
| 35. | VG1674199009 | [1] | SHIM, T=1.20 | |
| 35. | VG1674199010 | [1] | SHIM. T=1.30 | |
| 35. | VG1674199011 | [1] | SHIM. T=1.40 | |
| 35. | VG16741T8267 | [1] | SHIM. T=0.55 | |
| 35. | VG16741T8268 | [1] | SHIM. T=0.65 | |
| 35. | VG16741T8269 | [1] | SHIM. T=0.75 | |
| 35. | VG16741T8270 | [1] | SHIM, T=0.85 | |
| 35. | VG16741T8271 | [1] | SHIM. T=0.95 | |
| 35. | VG1674199012 | [1] | SHIM. T=1.05 | |
| 35. | VG1674199013 | [1] | SHIM, T=1.15 | |
| 35. | VG1674199014 | [1] | SHIM, T=1.25 | |
| 35. | VG1674199015 | [1] | SHIM, T=1.50 | |
| 35. | VG1674199016 | [1] | SHIM, T=1.60 | |
| 35. | VG16741T8272 | [1] | SHIM, T=0.20 | |
| 35. | VG16741T8273 | [1] | SHIM, Ts0.25 | |
| 35. | VG16741T8274 | [1] | SHIM, T=0.35 | |
| 35. | VG16741T8275 | [1] | SHIM, T=0.45 | |
| 35. | VG16741T8276 | [1] | SHIM, T=1.35 | |
| 35. | VG16741T8277 | [1] | SHIM, T=1.45 | |
| 35. | VG16741T8278 | [1] | SHIM, T=1.55 | |
| 37. | VG16741T8279 | [6] | SPRING PLUNGER | |
| 38. | VG1626937500 | [6] | SPRING SEAT | |
| 39. | VG16269T8260 | [6] | SPRING SEAT | |
| 42. | VG1672799006 | [1] | CONTROL RACK | |
| 43. | VG1672695000 | [1] | SCREW | |
| 45. | VG1676737500 | [6] | PINION | |
| 46. | VG1676637500 | [6] | CONTROL SLEEVE | |
| 47. | VG1676837500 | [6] | SCREW | |
| 50. | VG16738Z9006 | [1] | CAMSHAFT | |
| 51. | VG1673999001 | [1] | BEARING | |
| 51. | VG1673299002 | [1] | BEARING | |
| 52. | VG16739Z9002 | [1] | BEARING | |
| 52. | VG1673290000 | [1] | BALL BEARING | KOBHEARING |
| 53. | VG16740Z9003 | [1] | RING | |
| 54. | VG1674037500 | [1] | RING | |
| 55. | VG16785Z9008 | [1] | SHIM, T=0.10 | |
| 55. | VG16785Z9009 | [1] | SHIM, T=0.12 | |
| 55. | VG167B5Z9010 | [1] | SHIM, T=0.14 | |
| 55. | VG16785Z9011 | [1] | SHIM, T=0.l6 | |
| 55. | VG16785Z9012 | [1] | SHIM, T=0.18 | |
| 55. | VG16741Z9013 | [1] | SHIM, T=0.30 | |
| 55. | VG16741Z9014 | [1] | SHIM, T=0.50 | |
| 55. | VG16741Z9015 | [1] | SHIM, T=1.00 | |
| 56. | VG1674137500 | [1] | SHIM, T=0.10 | |
| 56. | VG1674137501 | [1] | SHIM, T=0.12 | |
| 56. | VG1674137502 | [1] | SHIM, T=0.14 | |
| 56. | VG1674137503 | [1] | SHIM, T=0.16 | |
| 56. | VG1674137504 | [1] | SHIM, T = 0.18 | |
| 56. | VG1674137505 | [1] | SHIM, T=0.50 | |
| 56. | VG16741Z9000 | [1] | SHIM, T=1.00 | |
| 56. | VG1674137506 | [1] | SHIM» T=0.30 | |
| 56. | VG16741Z9001 | [1] | SHIM,T=0.70 | |
| 56. | VG1674137509 | [1] | SHIM, T=1.40 | |
| 57. | VG1675499003 | [1] | CENTER BEARING | |
| 58. | VG1679161500 | [2] | SCREW | |
| 59. | VG1679261500 | [2] | GASKET | |
| 60. | VG1678799004 | [1] | OIL SEAL | |
| 61. | VG16744Z9003 | [1] | COVER | |
| 62. | VG1675437501 | [4] | BOLT | |
| 63. | VG1678699005 | [1] | O-RING | KOBO-RING |
| 64. | VG16725Z9001 | [1] | FUEL INJECTION PUMP | KOBCOUPLING |
| 65. | VG1687590000 | [1] | NUT | |
| 66. | VG1687490000 | [1] | SPRING WASHER | |
| 67. | VG1678390000 | [1] | WOODRUFF KEY | |
| 70. | VG1675399007 | [1] | EYE BOLT | |
| 71. | VG16714Z9004 | [1] | PLUG,FOR A3 ONLY | |
| 71. | VG16773Z9001 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE OVER FLOW VALVE,FOR A1,A2 ONLY |
| 72. | VG1666237500 | [2] | GASKET | |
| 73. | VG1666237500 | [2] | GASKET | |
| 76. | VG1675399007 | [1] | EYE BOLT | |
| 77. | VG1666237500 | [2] | GASKET | |
| 80. | VG1675737500 | [1] | EYE BOLT EYE BOLT | EYE BOLT EYE BOLT |
| 81. | VG1677899001 | [2] | GASKET GASKET | GASKET GASKET |
