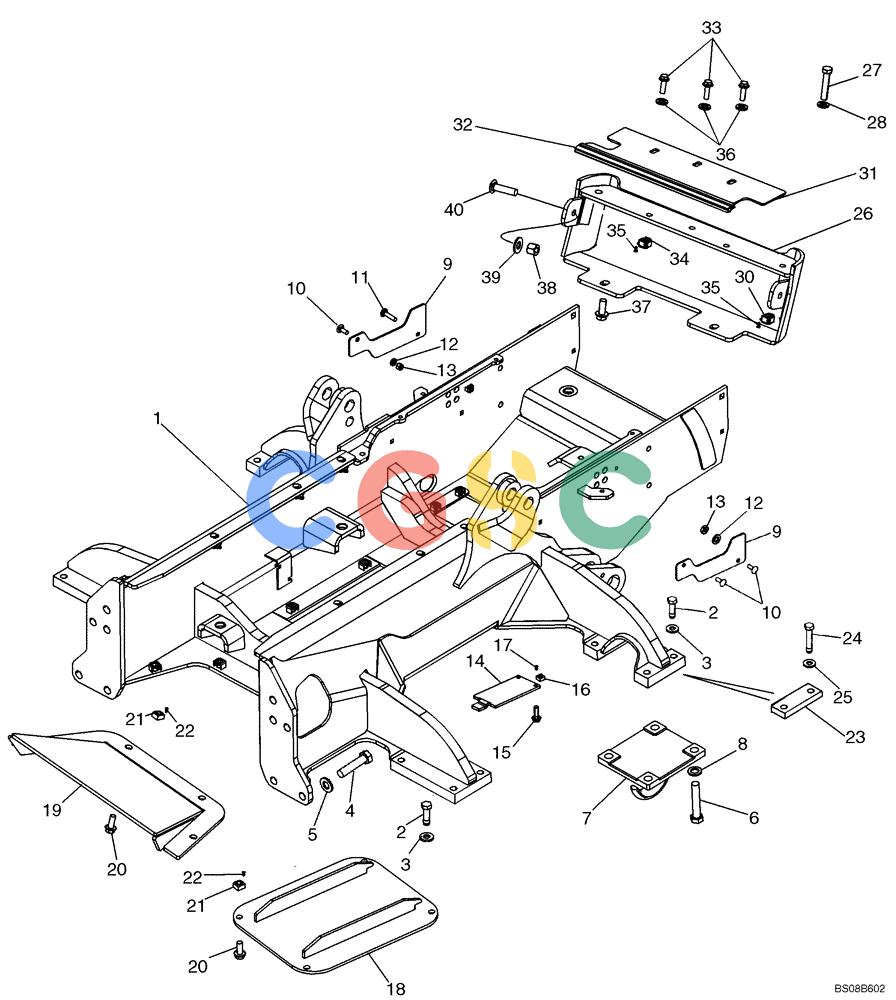

| 1. | 87598808 | [1] | FRAME ASSY | BURFRAME ASSY., Chassis; Lower; 1575 mm (62 inch) Gauge Extended Long Track (XLT) Models Superseded by part number: 87598798 |
| 1A. | 87598809 | [1] | FRAME ASSY | BURFRAME ASSY., Chassis; Lower; 1778 mm (70 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Not Illustrated Superseded by part number: 87598805 |
| 2. | 410-91240 | [16] | BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8 | CAS |
| 3. | 496-41081 | [16] | WASHER,13/16" x 1 3/4" x .219", HDN | CAS Superseded by part number: 87326714 |
| 4. | 410-91640 | [10] | BOLT,Hex, 1" - 8 x 2 1/2", Gr 8 | CAS |
| 5. | 496-31106 | [10] | WASHER,1 1/16" x 2" x .219", HDN | CAS Superseded by part number: 87024780 |
| 6. | 627-20060 | [4] | BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd | CASUsed With Ref 7 Superseded by part number: 9843495 |
| 7. | 450473A1 | [1] | HOOK | BURTowing |
| 8. | 896-11020 | [4] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS Superseded by part number: 86625260 |
| 9. | 86984811 | [2] | FIXING PLATE | CASRetaining Plate |
| 10. | 86512446 | [3] | CARRIAGE BOLT,M10X30 8.8 ZND | NH |
| 11. | 811-10035 | [1] | CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8 | BUR Superseded by part number: 707700560 |
| 12. | 896-11010 | [4] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 13. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 14. | 87601235 | [1] | GUARD ASSY. | BURPLATE, COVER, Oil Drain Superseded by part number: 87493322 |
| 15. | 857-12035 | [2] | BOLT,Hvy Hex, M12 x 35mm, Cl 10.9 | CAS |
| 16. | 87447306 | [2] | SQUARE NUT | CAS |
| 17. | 336371A1 | [2] | PIN | CASNut Retainer |
| 18. | 87435889 | [1] | PAN ASSY. | CASCenter |
| 19. | 87435885 | [1] | PAN | CASRear |
| 20. | 857-16040 | [8] | BOLT,Hvy Hex, M16 x 40mm, Cl 10.9 | CAS Superseded by part number: 87495304 |
| 21. | 405737A2 | [8] | SQUARE NUT | BUR |
| 26. | 87617126 | [1] | PLATE | BURPLATE ASSY. |
| 27. | 86577946 | [2] | BOLT,M16 x 2.0 x 90.8mm, Cl 0.9 | FAR |
| 28. | 896-11016 | [2] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | IH Superseded by part number: 86625266 |
| 31. | 87733790 | [1] | PLATE | BURPLATE, Lower Radiator; Used With Front Bumper Superseded by part number: 84376545 |
| 32. | 87731498 | [1] | SEAL | BURSEAL, RUBBER |
| 33. | 627-12040 | [3] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 36. | 896-11012 | [3] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 37. | 555-135 | [2] | BOLT,Hvy Hex, M16 x 50mm, Cl 10.9 | CAS |
| 38. | 832-10412 | [2] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 39. | 895-15012 | [2] | WASHER,M12 x 28 x 2.5 | IH Superseded by part number: 86625254 |
| 40. | 811-12050 | [2] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8 | CAS Superseded by part number: 334682 |
