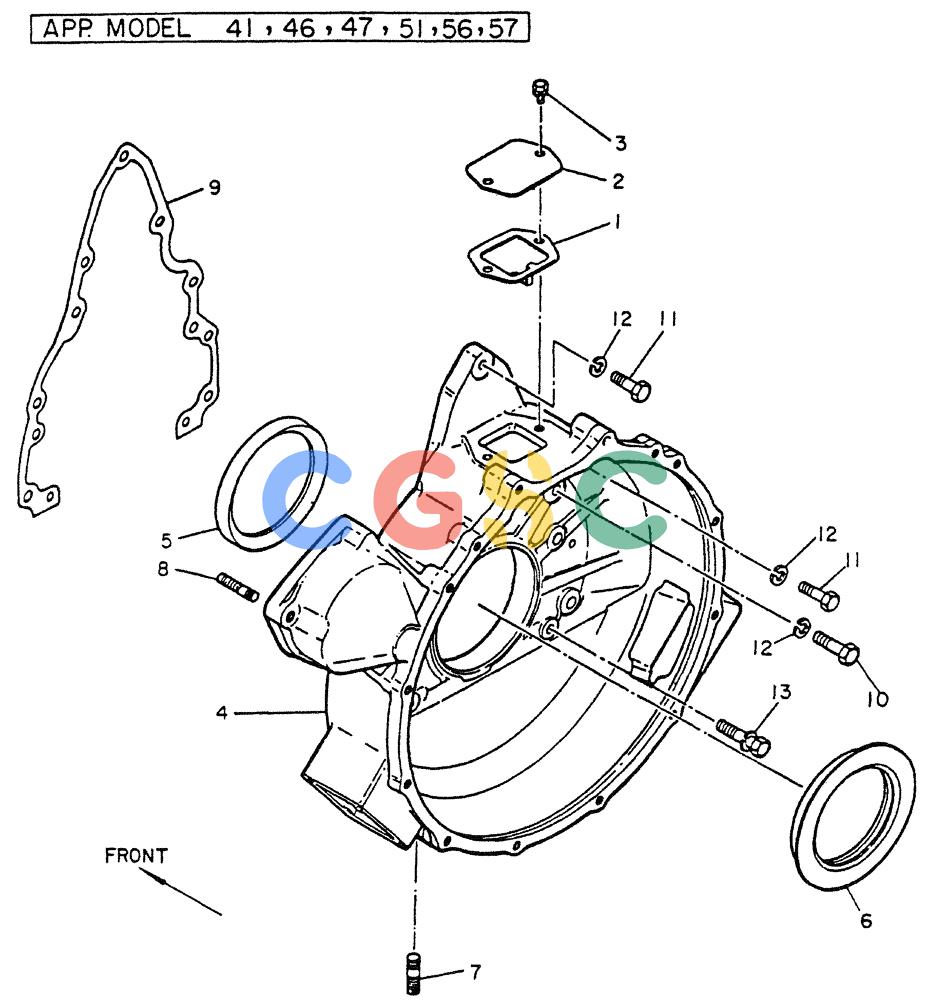

神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (01-010[01]) - HOUSING-FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
866 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG13046Z5000 | [1] | POINTER | KOBPOINTER,FOR 71,72,76,81 ONLY |
| 1. | VG13046Z5500 | [1] | POINTER FOR 41, 46, 47, 51, 56, 57 ONLY | |
| 2. | VG1304790000 | [1] | COVER COVER-POINTER | COVER COVER-POINTER |
| 3. | VG0811082062 | [2] | BOLT | KOBBOLT,W/WASHER |
| 4. | VG12331Z5006 | [1] | ENGINE FLYWHEEL | KOBHOUSING-FLYWHEEL, FOR 71,72,76,81 ONLY |
| 4. | VG12331Z5007 | [1] | MOTOR HOUSING | KOBHOUSING-FLYWHEEL, FOR 41,46,47,51,56,57 ONLY |
| 5. | VG12297J2001 | [1] | SLINGER | KOBSLINGER-OIL |
| 6. | VG12279Z5001 | [1] | OIL SEAL | KOBSEAL-OIL |
| 7. | VG0822482010 | [2] | STUD | KOBSTUD |
| 8. | VG0822723010 | [2] | STUD STUD | STUD STUD |
| 9. | VG12332Z5003 | [1] | GASKET GASKET-F/W HOUS | GASKET GASKET-F/W HOUS |
| 10. | VG0812124010 | [6] | BOLT | |
| 11. | VG0812123510 | [3] | BOLT, FOR 41,46,47,51,56,57 ONLY | |
| 12. | VG0891514210 | [9] | WASHER | KOBWASHER WASHER-SPRING Superseded by part number: VG089151421A |
| 13. | VG0812085028 | [2] | BOLT BOLT, W/WASH\u00a3R | BOLT BOLT, W/WASH£R |
