沃尔沃零件查询D16C-A MH; D16C-B MH; D16C-C MHElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
814 次

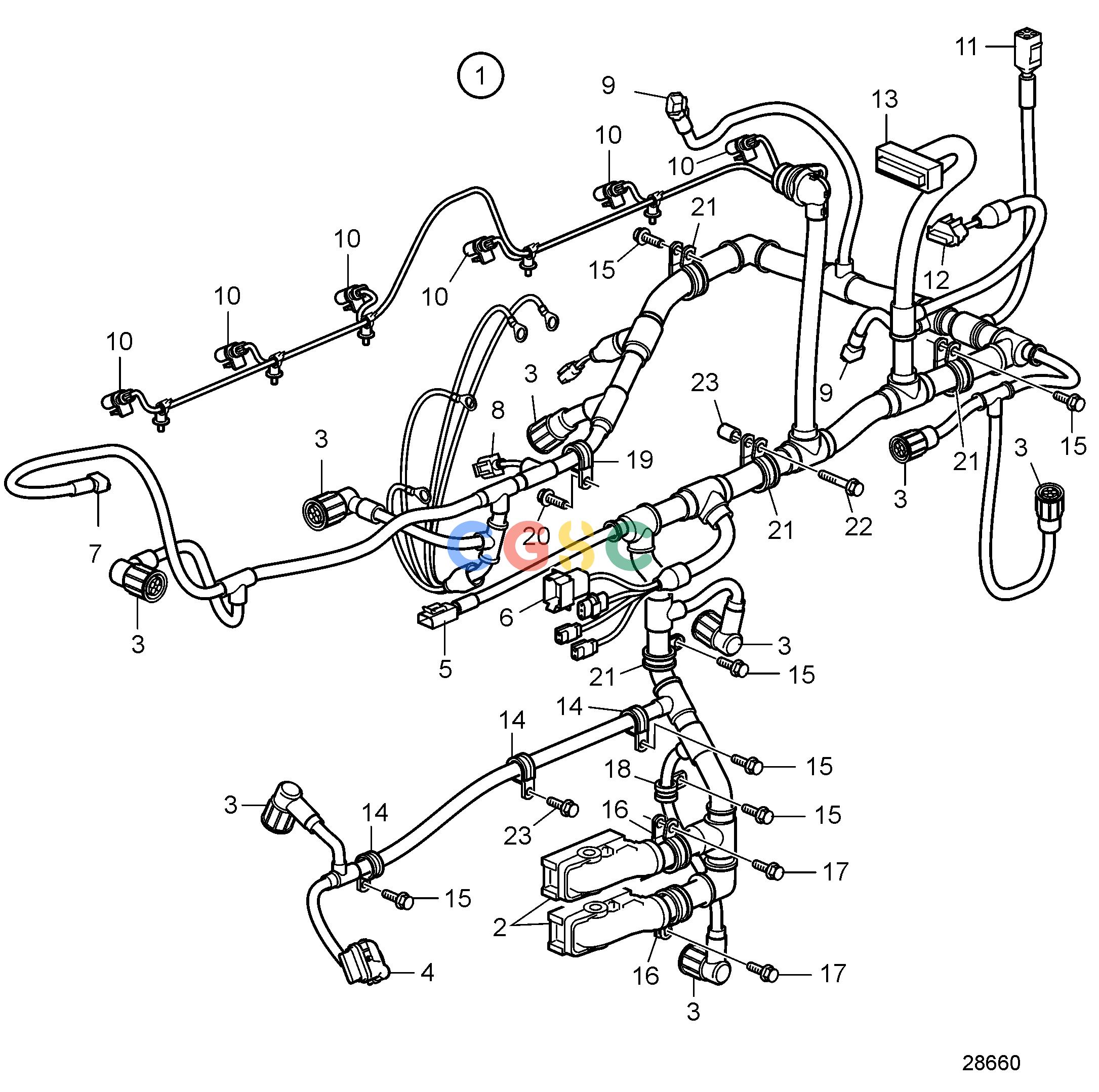

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889522
|
[1] |
Wiring harness
|
|
| 2. |
7746510_071
|
|
Contact
|
|
| 3. |
3589939
|
[8] |
Connector
|
Replaced by 984849
|
| 3. |
984849
|
[8] |
Housing
|
|
| 3. |
3888501
|
[5] |
Adapter, 90 Degrees
|
Replaced by 3985621
|
| 3. |
3985621
|
[5] |
Adapter, 90 Degrees
|
|
| 3. |
7746510_106
|
|
Adapter 180 Degrees (straight)
|
|
| 3. |
3985620
|
[3] |
Adapter, 180 Degrees (straight)
|
|
| 3. |
3589991
|
[1] |
Cable terminal
|
Replaced by 984849, 3985621, 3985620, 984846, 970771, 970772
|
| 3. |
984846
|
[1] |
Cable terminal
|
|
| 3. |
3807021
|
[1] |
Sealing plug
|
Replaced by 970771
|
| 3. |
970771
|
[1] |
Cable seal
|
|
| 3. |
3807016
|
[1] |
Cable seal
|
Replaced by 970772
|
| 3. |
970772
|
[1] |
Cable seal
|
|
| 4. |
20429873
|
[1] |
Insulator cover
|
|
| 4. |
3986767
|
[1] |
Cable terminal
|
|
| 4. |
3944655
|
[1] |
Cable seal
|
|
| 4. |
970771
|
[4] |
Cable seal
|
|
| 5. |
1624477
|
[1] |
Housing
|
|
| 6. |
874114
|
[1] |
Housing
|
|
| 6. |
874033
|
[5] |
Cable terminal
|
|
| 6. |
874115
|
[1] |
Wedge
|
|
| 6. |
3114081
|
[1] |
Cable seal
|
|
| 6. |
874250
|
[2] |
Pin
|
|
| 7. |
874368
|
[1] |
Receptacle housing
|
|
| 7. |
881788
|
[2] |
Cable terminal
|
|
| 7. |
8155901
|
[3] |
Cable terminal
|
|
| 7. |
970772
|
[2] |
Cable seal
|
|
| 8. |
1624477
|
[1] |
Housing
|
|
| 9. |
874368
|
[2] |
Receptacle housing
|
|
| 9. |
881788
|
[4] |
Cable terminal
|
|
| 9. |
970772
|
[4] |
Cable seal
|
|
| 10. |
20409386
|
[6] |
Insulator
|
|
| 10. |
20375186
|
[12] |
Cable terminal
|
|
| 10. |
970773
|
[12] |
Cable seal
|
|
| 11. |
8142001
|
[1] |
Insulator
|
|
| 12. |
874456
|
[1] |
Receptacle housing
|
|
| 12. |
881788
|
[4] |
Cable terminal
|
|
| 12. |
970772
|
[4] |
Cable seal
|
|
| 12. |
948702
|
[1] |
Cable tie
|
|
| 12. |
11039397
|
[1] |
End sleeve
|
|
| 13. |
9148263
|
[1] |
Housing
|
|
| 13. |
970749
|
[6] |
Cable terminal
|
|
| 13. |
970773
|
[6] |
Cable seal
|
|
| 13. |
9148135
|
[20] |
Contact
|
|
| 13. |
9148107
|
[20] |
Seal
|
|
| 13. |
873632
|
[1] |
Protecting sleeve
|
|
| 14. |
949747
|
[3] |
Clamp
|
|
| 15. |
984733
|
[3] |
Flange screw
|
|
| 16. |
949997
|
[2] |
Clamp
|
|
| 17. |
984734
|
[2] |
Flange screw
|
|
| 18. |
949746
|
[1] |
Clamp
|
|
| 19. |
942810
|
[1] |
Clamp
|
|
| 20. |
994393
|
[1] |
Flange screw
|
|
| 21. |
947827
|
[3] |
Clamp
|
|
| 22. |
948871
|
[1] |
Spacer washer
|
|
| 23. |
984735
|
[1] |
Flange screw
|
|
