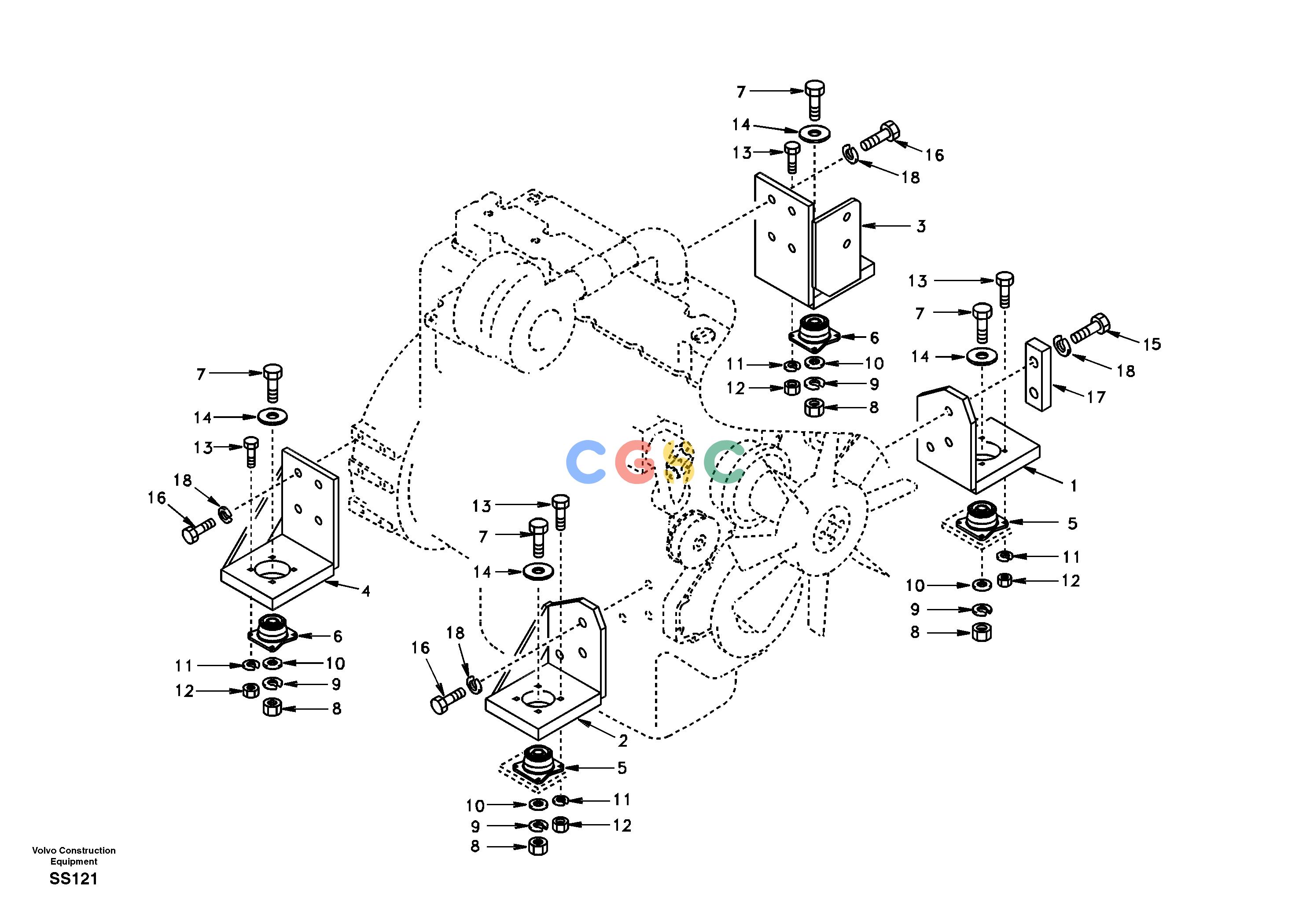

沃尔沃零件查询EW130 Engine mountNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
249 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1112-00361
|
[1] |
Bracket
|
|
| 2. |
SA1112-00371
|
[1] |
Bracket
|
|
| 3. |
SA1112-00380
|
[1] |
Bracket
|
|
| 4. |
SA1112-00390
|
[1] |
Bracket
|
|
| 5. |
VOE14603124
|
[2] |
Cushion
|
FRONT
|
| 6. |
VOE14603125
|
[2] |
Cushion
|
REAR
|
| 7. |
VOE980466
|
[4] |
Hexagon screw
|
|
| 8. |
SA9131-11600
|
[4] |
Lock nut
|
|
| 9. |
VOE955926
|
[4] |
Spring washer
|
|
| 10. |
SA14880474
|
[4] |
Washer
|
|
| 11. |
VOE955922
|
[16] |
Spring washer
|
|
| 12. |
VOE983304
|
[16] |
Hexagon nut
|
|
| 13. |
VOE993025
|
[16] |
Hexagon screw
|
|
| 14. |
SA1112-00730
|
[4] |
Plate
|
SER NO 3001-3560
|
| |
SA1112-00830
|
[4] |
Plate
|
SER NO 3561-
|
| 15. |
VOE980755
|
[2] |
Hexagon screw
|
|
| 16. |
VOE993029
|
[12] |
Hexagon screw
|
|
| 17. |
SA1112-00550
|
[1] |
Plate
|
|
| 18. |
VOE955923
|
[14] |
Spring washer
|
|
