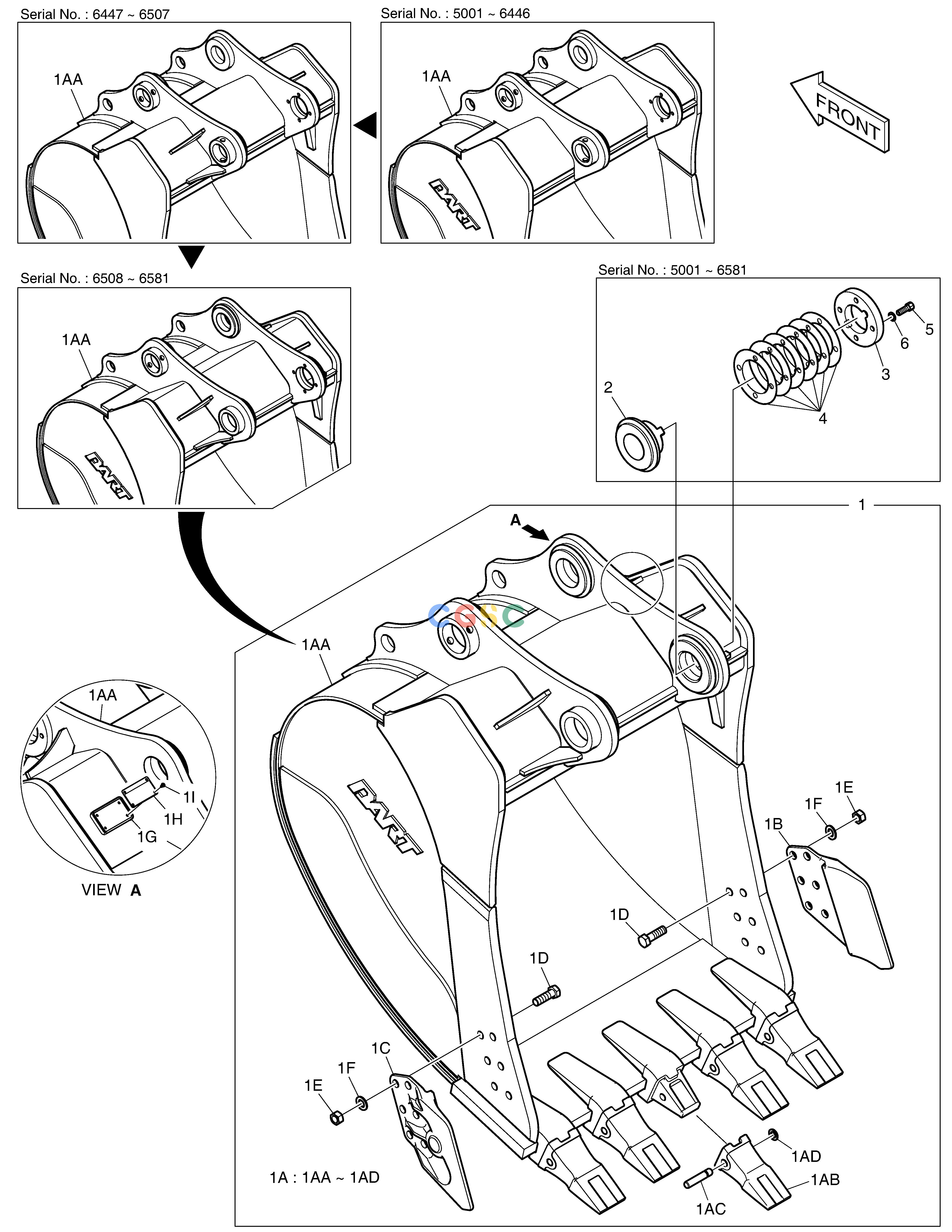

斗山零件查询BUCKET ASS'Y - 1.42m³(48") - SIDE PIN DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1012989
|
[-] |
BUCKET ASS'Y
|
|
| -. |
230104-00634
|
[-] |
|
|
| 1. |
K1012990
|
[1] |
BUCKET SUB ASS'Y-1.42m³
|
230104-00635
|
| 1. |
230104-00635
|
[1] |
|
230104-00635A
|
| 1. |
230104-00635A
|
[1] |
|
230104-00635B
|
| 1. |
230104-00635B
|
[1] |
|
|
| 1. |
230104-00635C
|
[1] |
|
|
| 1A. |
K1012991
|
[1] |
BUCKET;WITH TOOTH-1.42m³
|
|
| 1AA. |
K1012992
|
[1] |
BUCKET-1.42m³
|
230104-00637
|
| 1AA. |
230104-00637
|
[1] |
|
230104-00637A
|
| 1AA. |
230104-00637A
|
[1] |
|
230104-00637B
|
| 1AA. |
230104-00637B
|
[1] |
|
|
| 1AB. |
713-00034
|
[5] |
POINT;TOOTH
|
|
| 1AC. |
705-00006
|
[5] |
PIN;LOCKING
|
|
| 1AD. |
114-00246
|
[5] |
WASHER;LOCKING
|
|
| 1B. |
2713-6034A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 1C. |
2713-6035A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 1D. |
S0574961
|
[12] |
BOLT M24X3.0X80
|
|
| 1E. |
S4013333
|
[12] |
. NUT
|
|
| 1F. |
2114-1831A
|
[12] |
. WASHER
|
|
| 1G. |
110913-00289A
|
[1] |
|
|
| 1H. |
950209-04415A
|
[1] |
|
|
| 1I. |
DS0501007
|
[4] |
|
|
| 2. |
K1005253
|
[1] |
BUSH;FLANGE
|
|
| 3. |
K1005254B
|
[1] |
STOPPER
|
|
| 4. |
K1013571
|
[6] |
SHIM
|
|
| 5. |
S2221566
|
[4] |
BOLT
|
|
| 6. |
K1014251
|
[4] |
WASHER;HARDEN
|
|
