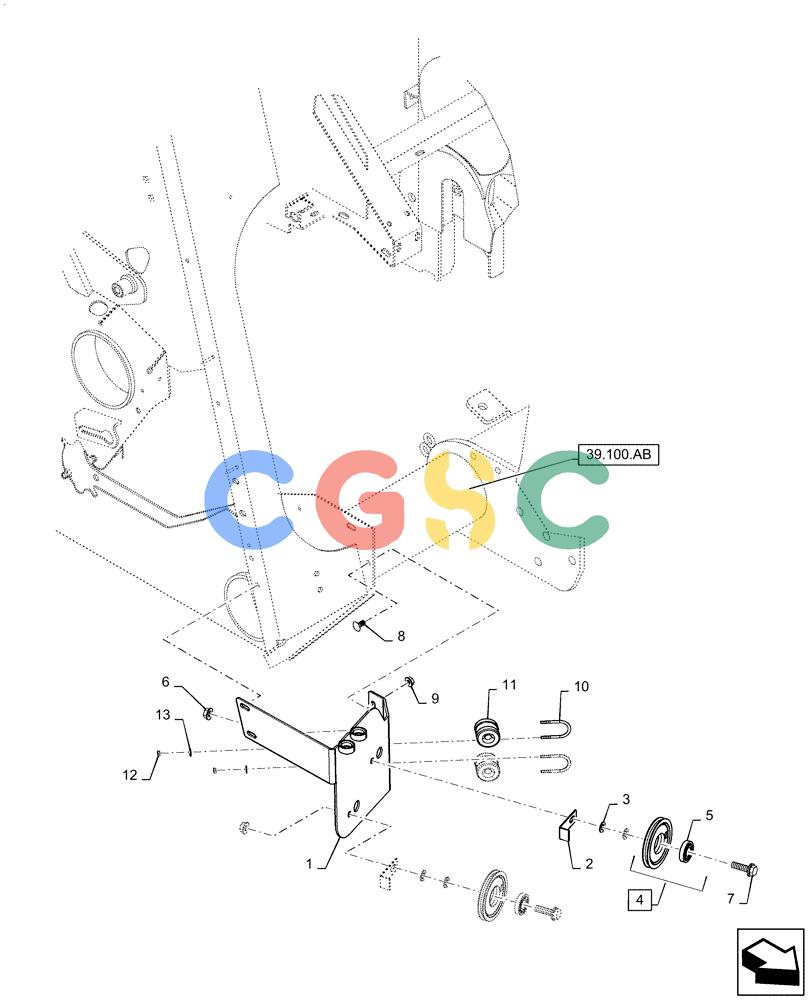

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.180.AK) - TWINE MOTION INDICATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
218 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47893954
|
[1] |
SUPPORT
|
NH
Twine Spinner
|
| 2. |
86629062
|
[2] |
GUIDE
|
NH
|
| 3. |
86511323
|
[4] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 4. |
87038785
|
[2] |
PULLEY ASSY.
|
NH
Incl 5
|
| 5. |
748669
|
[1] |
BALL BEARING,10mm ID x 30mm OD x 9mm W
|
NH
|
| 6. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 7. |
86511845
|
[2] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
| 8. |
86507486
|
[3] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 9. |
9804277
|
[3] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 10. |
28114
|
[2] |
U-BOLT
|
NH
, Start Serial: YFN189544
|
| 11. |
84298727
|
[2] |
GUIDE
|
PA
, Start Serial: YFN189544
|
| 12. |
87304
|
[4] |
NUT,#10-24
|
BEL
, Start Serial: YFN189544
|
| 13. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
, Start Serial: YFN189544
|
