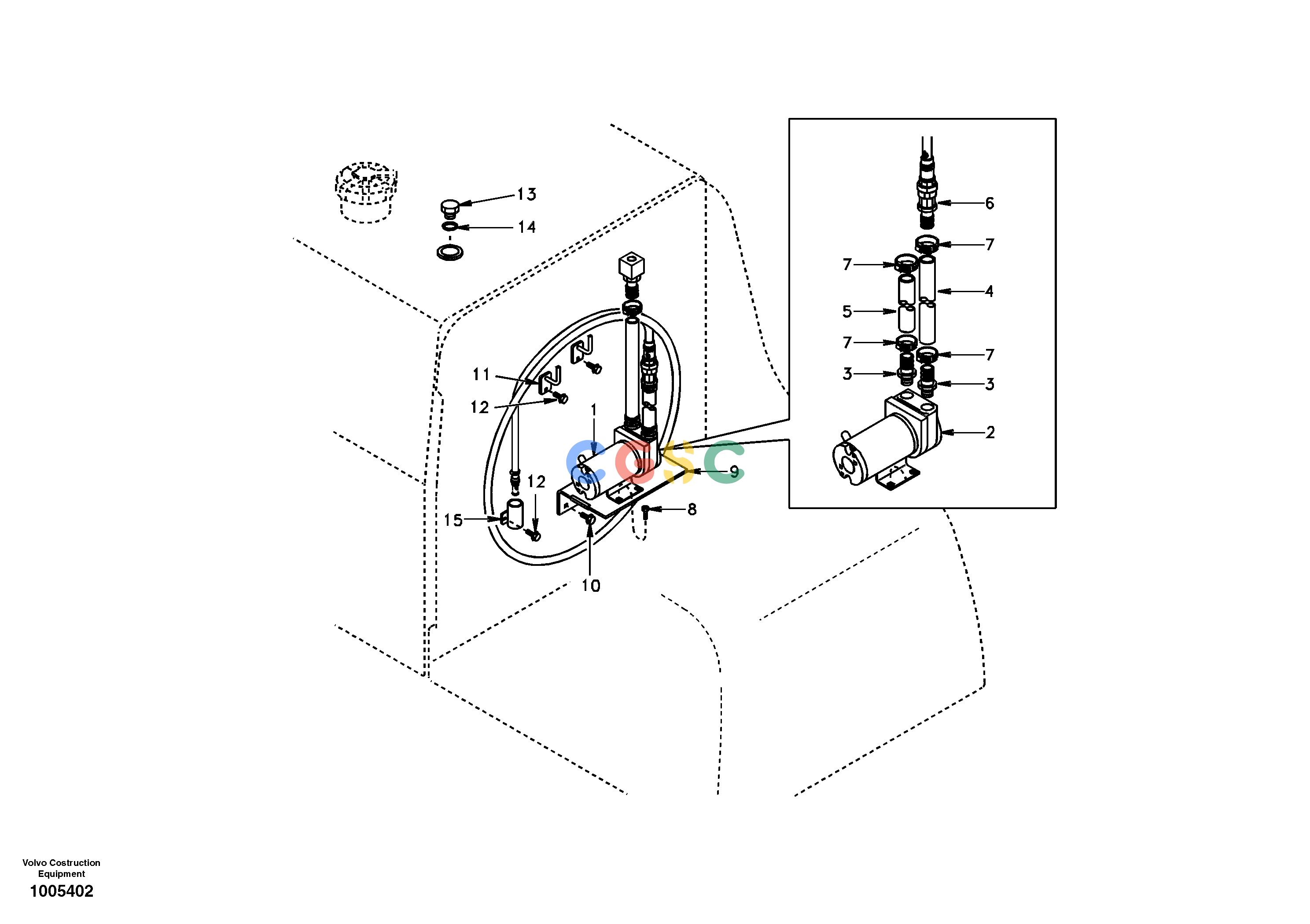

沃尔沃零件查询EW130 Fuel filling pumpNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1128-00420
|
[1] |
Fuel Fill Pump
|
SER NO 3001-3128
|
| |
VOE14511137
|
[1] |
Fuel Fill Pump
|
SER NO 3129-3384
|
| |
VOE14515291
|
[1] |
Fuel Fill Pump
|
SER NO 3385-3601
|
| |
VOE14517570
|
[1] |
Fuel Fill Pump
|
SER NO 3602-
|
| 2. |
SA1128-00270
|
[1] |
Fuel pump
|
SER NO 3001-3128
|
| |
SA1128-00640
|
[1] |
Fuel Fill Pump
|
SER NO 3129-3601
|
| |
VOE14517745
|
[1] |
Refuelling pump
|
SER NO 3602-
|
| 3. |
SA1128-00030
|
[2] |
Adapter
|
SER NO 3001-3601
|
| |
VOE14517747
|
[2] |
Adapter
|
SER NO 3602-
|
| 4. |
VOE14517749
|
[1] |
Hose
|
SER NO 3001-3384
|
| |
VOE14515171
|
[1] |
Inlet hose
|
SER NO 3385-3601
|
| |
VOE14517749
|
[1] |
Hose
|
SER NO 3602-
|
| 5. |
SA1128-00430
|
[1] |
Hose
|
SER NO 3001-3128
|
| |
SA1128-00280
|
[1] |
Hose
|
SER NO 3129-3384
|
| |
VOE14515294
|
[1] |
Hose
|
SER NO 3385-3601
|
| |
VOE14517751
|
[1] |
Hose
|
SER NO 3602-
|
| 6. |
SA1128-00060
|
[1] |
Valve
|
SER NO 3001-3601
|
| |
VOE14517753
|
[1] |
Valve
|
SER NO 3602-
|
| 7. |
SA1128-00310
|
[4] |
Clip
|
SER NO 3001-3601
|
| |
VOE14517754
|
[4] |
Clip
|
SER NO 3602-
|
| 8. |
VOE946934
|
[4] |
Flange screw
|
|
| 9. |
VOE14501406
|
[1] |
Bracket
|
|
| 10. |
VOE946441
|
[2] |
Flange screw
|
|
| 11. |
VOE14529313
|
[2] |
Stopping device
|
|
| 12. |
VOE946471
|
[3] |
Flange screw
|
|
| 13. |
VOE14529323
|
[1] |
Plug
|
|
| 14. |
VOE990581
|
[1] |
O-ring
|
|
| 15. |
VOE14500463
|
[1] |
Bracket
|
|
