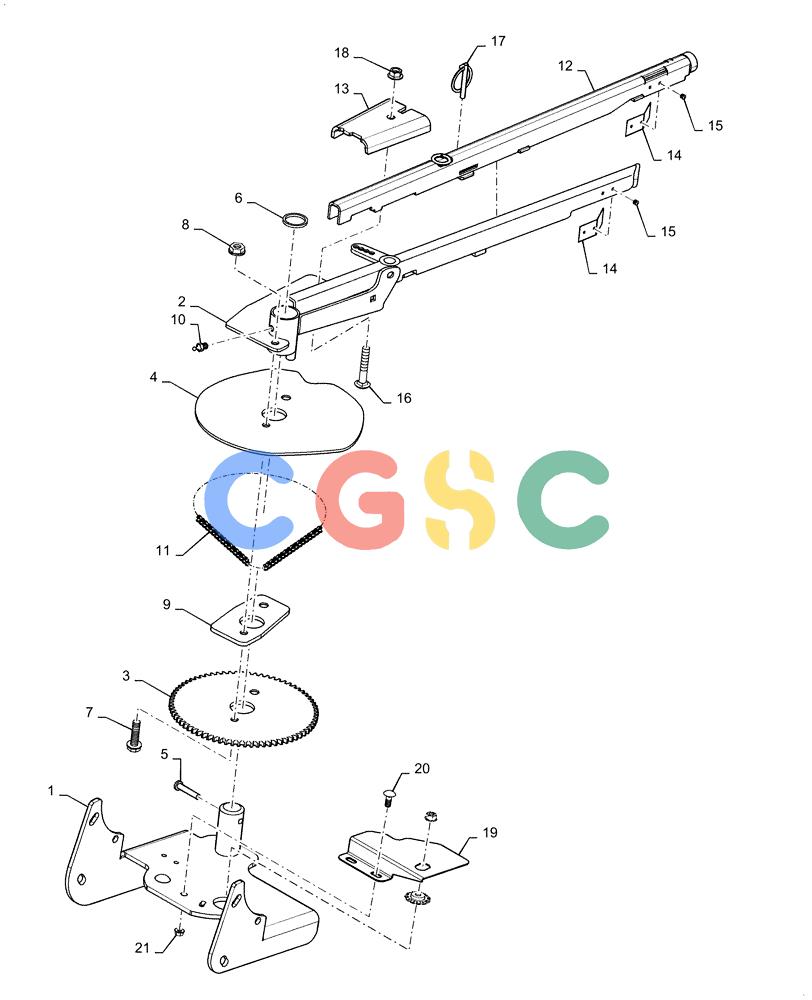

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (68.180.BO[02]) - TWINE PIVOT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84375042
|
[1] |
MOUNT
|
NH
Twine Arm, Serial Range: -YGN190280
|
| 1. |
47900203
|
[1] |
MOUNT
|
NH
Twine Arm, Start Serial: YGN19028
|
| 2. |
84410262
|
[1] |
SUPPORT
|
NH
Superseded by part number: 47930327
|
| 3. |
84247408
|
[1] |
SPROCKET,RC 35, 72T
|
PLO
|
| 4. |
84592195
|
[1] |
PLATE
|
NH
|
| 5. |
300595
|
[1] |
COTTER PIN,M4 x 40
|
WIN
Superseded by part number: 10733901
|
| 6. |
140109
|
[1] |
WASHER,31mm ID x 40mm OD x 2mm Thk
|
NH
|
| 7. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 8. |
9804278
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 9. |
47537037
|
[1] |
PLATE
|
PLO
|
| 10. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
|
| 11. |
84259286
|
[1] |
CHAIN,35, 83 Links x 3/8" = 31-1/8" L
|
NH
|
| 12. |
47495564
|
[1] |
ARM
|
NH
Twine, Serial Range: -YGN190280 Superseded by part number: 47929708
|
| 12. |
47929708
|
[1] |
ARM
|
NH
Twine, Start Serial: YGN190281
|
| 13. |
84283485
|
[1] |
ANGLE
|
NH
|
| 14. |
47922005
|
[2] |
LEAF SPRING
|
NH
|
| 15. |
86637656
|
[4] |
RIVET,Pop, 1/8" x .337"
|
FAR
|
| 16. |
84232472
|
[1] |
SCREW,BTN HD, M10 x 1.5 x 35mm, Cl 12.9
|
CUR
|
| 17. |
270184
|
[1] |
LINCH PIN,6.35mm OD
|
NH
|
| 18. |
86619802
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
PA
Superseded by part number: 87547587
|
| 19. |
47942822
|
[1] |
SHIELD
|
NH
Trash
|
| 20. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 21. |
9804277
|
[2] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
