神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (06-004[01]) - PUMP-WATER (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
550 次

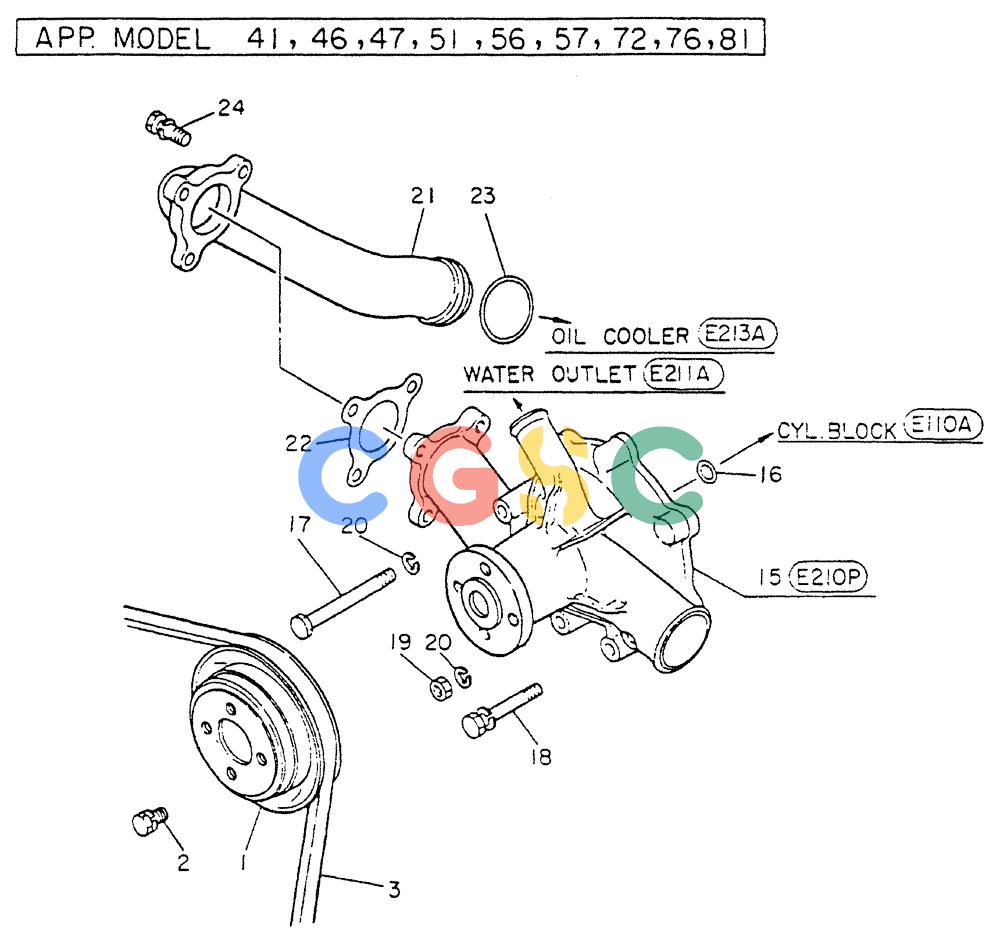

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG21051Z5013 | [1] | PULLEY W/PUMP PULLEY-W/PUMP | PULLEY W/PUMP PULLEY-W/PUMP |
| 2. | VG0811081662 | [4] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
| 3. | VG21140Z5018 | [1] | BELT, TRANSMISSION | KOBV BELT |
| 15. | VG21010Z5000 | [1] | WATER PUMP | KOBPUMP ASSY-WATER (INNER PARTS 06-005) |
| 16. | VG21074Z5000 | [1] | RUBBER RING | KOBO RING |
| 17. | VG0811088510 | [2] | BOLT BOLT | BOLT BOLT |
| 18. | VG0811086062 | [1] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
| 19. | VG0891110810 | [1] | NUT NUT | NUT NUT |
| 20. | VG0891513810 | [3] | WASHER SPRING WASHER-SPRING | WASHER SPRING WASHER-SPRING |
| 21. | VG21016Z5000 | [1] | PIPE-WATER, FOR 41,46,47,51,56,57,72,76,81 ONLY | |
| 21. | VG21016Z5502 | [1] | RIGID TUBE | KOBPIPE-WATER, FOR 71 ONLY |
| 22. | VG21015Z5000 | [1] | GASKET | KOBGASKET-PIPE |
| 23. | VG21725Z5020 | [1] | RUBBER RING | KOBO RING |
| 24. | VG0811082562 | [3] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
| 25. | VG0811085562 | [1] | BOLT BOLT, W/WASHER, FOR 71 ONLY | BOLT BOLT, W/WASHER, FOR 71 ONLY |
