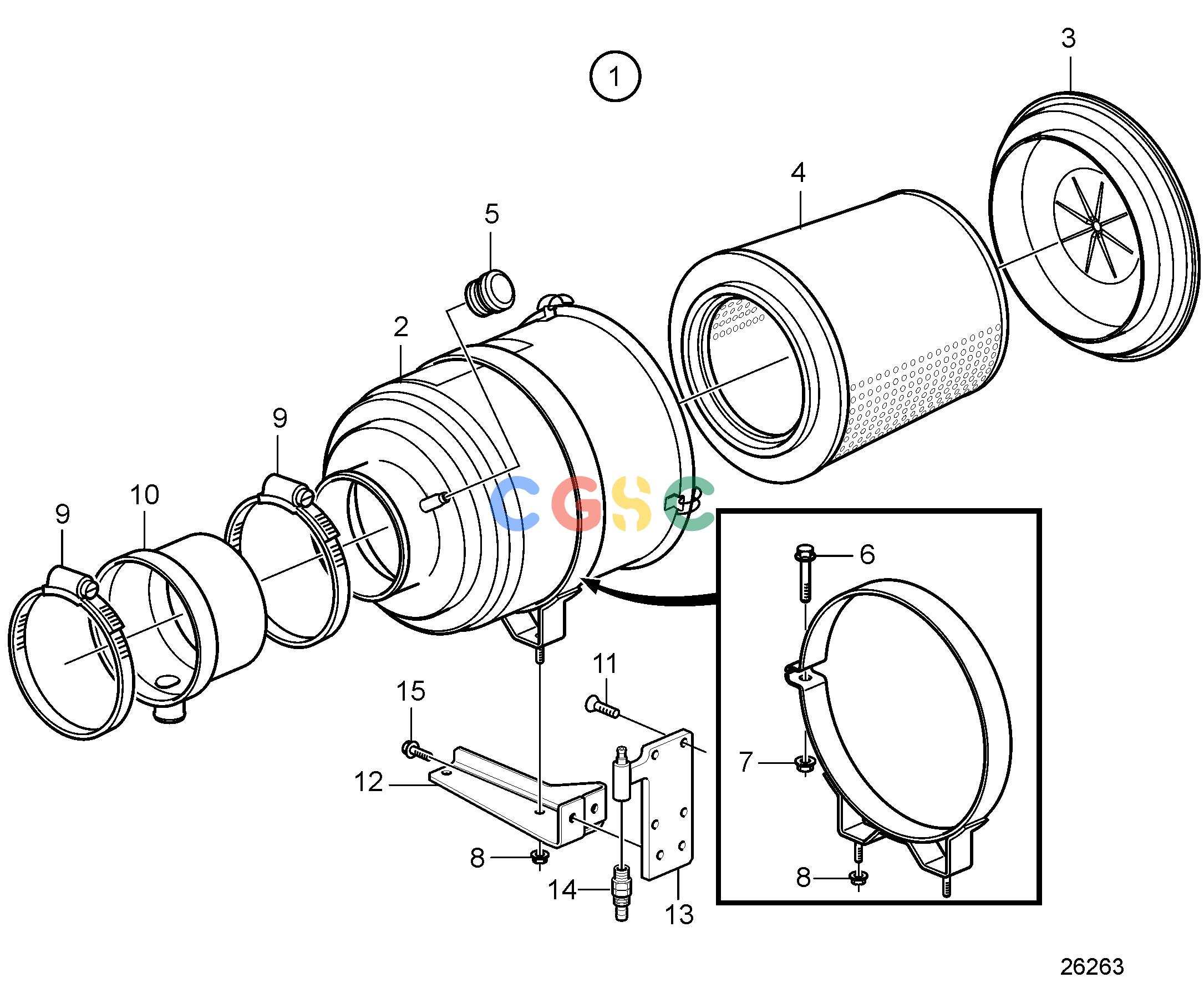

沃尔沃零件查询D16C-A MH; D16C-B MH; D16C-C MHIntake and Exhaust SystemAir FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
180 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21196916
|
[1] |
Air filter
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3885441
|
[1] |
Air filter insert
|
|
| 5. |
3828765
|
[1] |
Pressure drop indica
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
990940
|
[2] |
Flange nut
|
|
| 9. |
961907
|
[2] |
Hose clamp
|
|
| 10. |
3589027
|
[1] |
Rubber collar
|
|
| 11. |
969842
|
[4] |
Six point socket scr
|
|
| 12. |
21307146
|
[1] |
Bracket
|
|
| 13. |
21904550
|
[1] |
Cover
|
|
| 14. |
949918
|
[1] |
Shut-off cock
|
|
| 15. |
984752
|
[2] |
Flange screw
|
|
