神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (06-005) - PUMP-WATER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
744 次

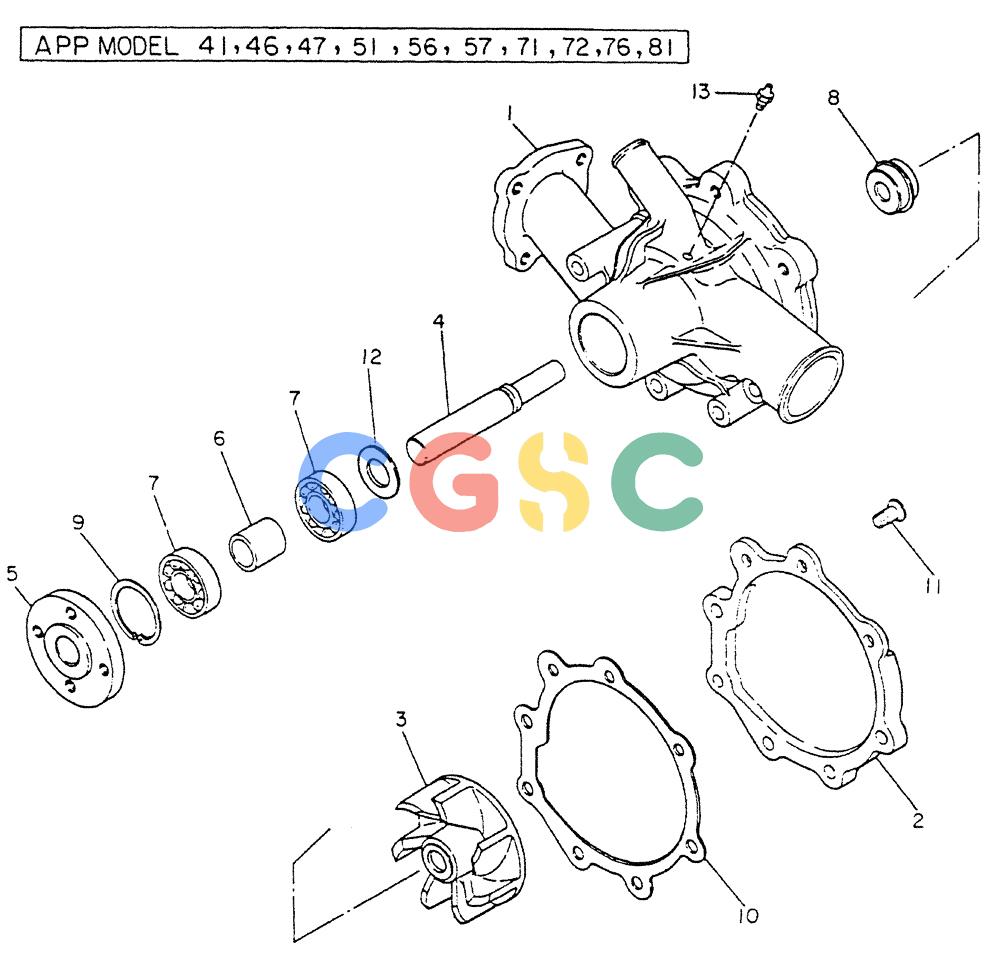

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VG21010Z5000 | [1] | WATER PUMP | KOBPUMP ASSY-WATER |
| 1. | VG21011Z9001 | [1] | HOUSING BODY ASSY | HOUSING BODY ASSY |
| 2. | VG21013Z9000 | [1] | COVER | KOBCOVER |
| 3. | VG21022Z9000 | [1] | IMPELLER | KOBIMPELLER |
| 4. | VG21021Z9002 | [1] | SHAFT | KOBSHAFT SET |
| 5. | VG21054Z9001 | [1] | CENTER JOINT | KOBCENTER |
| 6. | VG21036Z9000 | [1] | SPACER | KOBSPACER |
| 7. | VG21023Z9000 | [2] | BALL BEARING | KOBBEARING-BALL |
| 8. | VG21026Z9000 | [1] | SEAL | KOBSEAL ASSY |
| 9. | VG21039Z9000 | [1] | SNAP RING | KOBRING-SNAP |
| 10. | VG21014Z9000 | [1] | PACKING | KOBPACKING |
| 11. | VG0832082012 | [4] | SCREW SCREW | SCREW SCREW |
| 12. | VG21105Z9000 | [1] | WASHER | KOBWASHER |
| 13. | VG0093210100 | [1] | FITTING | KOBNIPPLE-GREASE |
