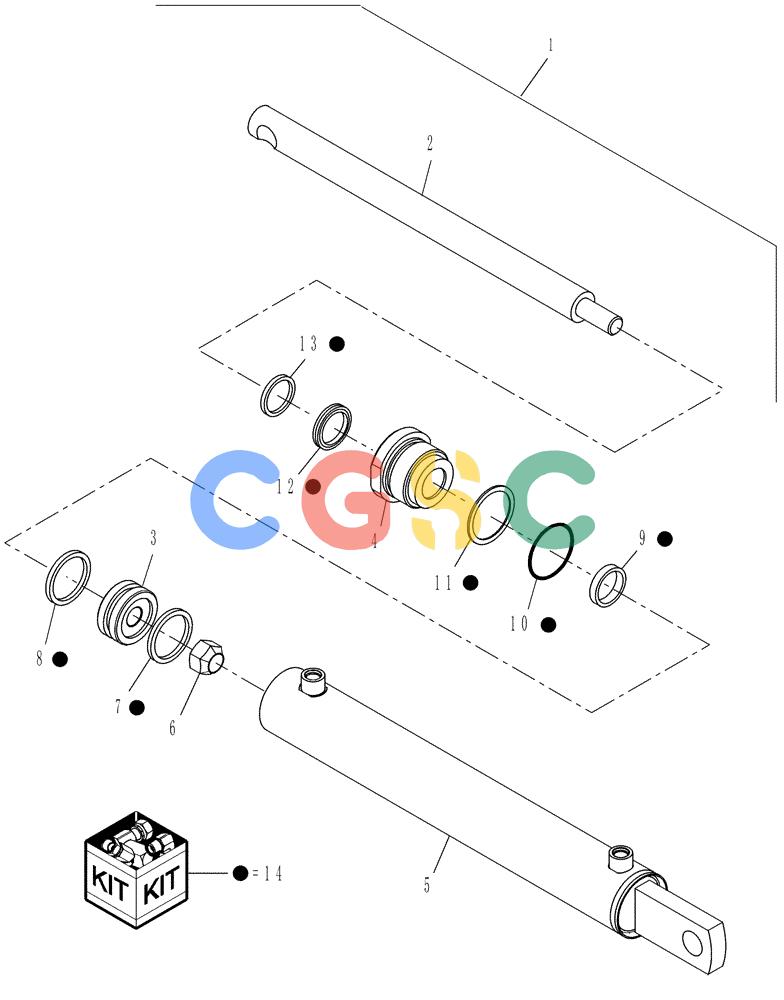

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 87731915 | [1] | HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 107.95mm Stroke | NH Bale Ramp |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CON Rod |
| 3. | 87026074 | [1] | PISTON | PA |
| 4. | 87025449 | [1] | HEAD | PA Cylinder Barrel |
| 6. | 280724 | [1] | LOCK NUT,3/4" - 16 | NH |
| 14. | 87722552 | [1] | SEAL KIT | NH Includes: Ref. 7 - 13 |
