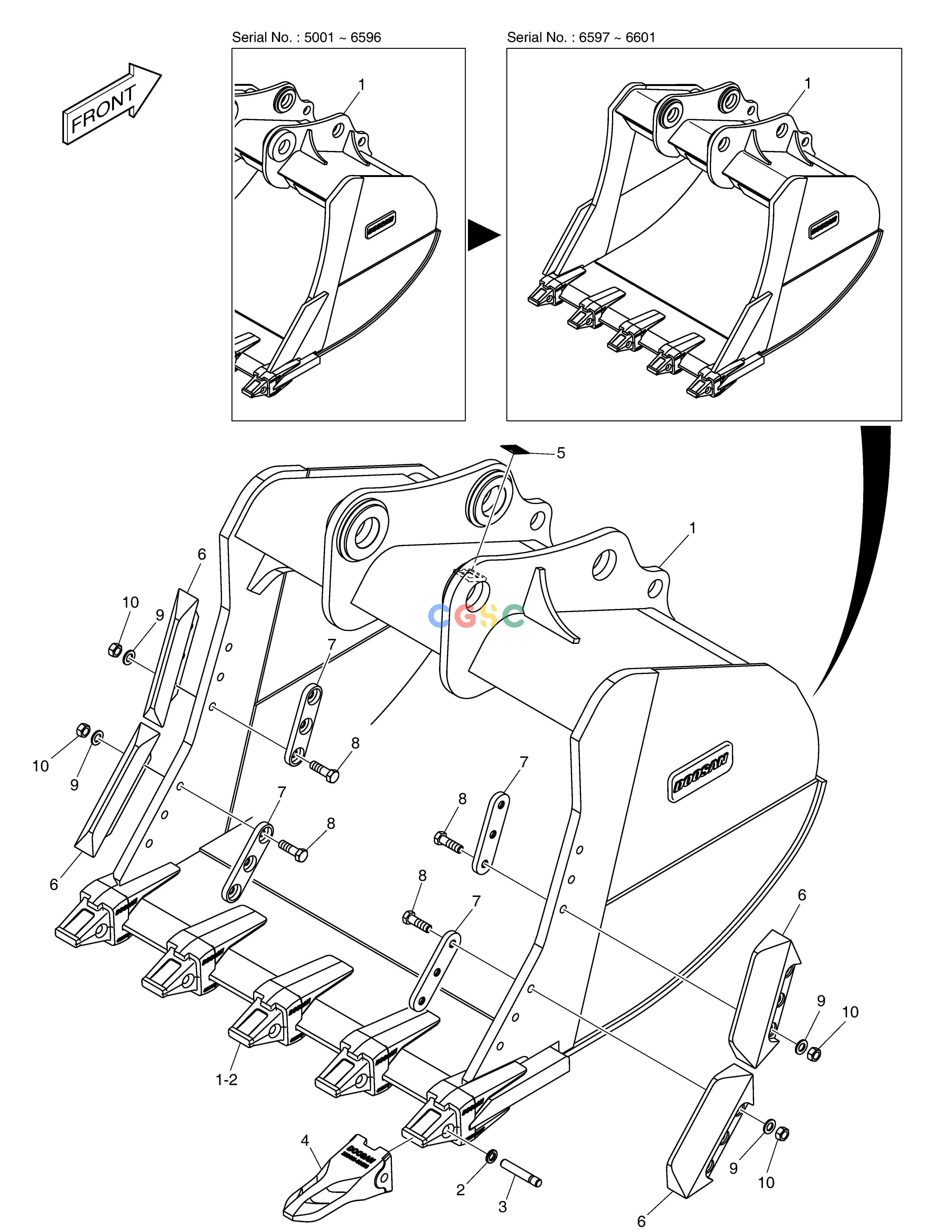

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 230104-02139A | [1] | 230104-02571 | |
| -. | 230104-02571 | [1] | ||
| -. | 230104-02139 | [1] | ||
| 1. | 230104-02141 | [1] | ||
| 1-2. | 430203-00037 | [5] | ||
| 10. | S4013333 | [12] | . NUT | |
| 2. | 2114-1931 | [5] | WASHER;LOCKING | |
| 3. | 2705-1034 | [5] | PIN;LOCKING | |
| 4. | 230111-00106 | [5] | ||
| 5. | 950209-04791 | [1] | ||
| 6. | 111003-00049 | [4] | ||
| 7. | 250102-00528 | [4] | ||
| 8. | S0574961 | [12] | BOLT M24X3.0X80 | |
| 9. | 2114-1831A | [12] | . WASHER |
