神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (06-008) - COOLER - OIL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
546 次

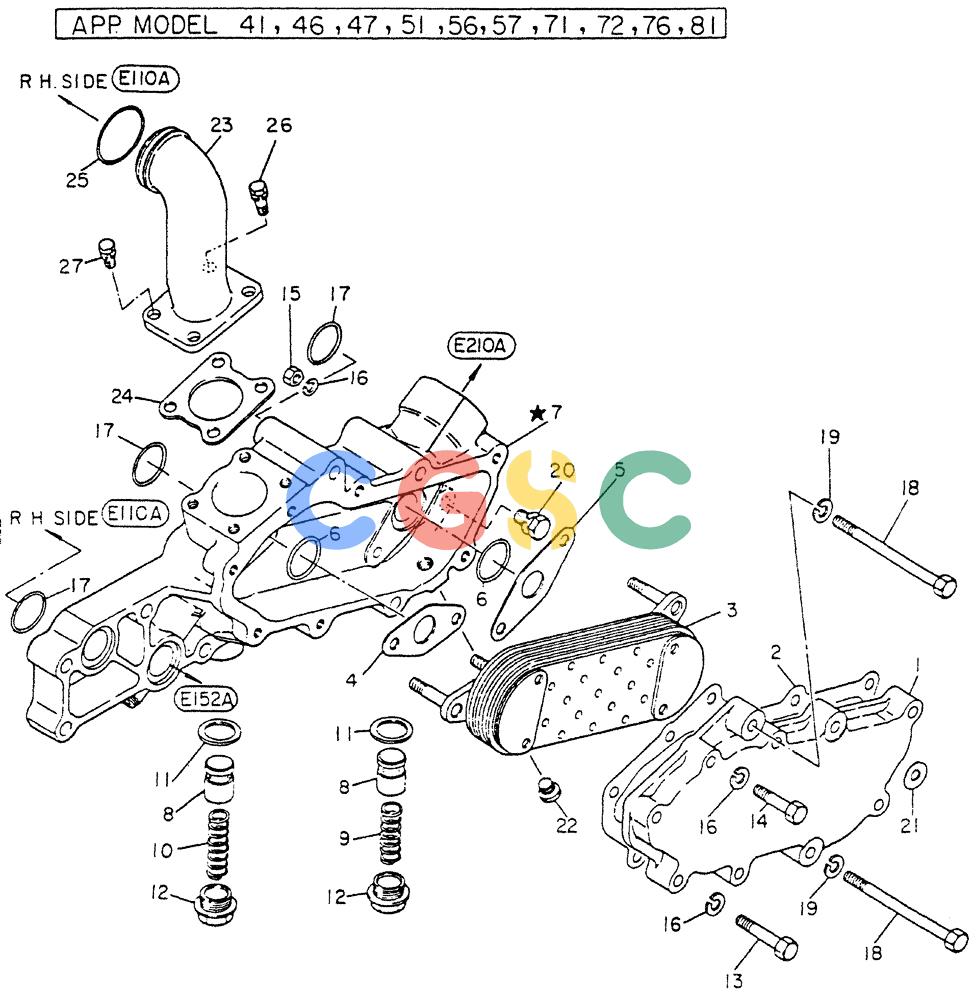

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-16. | VG21300Z5500 | [1] | COOLER ASY OIL COLLER ASSY-OIL | COOLER ASY OIL COLLER ASSY-OIL |
| 1. | VG21301Z9001 | [1] | COVER | KOBCOVER |
| 2. | VG21310Z9000 | [1] | PACKING | KOBPACKING |
| 3. | VG21317Z9002 | [1] | OIL COOLER | KOBELEMENT-COOLER |
| 4. | VG21331Z9000 | [1] | PACKING | KOBPACKING |
| 5. | VG21331Z9001 | [1] | PACKING | KOBPACKING |
| 6. | VG21387Z9000 | [2] | O-RING | KOBO-RING |
| 7-12. | VG21302Z9002 | [1] | MOTOR HOUSING | KOBHOUSING ASSY |
| 8. | VG15280Z9001 | [2] | VALVE VALVE | VALVE VALVE |
| 9. | VG15167Z9001 | [1] | SPRING SPRING-VALVE | SPRING SPRING-VALVE |
| 10. | VG15167Z9000 | [1] | SPRING SPRING-VALVE | SPRING SPRING-VALVE |
| 11. | VG1528390000 | [2] | PACKING | KOBPACKING CAP |
| 12. | VG1530361503 | [2] | PLUG PLUG | PLUG PLUG |
| 13. | VG0811084500 | [6] | BOLT BOLT | BOLT BOLT |
| 14. | VG0811083500 | [1] | BOLT BOLT | BOLT BOLT |
| 15. | VG0891110800 | [4] | NUT NUT | NUT NUT |
| 16. | VG0891513800 | [11] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 17. | VG2138790001 | [3] | RUBBER RING | KOBRING-RUBBER |
| 18. | VG0801100210 | [3] | BOLT BOLT | BOLT BOLT |
| 19. | VG0891514010 | [3] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 20. | VG0812103028 | [1] | BOLT | KOBBOLT, W/WASHER |
| 21. | VG0891544010 | [1] | WASHER PLAIN WASHER-PLAIN | WASHER PLAIN WASHER-PLAIN |
| 22. | VG0893130410 | [1] | PLUG-TPR THD | |
| 23. | VG21305Z5500 | [1] | RIGID TUBE | KOBPIPE |
| 24. | VG21306Z5001 | [1] | GASKET | KOBGASKET-WATER PI |
| 25. | VG21725Z5020 | [1] | RUBBER RING | KOBO-RING |
| 26. | VG0811082562 | [1] | BOLT BOLT, W/WASHER | BOLT BOLT, W/WASHER |
| 27. | VG0811082062 | [3] | BOLT | KOBBOLT, W/WASHER |
