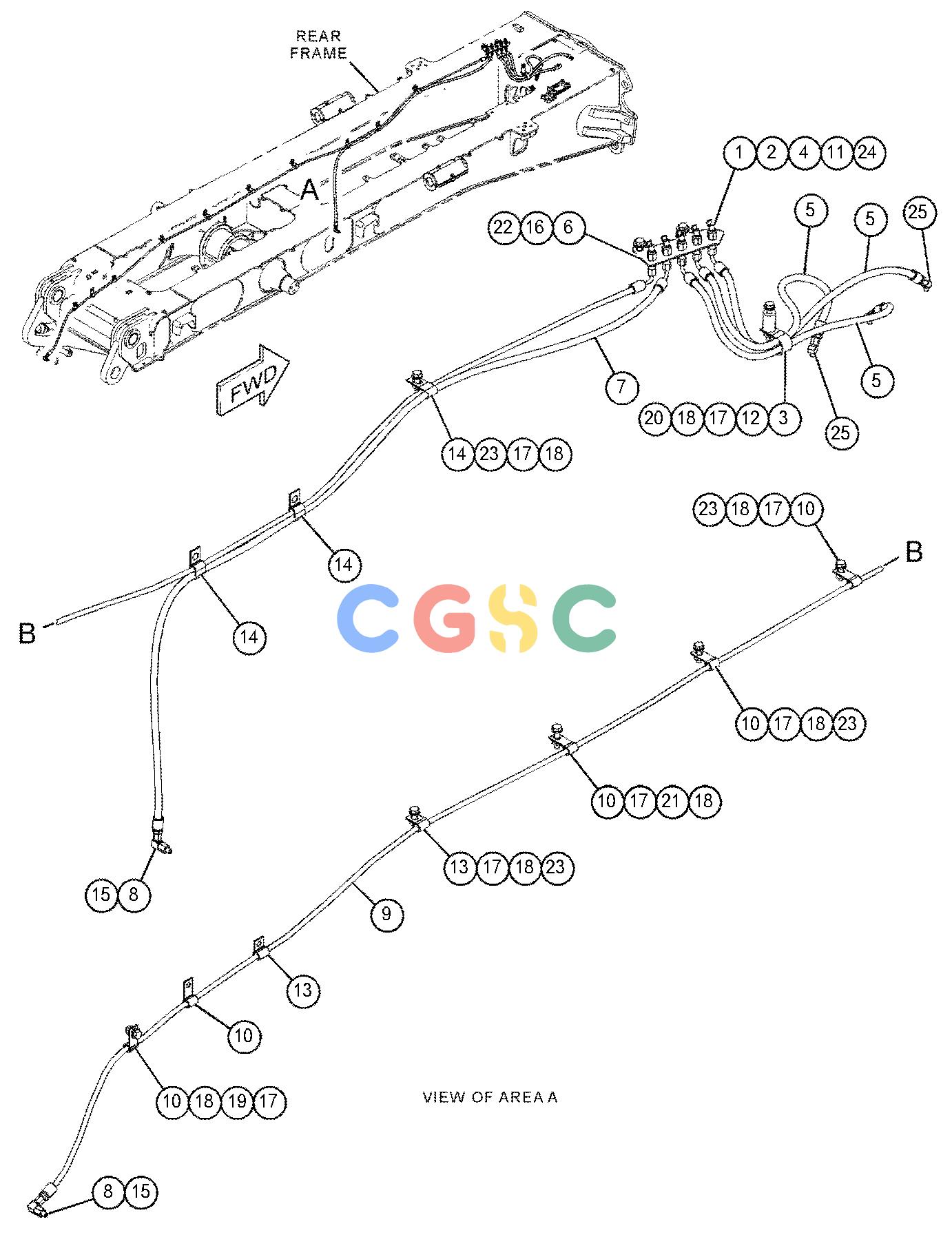

卡特零件查询（725C） 381-0062: LINES GP-GREASE
广数供应链运营团队, 14 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [5] | ELBOW | |
| 2. | 4U-1697 | [5] | ADAPTER-BULKHEAD | |
| 3. | 5U-2673 | [1] | SPACER(11X25X40-MM) | |
| 4. | 5U-7151 | [5] | CAP-GREASE | |
| 5. | 383-3447 | [3] | HOSE AS | |
| 6. | 444-7410 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 7. | 454-7449 | [1] | HOSE AS | |
| 8. | 2N-1287 | [2] | ELBOW-FLARED | |
| 9. | 454-7450 | [1] | HOSE AS | |
| 10. | 4D-9517 | [5] | CLIP | |
| 11. | 5B-3254 | [5] | NUT-JAM(7/16-20-THD) | |
| 12. | 5P-7854 | [1] | CLIP(LOOP) | |
| 13. | 5P-9299 | [2] | CLIP(LOOP) | |
| 14. | 6K-5967 | [3] | CLIP | |
| 15. | 6K-6967 | [2] | ADAPTER-PIPE | |
| 16. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4133M | [7] | NUT(M10X1.5-THD) | |
| 19. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 20. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 21. | 8T-4182M | [1] | BOLT(M10X1.5X45-MM) | |
| 22. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 23. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 24. | 8T-5360 | [5] | WASHER(12X22.5X2.5-MM THK) | |
| 25. | 9L-5125 | [3] | ELBOW | |
| | M | | METRIC PART |
