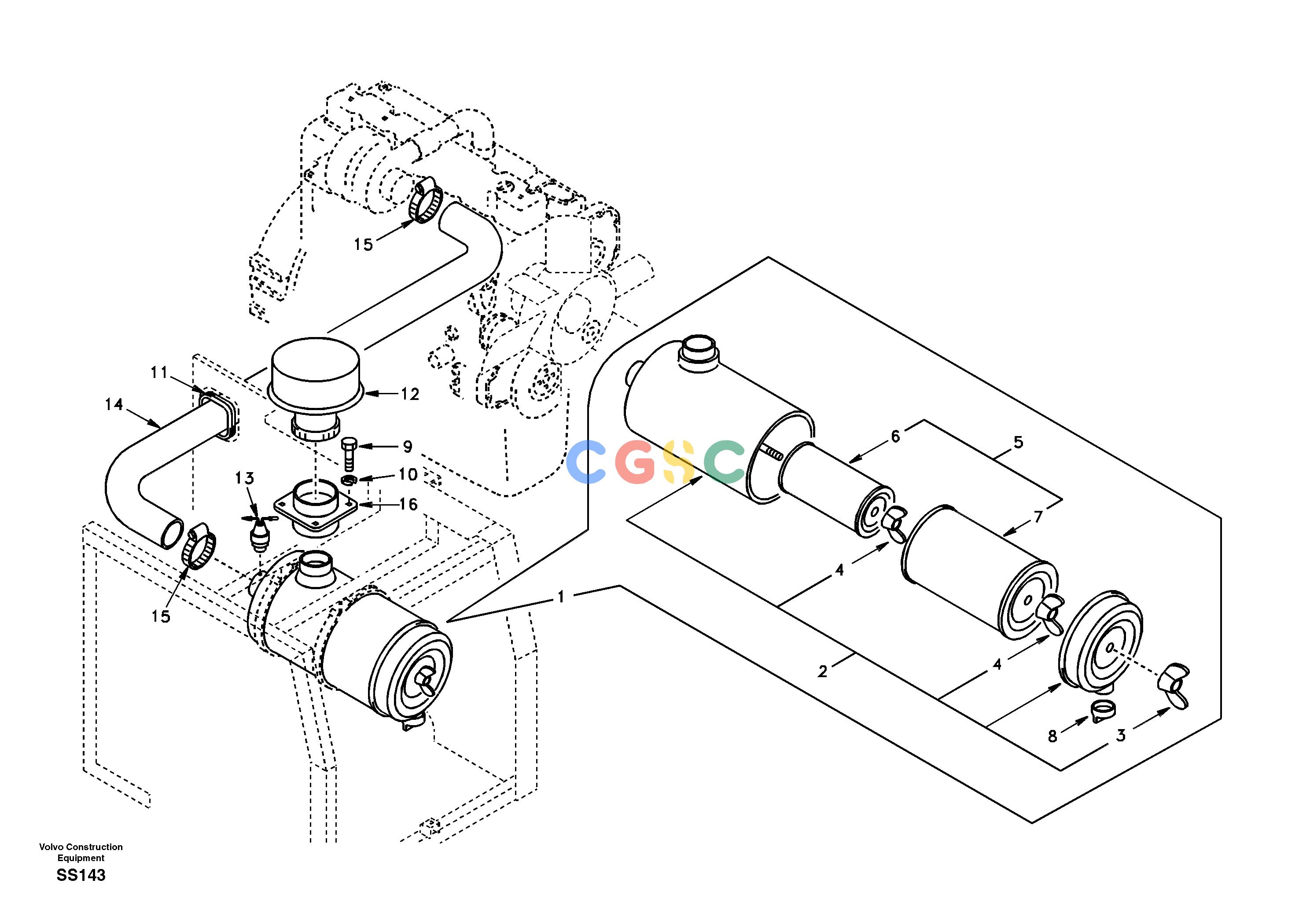

沃尔沃零件查询EW130 Inlet system, pre-cleanerNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA9912-45100
|
[1] |
Body
|
|
| 2. |
SA9912-45100
|
[1] |
Body
|
|
| 3. |
SA9912-45300
|
[1] |
Nut
|
|
| 4. |
SA9912-30200
|
[2] |
Nut
|
|
| 5. |
SA8240-02820
|
[1] |
Filter
|
|
| 6. |
SA9912-45800
|
[1] |
Filter
|
SAFETY
|
| 7. |
SA9912-45700
|
[1] |
Filter
|
PRIMARY
|
| 8. |
SA9912-30900
|
[1] |
Vacuator
|
|
| 9. |
VOE983242
|
[4] |
Hexagon screw
|
|
| 10. |
VOE993835
|
[4] |
Plain washer
|
|
| 11. |
SA1113-00190
|
[1] |
Grommet
|
|
| 12. |
VOE14526930
|
[1] |
Pre-cleaner
|
|
| |
VOE14881077
|
[1] |
Pre-cleaner
|
|
| |
VOE14881080
|
[1] |
Clamp
|
|
| 13. |
SA1113-00040
|
[1] |
Indicator
|
|
| 14. |
SA1113-00120
|
[1] |
Hose
|
|
| 15. |
VOE14883778
|
[2] |
Hose clamp
|
|
| 16. |
SA1113-00310
|
[1] |
Connector
|
|
