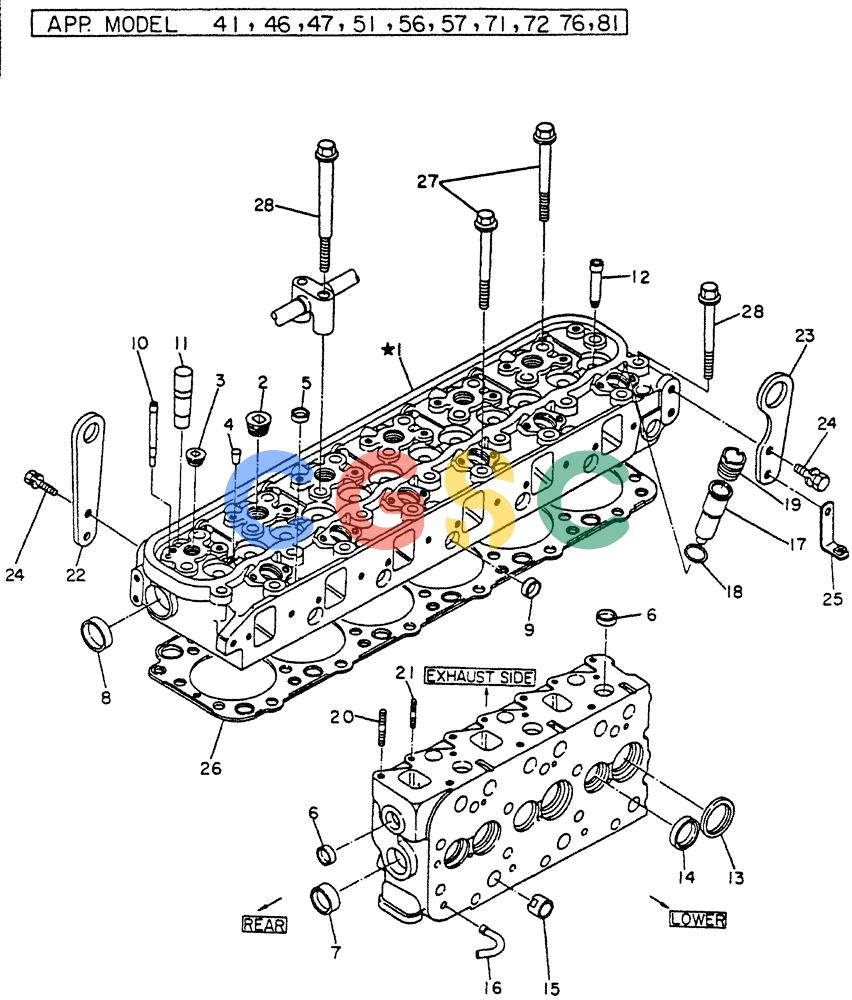

神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (02-001) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCYLINDER HEAD |
| 1-1. | VG11040Z5501 | [1] | HEAD ASSY,FOR 41,46,47 ONLY | |
| 1-19. | VG11040Z5506 | [1] | HEAD ASSY HEAD ASSY,FOR51,56,57,71,72,76,81 ONLY | HEAD ASSY HEAD ASSY,FOR51,56,57,71,72,76,81 ONLY |
| 2. | VG0164800034 | [5] | PLUG | KOBPLUG-WELCH Superseded by part number: 76579817 |
| 3. | VG0164600024 | [1] | PLUG-WELCH | |
| 4. | VG0093320850 | [6] | DOWEL | KOBPLUG-TPR |
| 5. | VG0093312200 | [6] | PLUG | KOBPLUG-CUP |
| 6. | VG1101976200 | [7] | PLUG | KOBPLUG-WELCH |
| 7. | VG0164800124 | [1] | PLUG | KOBPLUG-WELCH |
| 8. | VG0164800084 | [1] | PLUG | KOBPLUG-WELCH |
| 9. | VG0164800024 | [6] | PLUG | KOBPLUG-WELCH |
| 10. | VG11051Z5501 | [1] | PIPE PIPE-OIL | PIPE PIPE-OIL |
| 11. | VG11052Z5500 | [6] | PIPE PUSH ROD PIPE | PIPE PUSH ROD PIPE |
| 12. | VG13211Z5001 | [12] | VALVE | KOBGUIDE-VALVE |
| 13. | VG13214Z5000 | [6] | SEAT VALVE SEAT-INLET VALVE | SEAT VALVE SEAT-INLET VALVE |
| 14. | VG13215Z5000 | [6] | VALVE SEAT | KOBSEAT-EXH,VALVE |
| 15. | VG11085J2000 | [6] | JET JET-WATER | JET JET-WATER |
| 16. | VG11085Z5501 | [6] | JET JET-WATER | JET JET-WATER |
| 17. | VG11070Z5502 | [6] | TUBE,NOZZLE TUBE-NOZZLE | TUBE,NOZZLE TUBE-NOZZLE |
| 18. | VG11072Z5500 | [6] | O-RING O-RING | O-RING O-RING |
| 19. | VG11071Z5502 | [6] | SLEEVE CYLINDER | KOBSLEEVE NOZZLE |
| 20. | VG9101790012 | [12] | STUD | KOBSTUD |
| 21. | VG0822382010 | [12] | SCREW | KOBSTUD |
| 22. | VG10005Z5500 | [1] | SLINGER SLINGER | SLINGER SLINGER |
| 23. | VG10006Z5500 | [1] | SLINGER SLINGER | SLINGER SLINGER |
| 24. | VG0812102526 | [4] | B0LT,W/WASHER | |
| 25. | VG0193512194 | [1] | STAY STAY,FOR 51,56,57,71,72,76,81 ONLY | STAY STAY,FOR 51,56,57,71,72,76,81 ONLY |
| 26. | VG11044Z5500 | [1] | GASKET | KOBGASKET Superseded by part number: VG11044Z5507 |
| 27. | VG11056Z5500 | [19] | BOLT | KOBBOLT-CYL, HEAD |
| 28. | VG11056Z5501 | [7] | BOLT | KOBBOLT-CYL, HEAD |
