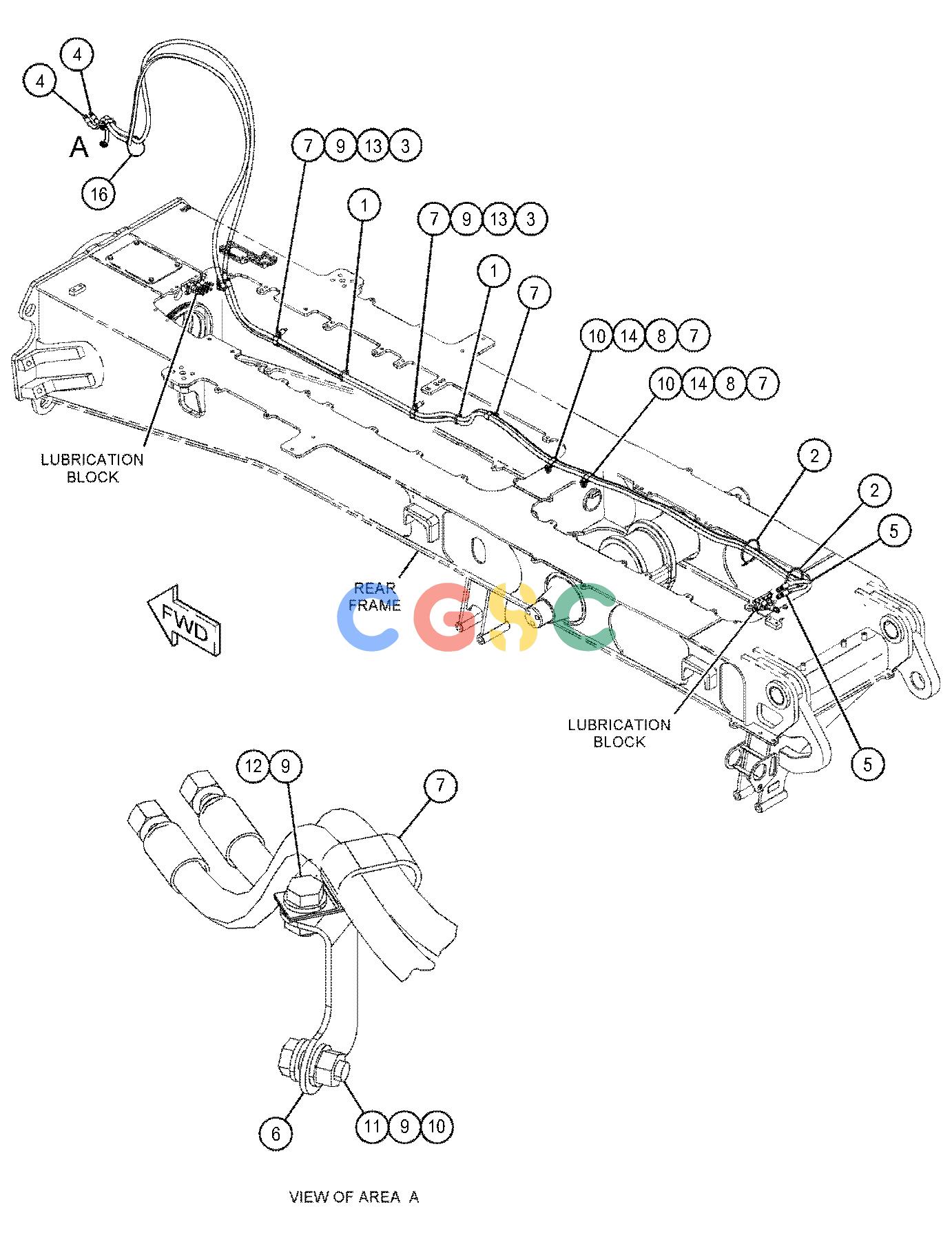

卡特零件查询（725C） 388-4020: LINES GP-LUBRICATION
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 7K-1181 | [2] | STRAP-CABLE | |
| 3. | 217-5449 | [2] | SPACER(11X20X30-MM THK) | |
| 4. | 387-8147 | [2] | HOSE AS | |
| 5. | 388-4022 | [2] | HOSE AS | |
| 6. | 494-1442 | [1] | BRACKET AS | |
| 7. | 5K-5338 | [6] | CLIP(LOOP) | |
| 8. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 11. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 13. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 14. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 16. | 6U-0456 | [1] | STRAP | |
| | M | | METRIC PART |
