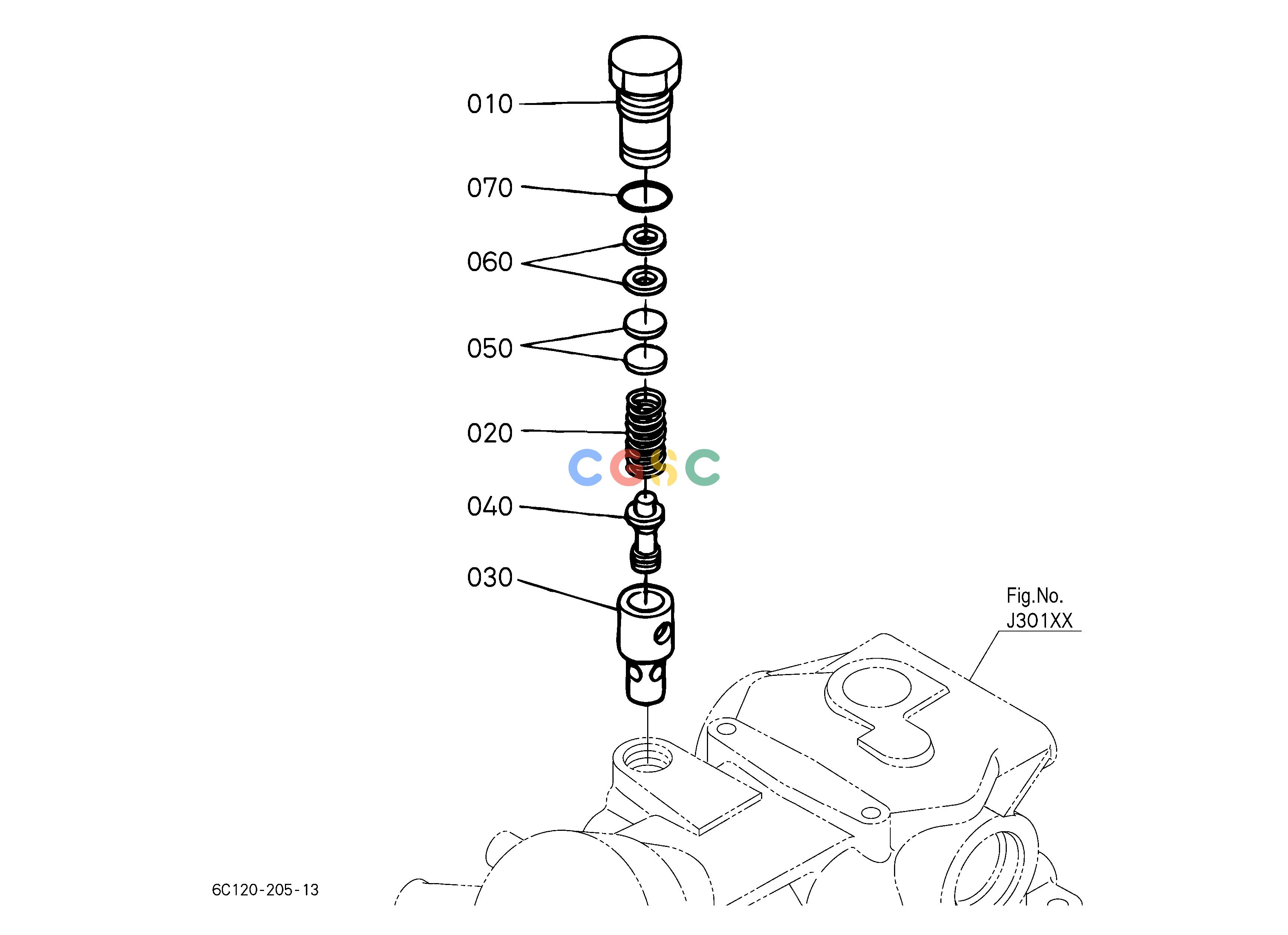

久保田零件查询J43000 RELIEF VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135137910
|
[1] |
PLUG
|
0.1210(lbs); 0.055
|
| 020. |
3135137920
|
[1] |
SPRING,RELIEF
|
0.0440(lbs); 0.020
|
| 030. |
3135137930
|
[1] |
SEAT(RELIEF VALVE)
|
0.0352(lbs); 0.016
|
| 040. |
YT45000220
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 050. |
3135137970
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 050. |
3135137960
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 050. |
3135137950
|
[5] |
SHIM
|
0.0022(lbs); 0.001
|
| 060. |
0401350050
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0481110160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
