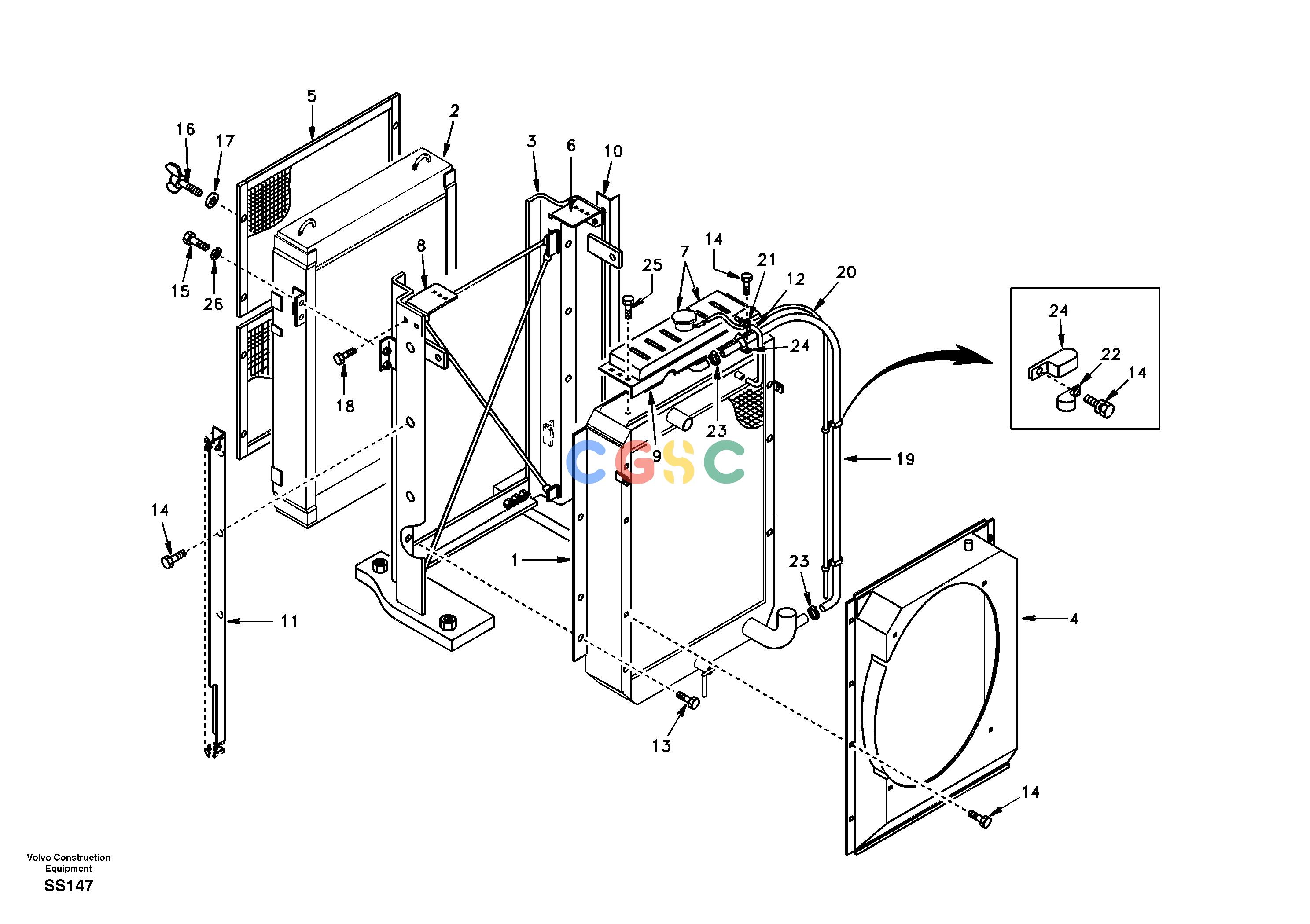

沃尔沃零件查询EW130 RadiatorNone8277406-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14526931
|
[1] |
Radiator
|
|
| 1. |
SA1115-00321
|
[1] |
Radiator
|
|
| 2. |
SA1115-00331
|
[1] |
Oil Cooler
|
|
| 3. |
SA1115-00340
|
[1] |
Guard
|
|
| 4. |
SA1115-00351
|
[1] |
Fan shroud
|
|
| 5. |
SA1115-00381
|
[2] |
Net
|
|
| 6. |
SA1115-01030
|
[1] |
Bracket
|
|
| 7. |
SA1115-00373
|
[1] |
Tank
|
|
| |
VOE14502207
|
[1] |
Cap
|
|
| 8. |
SA1115-01020
|
[1] |
Bracket
|
|
| 9. |
SA1115-00410
|
[1] |
Pad
|
|
| 10. |
SA1115-01050
|
[1] |
Sponge
|
|
| 11. |
SA1115-01040
|
[1] |
Sponge
|
|
| 12. |
SA1115-00620
|
[1] |
Plastic hose
|
|
| 13. |
VOE983252
|
[8] |
Hexagon screw
|
|
| 14. |
VOE983241
|
[19] |
Hexagon screw
|
|
| 15. |
VOE993029
|
[7] |
Hexagon screw
|
|
| 16. |
SA9011-10603
|
[8] |
Bolt
|
|
| 17. |
VOE955921
|
[8] |
Spring washer
|
|
| 18. |
VOE993025
|
[4] |
Hexagon screw
|
|
| 19. |
VOE14881168
|
[1] |
Cooling hose
|
|
| 20. |
VOE14881153
|
[1] |
Cooling hose
|
|
| 21. |
VOE943470
|
[3] |
Hose clamp
|
|
| 22. |
VOE14529345
|
[2] |
Clip
|
|
| 23. |
SA9312-10175
|
[2] |
Hose clamp
|
|
| 24. |
SA9315-03601
|
[3] |
Clip
|
|
| 25. |
SA9011-10804
|
[6] |
Bolt
|
|
| 26. |
SA9213-12000
|
[7] |
Spring washer
|
|
