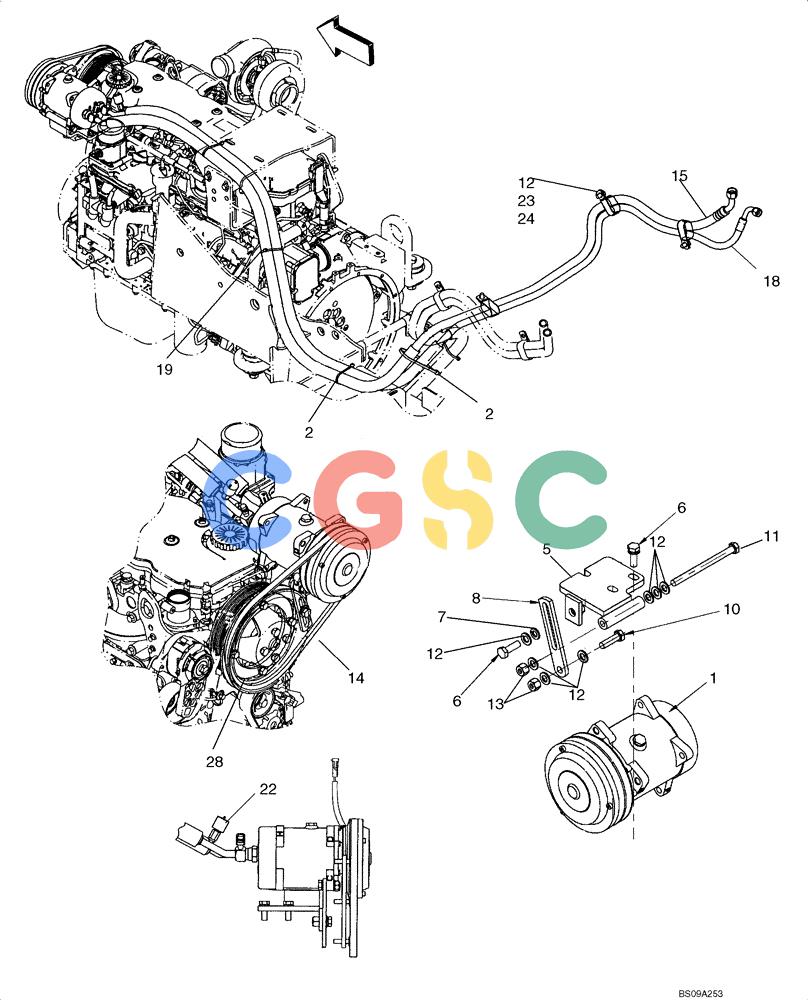

| 1. | 86993462 | [1] | AIRCOND. COMPRESSOR | GI12 v |
| 1. | 86993462R | [1] | REMAN-COMPRESSOR | MKTD95B Tier 3 (3/08-) |
| 1. | 86993462C | [1] | CORE-COMPRESSOR | MKTReturn Part Number |
| 1. | 1999755C3R | [1] | REMAN-A/C COMPRESSOR | CASInc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant Superseded by part number: 86993462R |
| 1. | 1999755C3C | [1] | CORE-COMPRESSOR | MKTReturn Part Number |
| 2. | L18331 | [2] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 5. | 87628433 | [1] | BRACKET | BURCompressor Support |
| 6. | 844-10025 | [3] | BOLT,Hex, M10 x 25mm, Cl 8.8 | CAS Superseded by part number: 9804261 |
| 7. | 892-11010 | [4-1] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 8. | 84716C1 | [1] | SUPPORT | IHBrace Freon Comp Bracket Superseded by part number: 87306665 |
| 10. | 627-10035 | [1-2] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86624978 |
| 11. | 827-10130 | [1] | BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9 | CAS Superseded by part number: 84577051 |
| 12. | 895-11010 | [10-7] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS Superseded by part number: 14496621 |
| 13. | 832-10410 | [2] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 14. | 87492321 | [1] | V-BELT,12.70 mm W x 1029.00 mm L | BURReplaces 87755028, Air Conditioner Drive; Replaces 87628434 AC Belt, 1105 mm (43-1/2 in); Used On Some Models |
| 18. | 87496151 | [1] | HOSE ASSY. | BURHose Assy, A/C Discharge Hose; Replaces 87598763 Superseded by part number: 87598763 |
| 22. | 284273A2 | [1] | A/C HIGH PRESSURE SWITCH | CAS Superseded by part number: 87000227, 87775423 |
| 23. | 627-10020 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106031 |
| 24. | D39696 | [3] | CLAMP,Double, 25.40mm Dia, Coated | CASInsulated, 25.4 mm Dia Superseded by part number: 47048664 |
| 28. | 87439610 | [1] | PULLEY | CASI.D. 107, O.D. 143, AC Pulley Spacer; Replaces 87442369, Pulley I.D. 139.7, O.D. 171.45; Used On Some Models; If Used |
| . . | NSS | [1] | NOT SERVICED SEPARATELY | CONPulley And Hardware Comes On With The Engine |
