| 1. |
84481654
|
[1] |

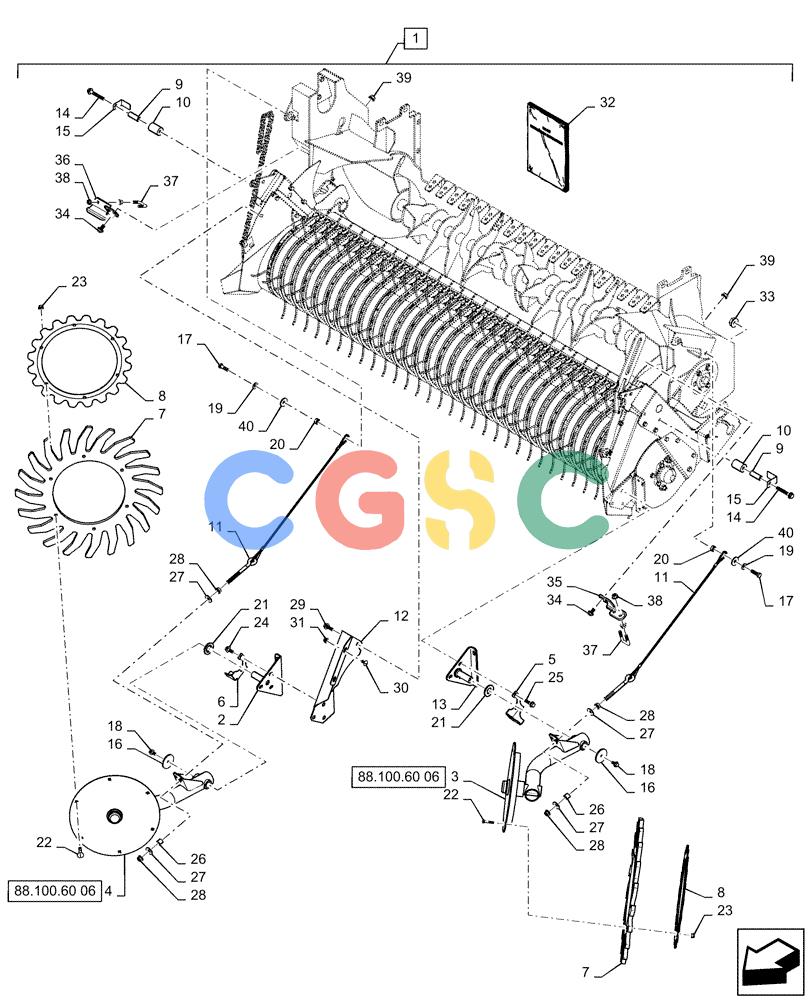

DIA KIT, HARVESTER
|
NH
Crop Saver Wheel, Incl 2 - 32
|
| 2. |
84394605
|
[1] |
INSTRUCTION
|
NH
|
| 3. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
LH Wheel Assembly
|
| 5. |
84545219
|
[1] |
SUPPORT
|
NH
LH
|
| 6. |
84545221
|
[1] |
SUPPORT
|
NH
RH
|
| 7. |
84296069
|
[2] |
WHEEL
|
NH
|
| 8. |
84269073
|
[2] |
RING
|
PA
|
| 9. |
84544857
|
[2] |
SPACER
|
NH
|
| 10. |
84544856
|
[2] |
ROLLER
|
NH
|
| 11. |
84528273
|
[2] |
CABLE
|
PA
|
| 12. |
84353332
|
[1] |
MOUNT
|
NH
RH
|
| 13. |
84237595
|
[1] |
SUPPORT
|
PA
LH
|
| 14. |
844-12080
|
[2] |
BOLT,Hvy Hex, M12 x 80mm, Cl 8.8
|
CAS
|
| 15. |
47478176
|
[4] |
GUIDE
|
NH
|
| 16. |
790472
|
[2] |
WASHER,10.3mm ID x 63.5mm OD x 4.8mm Thk
|
FOR
Superseded by part number: 80790472
|
| 17. |
86629541
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 18. |
86050286
|
[2] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 19. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 20. |
87302487
|
[2] |
SPACER,13.8mm ID x 21.3mm OD x 10.3mm L
|
WIC
|
| 21. |
84294582
|
[2] |
WASHER
|
PA
|
| 22. |
86508771
|
[12] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5
|
GI
|
| 23. |
86629544
|
[12] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 24. |
9804261
|
[5] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 25. |
86511845
|
[1] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
| 26. |
86622563
|
[2] |
SPACER
|
GI
|
| 27. |
80700
|
[4] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 28. |
86521607
|
[4] |
FLANGE NUT,Flg, 1/2"-13, G5
|
NH
Superseded by part number: 86544265
|
| 29. |
9804262
|
[8] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 30. |
120041
|
[2] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 31. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 32. |
84255054
|
[1] |
SUPPORT
|
PA
RH
|
| 33. |
9804279
|
[2] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 34. |
9804258
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 35. |
47392447
|
[1] |
PLATE
|
NH
Superseded by part number: 47601518
|
| 36. |
47392413
|
[1] |
PLATE
|
NH
|
| 37. |
47424119
|
[2] |
U-BOLT
|
NH
|
| 38. |
9804276
|
[8] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 39. |
9804277
|
[4] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 40. |
86637848
|
[2] |
WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk
|
NH
|
