神钢零件查询(FD6T04) - NISSAN DIESEL ENGINE - LK500 (1/06-12/06) (04-009) - CLEANER (FITTING PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
391 次

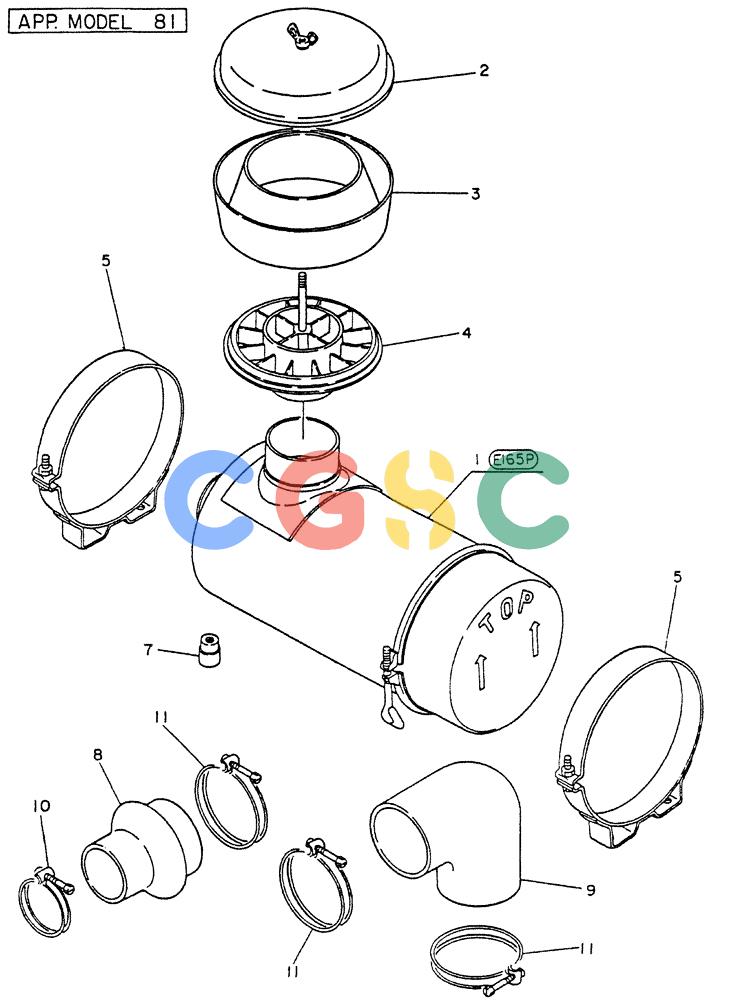

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VG1650196007 | [1] | CLEANER ASSY-AIR (INNER PARTS 04-010) | |
| 2-4. | VG1659695001 | [1] | AIR PRE-CLEANER ASSY | KOBPRE CLEANER ASS |
| 2. | VG1659799000 | [1] | COVER | KOBCOVER |
| 3. | VG1659899000 | [1] | BODY | KOBBODY |
| 4. | VG1659999000 | [1] | SLEEVE CYLINDER | KOBSLEEVE |
| 5. | VG1657396108 | [2] | BRACKET-CLEANER | |
| 7. | VG1655096004 | [1] | INDICATOR ASSY | |
| 8. | VG16575Z5515 | [1] | HOSE-AIR | |
| 9. | VG1657596001 | [4] | ELBOW | KOBHOSE-AIR |
| 10. | VG2138390102 | [1] | CLAMP-HOSE | |
| 11. | VG0155500064 | [9] | CLAMP-HOSE | |
