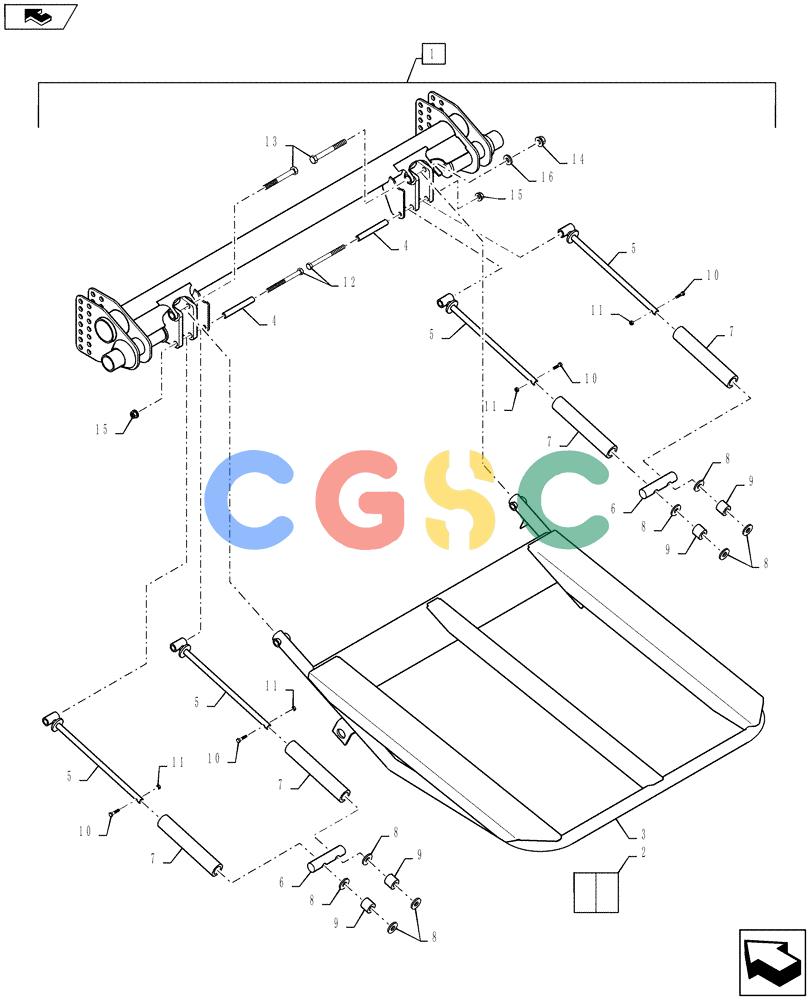

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (88.100.70[01]) - DIA KIT BALE EJECTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
840 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47393464
|
[1] |
DIA KIT, HARVESTER
|
NH
Bale Ramp, Incl 2 - 16
|
| 2. |
84555196
|
[1] |
INSTRUCTION
|
NH
|
| 3. |
47740543
|
[1] |
EJECTOR
|
NH
|
| 4. |
84499807
|
[2] |
SPACER,13.1mm ID x 19.03mm OD x 157mm L
|
NH
|
| 5. |
87028071
|
[4] |
ROD ASSY.
|
PA
|
| 6. |
84597678
|
[2] |
PIN
|
NH
|
| 7. |
87029355
|
[2] |
SPRING,Compression, 2.14" OD x 19.9" L
|
NH
|
| 8. |
87040148
|
[8] |
WASHER,19.81mm ID x 47.497mm OD x 6.35mm Thk
|
PA
|
| 9. |
86562970
|
[4] |
BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L
|
NH
|
| 10. |
86514369
|
[4] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8
|
ZED
|
| 11. |
86629544
|
[4] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 12. |
86505996
|
[2] |
BOLT,Hex, 1/2" - 13 x 7", Gr 5
|
GI
|
| 13. |
86508735
|
[2] |
BOLT,Hex, 3/4" - 10 x 6", Gr 8
|
BAS
Superseded by part number: 426-1296
|
| 14. |
9626598
|
[2] |
NUT,3/4"-10, GB
|
PA
Superseded by part number: 280375
|
| 15. |
86521607
|
[2] |
FLANGE NUT,Flg, 1/2"-13, G5
|
NH
Superseded by part number: 86544265
|
| 16. |
394632
|
[2] |
WASHER,21mm ID x 40mm OD x 4mm Thk
|
NH
|
