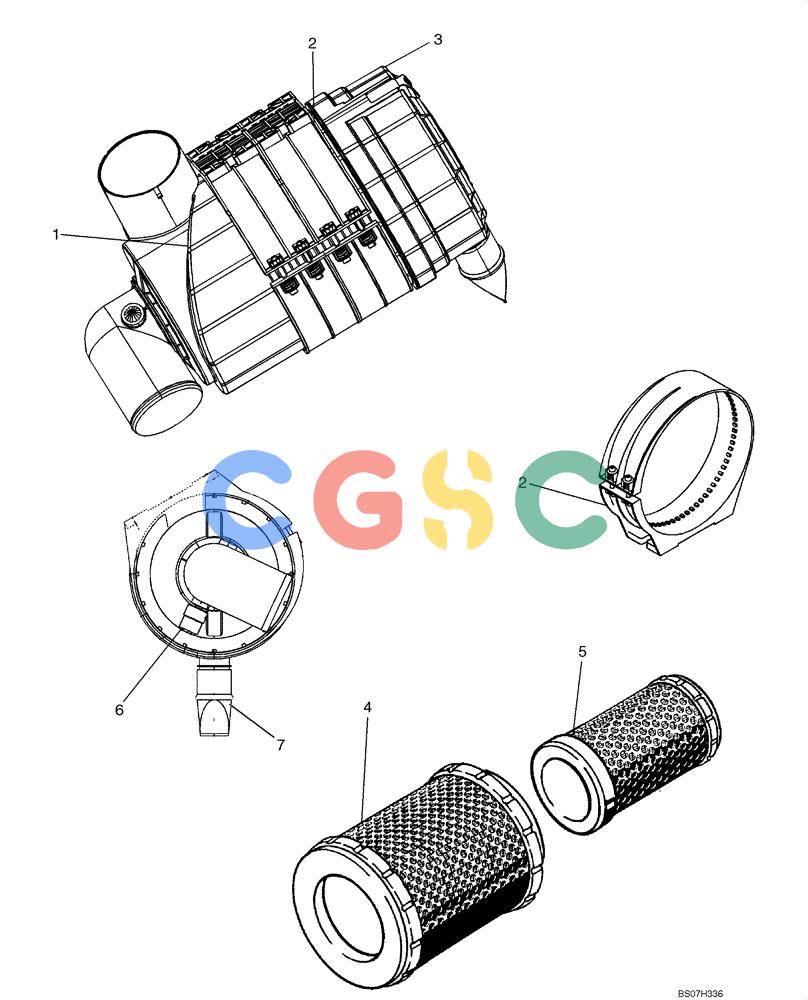

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-06) - AIR CLEANER ASSY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87319251 | [1] | AIR CLEANER | BURAIR CLEANER, Incl. Ref 1 - 8 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing Part Number 8767344 |
| 2. | 87047322 | [2] | BRACKET | BELAir Restriction |
| 3. | 8604711 | [1] | COVER | FAR |
| 4. | 392120A1 | [1] | FILTER, ELEMENT | CASPrimary, Outer Superseded by part number: 87682990 |
| 5. | 392121A1 | [1] | FILTER, ELEMENT | CASSecondary, Inner Superseded by part number: 87683000 |
| 6. | 87673445 | [1] | SWITCH | BHBSWITCH, Pressure, Air Restriction |
| 7. | A184939 | [1] | VALVE | CASRubber Superseded by part number: 8604231 |
