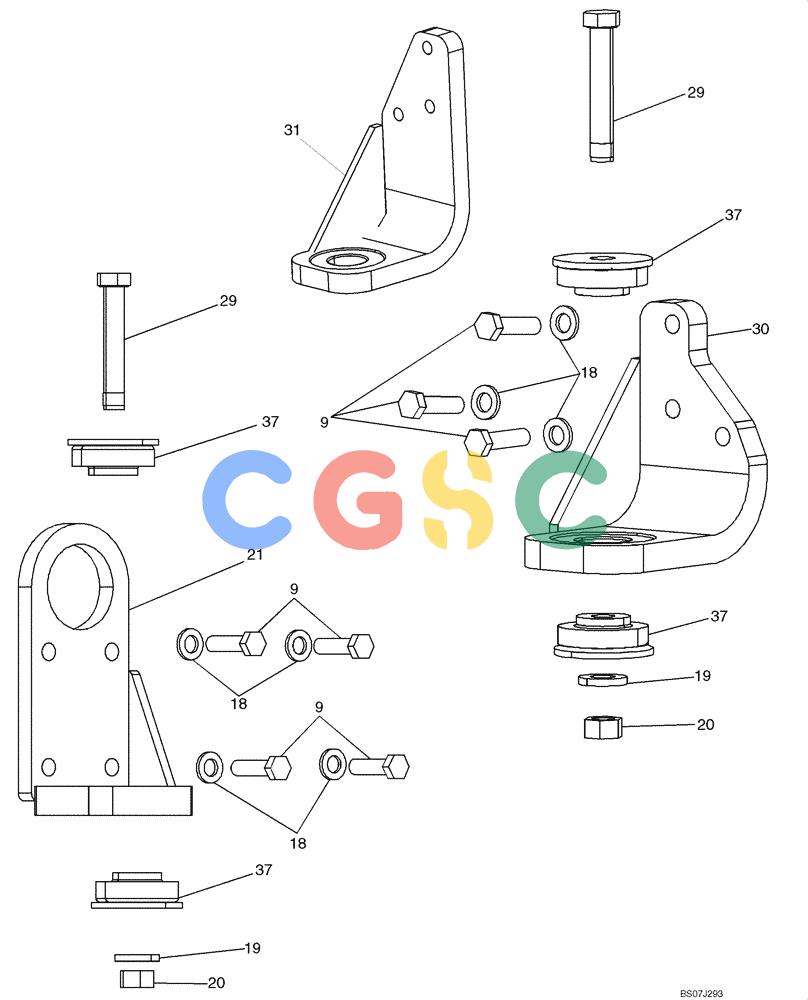

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-08) - ENGINE - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
163 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 9. | 627-12045 | [14] | BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86639031 |
| 18. | 896-11012 | [14] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 19. | 896-15016 | [4] | WASHER,17.5mm ID x 34mm OD x 5mm Thk | CAS Superseded by part number: 82848079, 86639326 |
| 20. | 100020 | [4] | NUT,M16 x 2.0, Cl 8 | NH |
| 21. | 8500059 | [2] | ENGINE MOUNT | CASMOUNT, ENGINE, Flywheel Housing Superseded by part number: 8602302 |
| 29. | 87550181 | [4] | BOLT,Hex, M16 x 95mm, Cl 10.9 | GIBOLT, Locking |
| 30. | 87559860 | [1] | SUPPORT | BUREngine, Front, LH |
| 31. | 87559871 | [1] | SUPPORT | BUREngine, Front,RH |
| 37. | R49597 | [8] | WASHER,17.5mm ID x 70mm OD x 4.5mm Thk | CASFlat |
| 38. | R49921 | [8] | RUBBER MOUNTING | CAS |
