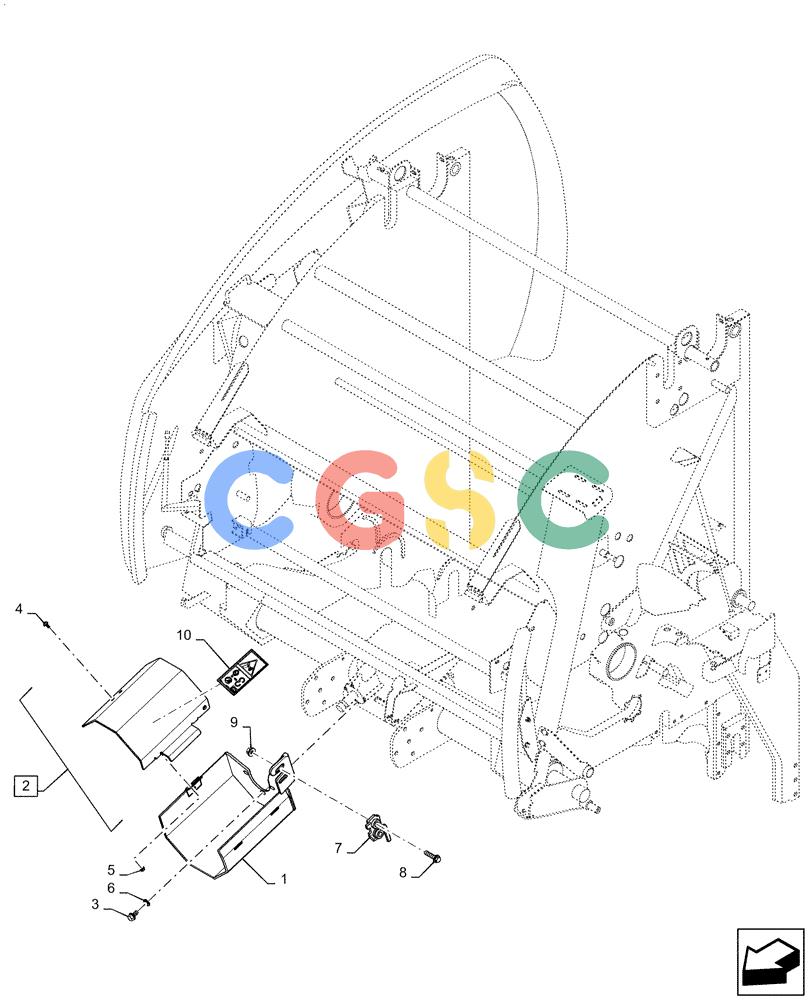

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (90.105.AT[01]) - GEARBOX SHIELD, INPUT SHAFT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
891 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47478351
|
[1] |
BRACKET
|
NH
|
| 2. |
47541104
|
[1] |
LID
|
NH
Incl 10
|
| 3. |
86511841
|
[3] |
BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 4. |
86050272
|
[2] |
BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd
|
NH
|
| 5. |
9804276
|
[2] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 6. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 7. |
87688487
|
[1] |
LATCH ASSY.
|
GI
|
| 8. |
86511842
|
[2] |
BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8
|
NH
|
| 9. |
9804277
|
[2] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 10. |
47361328
|
[1] |
DANGER DECAL
|
NH
|
