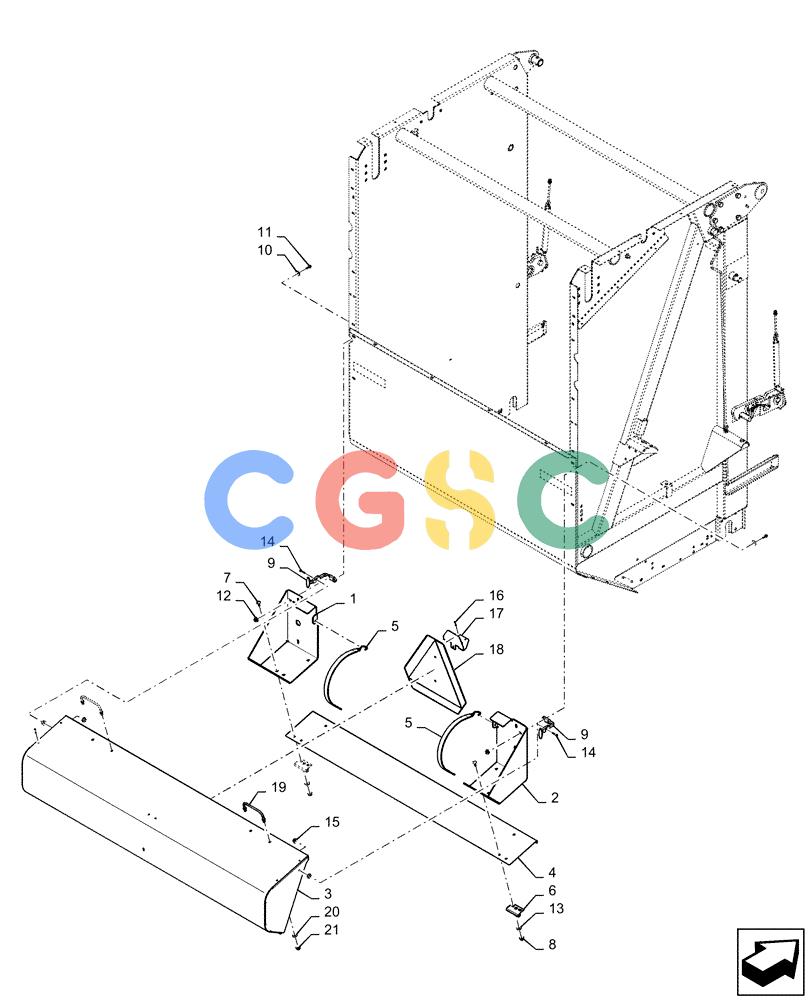

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (90.105.BR[04]) - VAR - 726666, 726964 - REAR NET BOX Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47574977
|
[1] |
SUPPORT
|
NH
LH
|
| 2. |
47575021
|
[1] |
SUPPORT
|
NH
RH
|
| 3. |
84599340
|
[1] |
LID
|
NH
|
| 4. |
47572787
|
[1] |
FLOOR
|
NH
|
| 5. |
87020998
|
[2] |
STRAP
|
PA
|
| 6. |
84133414
|
[1] |
ROD
|
NH
Hinge
|
| 7. |
86636815
|
[6] |
CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd
|
GI
|
| 8. |
9804277
|
[6] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 9. |
86000448
|
[2] |
LATCH
|
NH
|
| 10. |
80701
|
[4] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 11. |
9804257
|
[4] |
FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 12. |
86619800
|
[4] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 13. |
412328
|
[6] |
WASHER
|
NH
|
| 14. |
43117
|
[2] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 15. |
9804276
|
[4] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 16. |
425520
|
[2] |
RIVET,Pop, 3.96mm OD x 10.4mm L
|
NH
|
| 17. |
47554490
|
[1] |
PLATE
|
NH
|
| 18. |
86547710
|
[1] |
EMBLEM
|
ZED
|
| 19. |
86556031
|
[2] |
HANDLE
|
NH
|
| 20. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 21. |
86521606
|
[4] |
FLANGE NUT,Hex, 3/8" - 16, Gr 5
|
NH
|
