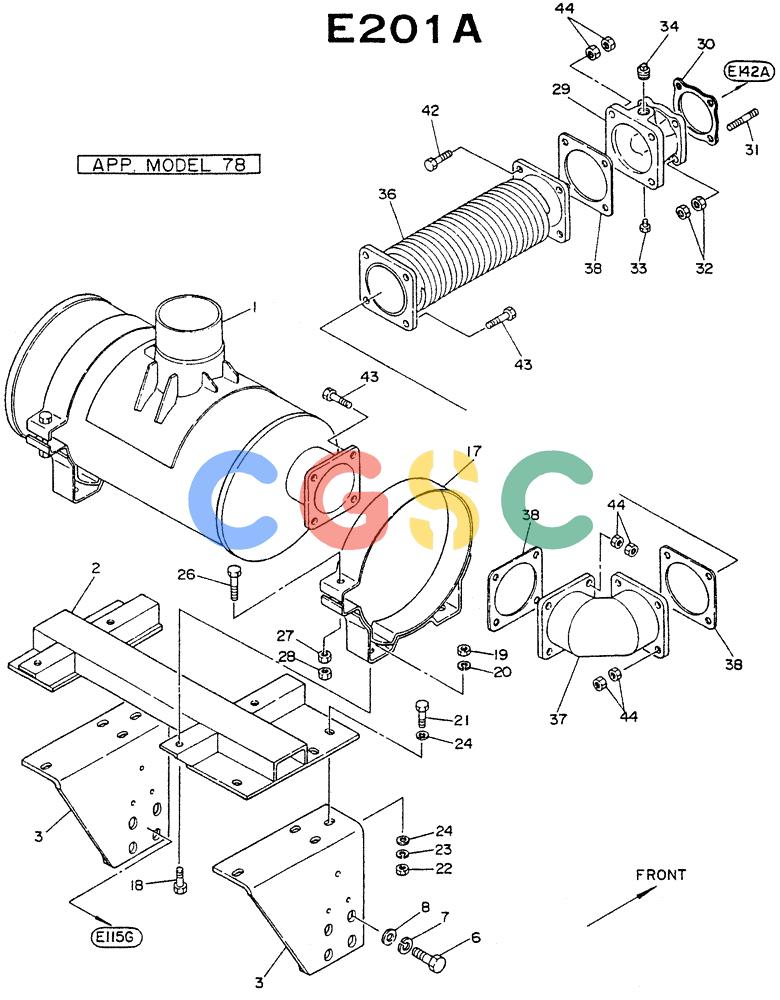

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (07-001[02]) - MUFFLER EXHAUST Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 66 | [1] | KAWASAKI JUKO | KAWASAKI JUKO |
| . . | 78 | [1] | ISHIKAWAJIMA KENKI | |
| 1. | VG2010295012 | [1] | MUFFLER-EXHAUST (FOR 66) | |
| 1. | VG2010296171 | [1] | MUFFLER-EXHAUST (FOR 78) | |
| 2. | VG2010395005 | [1] | BRACKET (FOR 66) | |
| 2. | VG2010395004 | [1] | BRACKET (FOR 78) | |
| 3. | VG2010695000 | [1] | SUPPORT (FOR 66) | |
| 3. | VG2010495000 | [2] | SUPPORT (FOR 78) | |
| 4. | VG0822902510 | [6] | STUD | KOBSTUD (FOR 66) |
| 5. | VG9101795000 | [1] | STUD (FOR 78) | |
| 6. | VG081244401A | [8] | BOLT (FOR 78) | |
| 7. | VG089151441A | [8] | WASHER WASHER-SPRING (FOR 78) | WASHER WASHER-SPRING (FOR 78) |
| 8. | VG089154441A | [8] | LOCK WASHER | KOBWASHER-PLAIN (FOR 78) |
| 9. | VG2176690007 | [6] | SPACER SPACER (FOR 66) | SPACER SPACER (FOR 66) |
| 10. | VG089112401A | [6] | NUT NUT (FOR 66) | NUT NUT (FOR 66) |
| 11. | VG089151401A | [6] | WASHER | KOBWASHER-SPRING (FOR 66) Superseded by part number: 76601964 |
| 12. | VG0193101374 | [1] | SPACER (FOR 66) | |
| 13. | VG089112421A | [1] | NUT NUT (FOR 66) | NUT NUT (FOR 66) |
| 14. | VG089151421A | [1] | WASHER | KOBWASHER-SPRING (FOR 66) |
| 15. | VG3662990000 | [4] | SPACER (FOR 66) | |
| 16. | VG081240301E | [4] | SCREW | KOBBOLT, W/WASHER (FOR 66) Superseded by part number: 76601928 |
| 17. | VG2013396001 | [3] | BAND | KOBBAND-MUFFLER (FOR 66) Superseded by part number: VG2013395002 |
| 17. | VG2013397001 | [2] | BAND-MUFFLER (FOR 78) | |
| 18. | VG081240251A | [4] | SPECIAL BOLT | KOBBOLT (FOR 78) |
| 19. | VG089111401A | [4] | NUT | KOB(FOR 78) Superseded by part number: 76601957 |
| 20. | VG089151401A | [4] | WASHER | KOBWASHER-SPRING (FOR 78) Superseded by part number: 76601964 |
| 21. | VG081240301A | [8] | SCREW | KOBBOLT (FOR 78) |
| 22. | VG089111401A | [8] | NUT | KOB(FOR 78) Superseded by part number: 76601957 |
| 23. | VG089151401A | [8] | WASHER | KOBWASHER-SPRING (FOR 78) Superseded by part number: 76601964 |
| 24. | VG089155401A | [16] | LOCK WASHER | KOBWASHER-PLAIN (FOR 78) |
| 25. | VG081240251E | [6] | SCREW | KOBBOLT,W/WASHER (FOR 66) Superseded by part number: 76601927 |
| 26. | VG081140601A | [2] | BOLT (FOR 78) | |
| 27. | VG089111401A | [2] | NUT | KOBNUT (FOR 78) Superseded by part number: 76601957 |
| 28. | VG089113401A | [2] | NUT (FOR 78) | |
| 29. | VG2001596006 | [1] | ADAPTER (FOR 78) | |
| 30. | VG1423595001 | [1] | GASKET (FOR 78) | |
| 31. | VG0115103564 | [4] | STUD (FOR 78) | |
| 32. | VG1403995000 | [8] | NUT | KOBNUT (FOR 78) Superseded by part number: 76602149 |
| 33. | VG9102890001 | [1] | PLUG | KOBPLUG-TAPER (FOR 78) |
| 34. | VG009311081A | [1] | PLUG | KOBPLUG-THREAD (FOR 78) |
| 36. | VG20034Z1001 | [1] | TUBE-FLEXIBLE (FOR 78) | |
| 37. | VG2001095001 | [1] | ELBOW (FOR 66) | |
| 37. | VG2001095000 | [1] | ELBOW (FOR 78) | |
| 38. | VG2001790001 | [2] | GASKET | KOBGASKET (FOR 66) |
| 39. | VG081210401A | [4] | SCREW | KOBBOLT (FOR 66) |
| 40. | VG081210451A | [4] | SCREW | KOBBOLT (FOR 66) |
| 41. | VG0121100014 | [16] | NUT | KOBNUT (FOR 66) Superseded by part number: 76602149 |
| 42. | VG081210401A | [4] | SCREW | KOBBOLT (FOR 78) |
| 43. | VG081210351A | [8] | SCREW | KOBBOLT (FOR 78) |
| 44. | VG0121100014 | [24] | NUT | KOBNUT (FOR 78) Superseded by part number: 76602149 |
