神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (07-005) - PUMP WATER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
808 次

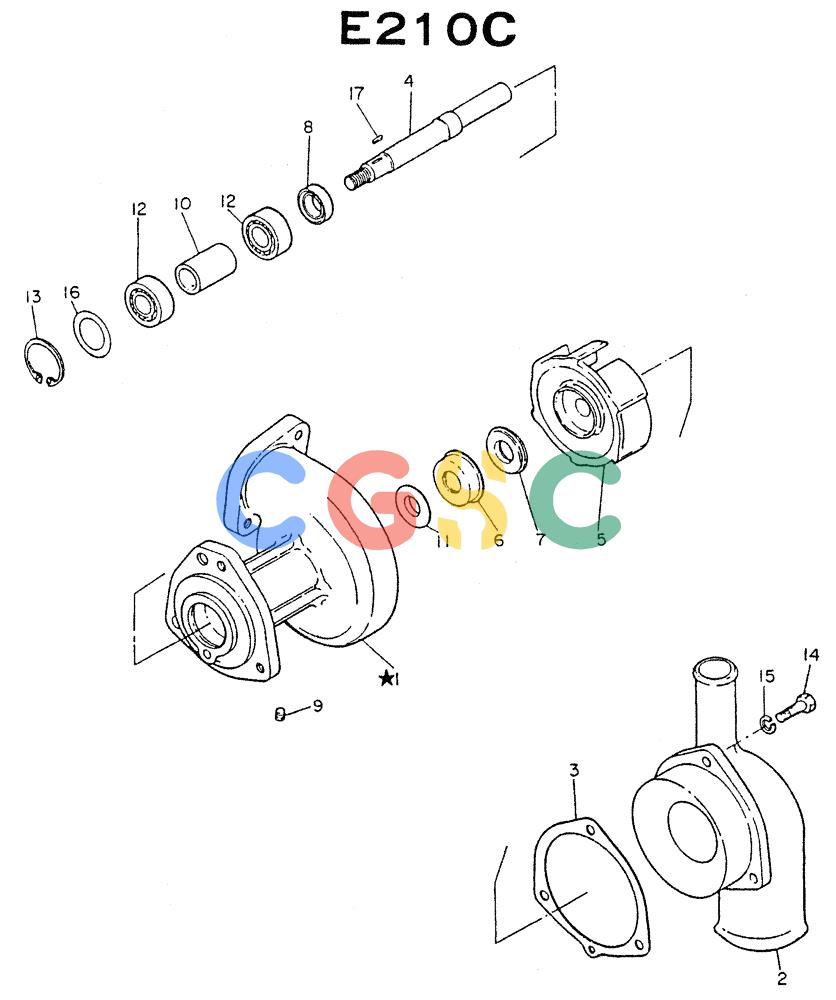

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VG2101095005 | [1] | WATER PUMP | WATER PUMP |
| 2. | VG2104099000 | [1] | INLET-WATER | |
| 3. | VG2108795000 | [1] | GASKET | KOB |
| 4. | VG2102199104 | [1] | SHAFT | |
| 5. | VG2102299003 | [1] | IMPELLER | |
| 6. | VG2102699105 | [1] | SEAL ASSY | SEAL ASSY |
| 7. | VG2102796000 | [1] | VALVE SEAT | KOBASSY |
| 8. | VG2103396000 | [1] | SEAL | KOBOIL |
| 9. | VG2103196000 | [1] | PLUG | KOBTAPER |
| 10. | VG2103895000 | [1] | SPACER | |
| 11. | VG2114499000 | [1] | SLINGER | KOB |
| 12. | VG1466390000 | [2] | BALL BEARING | KOB |
| 13. | VG0092223500 | [1] | RING | KOBSNAP |
| 14. | VG0811082010 | [3] | BOLT | BOLT |
| 15. | VG0891513810 | [3] | WASHER SPRING | WASHER SPRING |
| 16. | VG2103999003 | [1] | SHIM-BEARING | |
| 17. | VG0092821200 | [1] | KEY | KOB |
