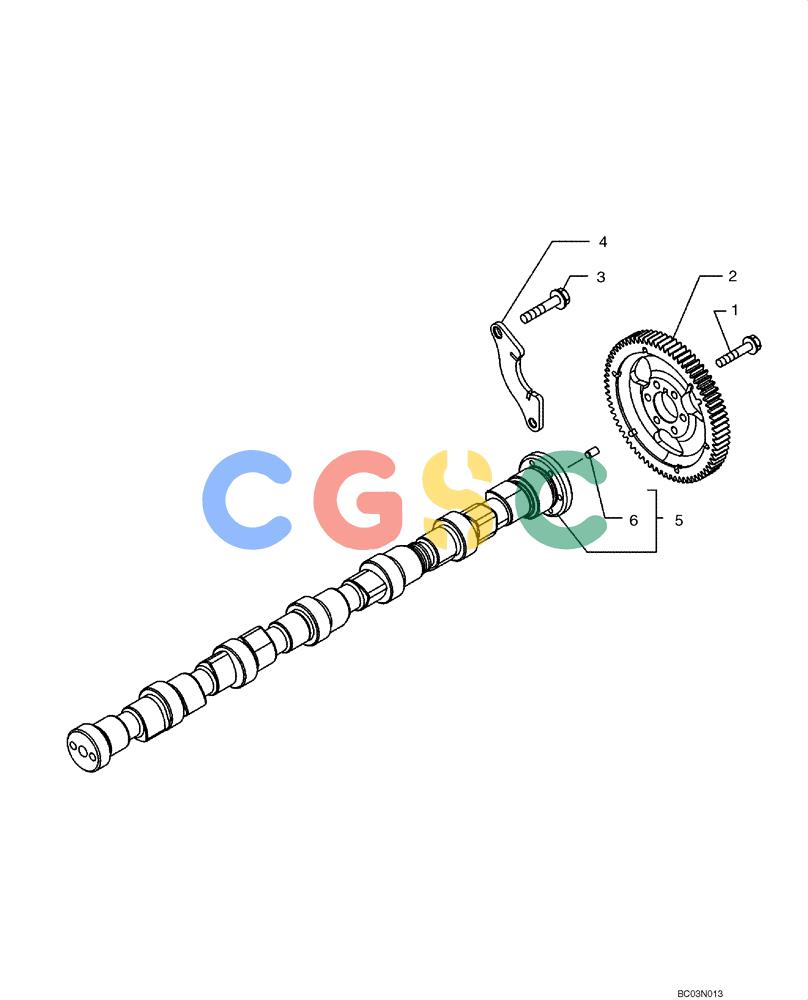

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-30) - CAMSHAFT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
373 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4896380 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4897457 | [1] | SUPPORT | TORSupport |
| 5. | 2854604 | [1] | CAMSHAFT | TORAssy, Incl. 6 |
| . . | 2854604R | [1] | REMAN-CAMSHAFT | TORD150B TIER 3 (HYDRO) (10/07-) |
| . . | 2854604C | [1] | CORE-CAMSHAFT | TORReturn Number |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TOR |
