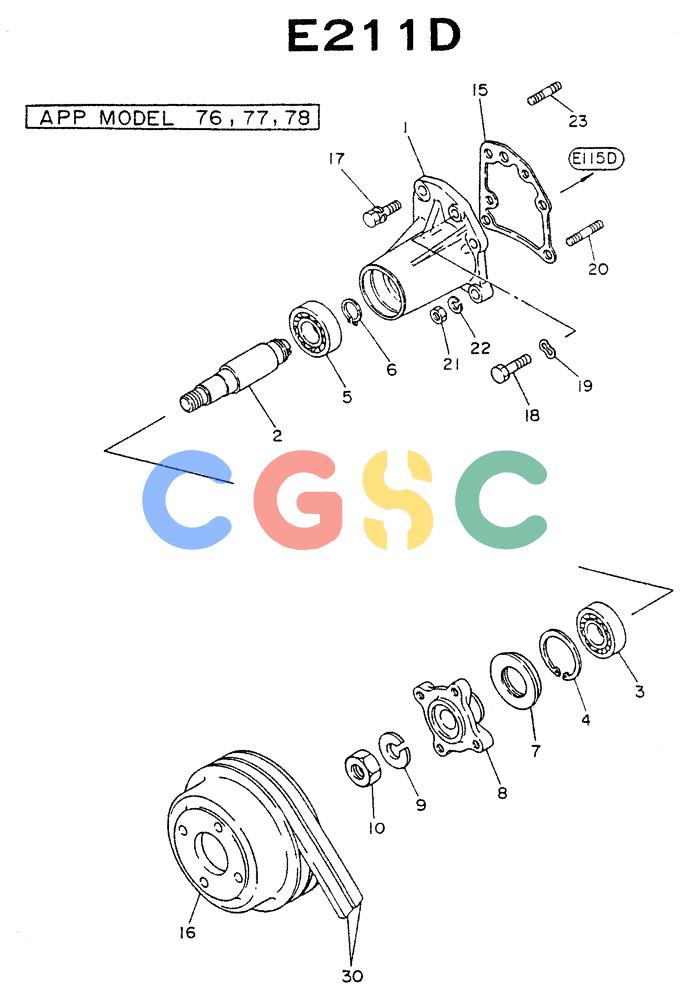

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (07-008) - COOLING SYSTEM FAN "FAN SUPPORT" Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
570 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 76 | [1] | FUJI JUKO | |
| . . | 77 | [1] | ORIENT ENGINEERING | |
| . . | 78 | [1] | ISHIKAWAJIMA KENKI | |
| 1-10. | VG2104695009 | [1] | BRACKET ASSY-FAN | |
| 1. | VG2104795005 | [1] | BRACKET-FAN PULLEY | |
| 2. | VG2104895002 | [1] | SHAFT-FAN PULLEY | |
| 3. | VG2110595000 | [1] | BEARING-BALL | |
| 4. | VG0092226200 | [1] | SNAP RING | KOBRING-SNAP |
| 5. | VG2110595001 | [1] | BEARING-BALL | |
| 6. | VG0092212500 | [1] | RING-SNAP | |
| 7. | VG2104995000 | [1] | SEAL-OIL | |
| 8. | VG2105495003 | [1] | HUB-PULLEY | |
| 9. | VG089151501A | [1] | WASHER-SPRING (NOT FOR SALE INDIVIDUALLY) | |
| 10. | VG089113501A | [1] | NUT | KOBNUT (NOT FOR SALE INDIVIDUALLY) |
| 15. | VG2105095004 | [1] | GASKET | KOBGASKET |
| 16. | VG2105195012 | [1] | PULLEY-FAN | |
| 17. | VG081210551E | [1] | SCREW | KOBBOLT, W/WASHER (NOT FOR SALE INDIVIDUALLY) Superseded by part number: 76601923 |
| 18. | VG081208951A | [1] | BOLT (NOT FOR SALE INDIVIDUALLY) | |
| 19. | VG0132300084 | [1] | WASHER WASHER-WAVE | WASHER WASHER-WAVE |
| 20. | VG0822704010 | [3] | STUD | KOBSTUD |
| 21. | VG089112401A | [4] | NUT NUT (NOT FOR SALE INDIVIDUALLY) | NUT NUT (NOT FOR SALE INDIVIDUALLY) |
| 22. | VG089151401A | [4] | WASHER | KOBWASHER-SPRING (NOT FOR SALE INDIVIDUALLY) Superseded by part number: 76601964 |
| 23. | VG0115103084 | [1] | STUD | KOBSTUD |
| 30. | VG2114096108 | [2] | V BELT | |
