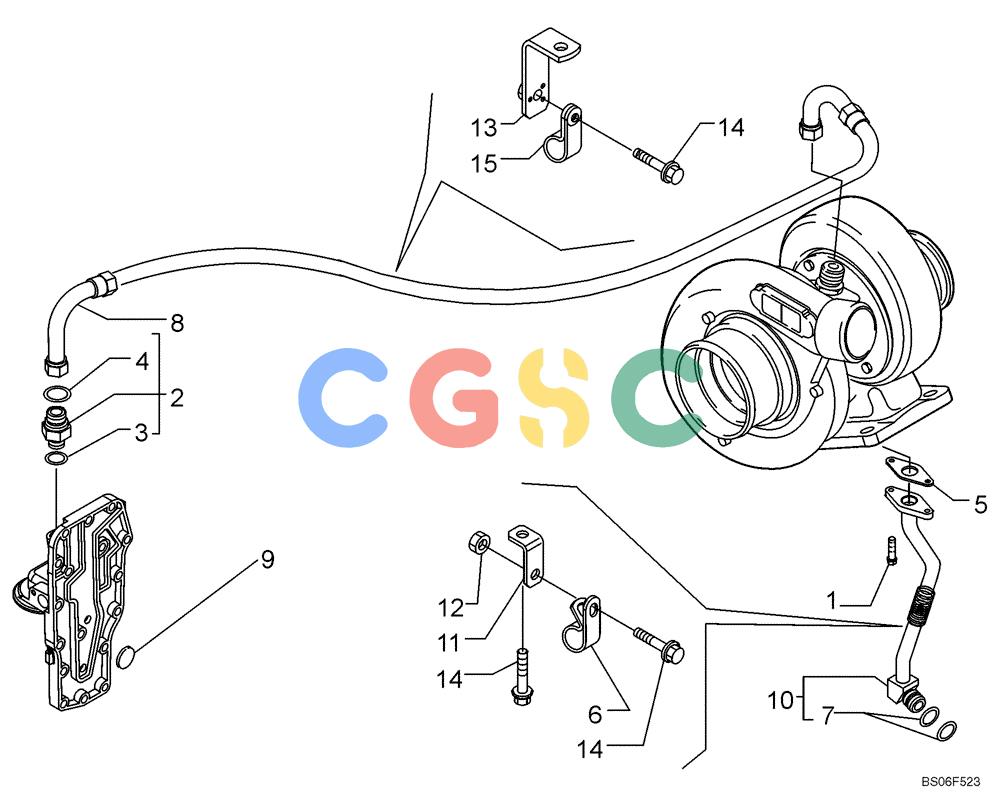

纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (02-41) - TURBOCHARGER DRAIN LINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
680 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4895107 | [1] | HYD CONNECTOR,11/16"-16 x M12 | TORAssy; Incl. Ref 3, 4 Superseded by part number: |
| 3. | 4899107 | [1] | O-RING,1.8mm Thk x 10.52mm ID | TOR |
| 4. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOROil Drain |
| 6. | 4896893 | [1] | CLAMP | TOR |
| 7. | 5135738 | [2] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 8. | 2852746 | [1] | HOSE,6.35mm ID x 698mm L | TOROil Supply Superseded by part number: 504084096 |
| 9. | 4895089 | [1] | PLUG | TORExpansion, .886" OD |
| 10. | 2854585 | [1] | TUBE | LECOil Drain Tube; Incl. Ref 7 Superseded by part number: 47547973 |
| 11. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 12. | 17044735 | [1] | NUT,Hex, M8 | TOR |
| 13. | 2852380 | [1] | BRACKET | TOR Superseded by part number: 99477631 |
| 14. | 4899068 | [3] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 15. | 4899436 | [1] | CLAMP | TORP-Type Clamp |
