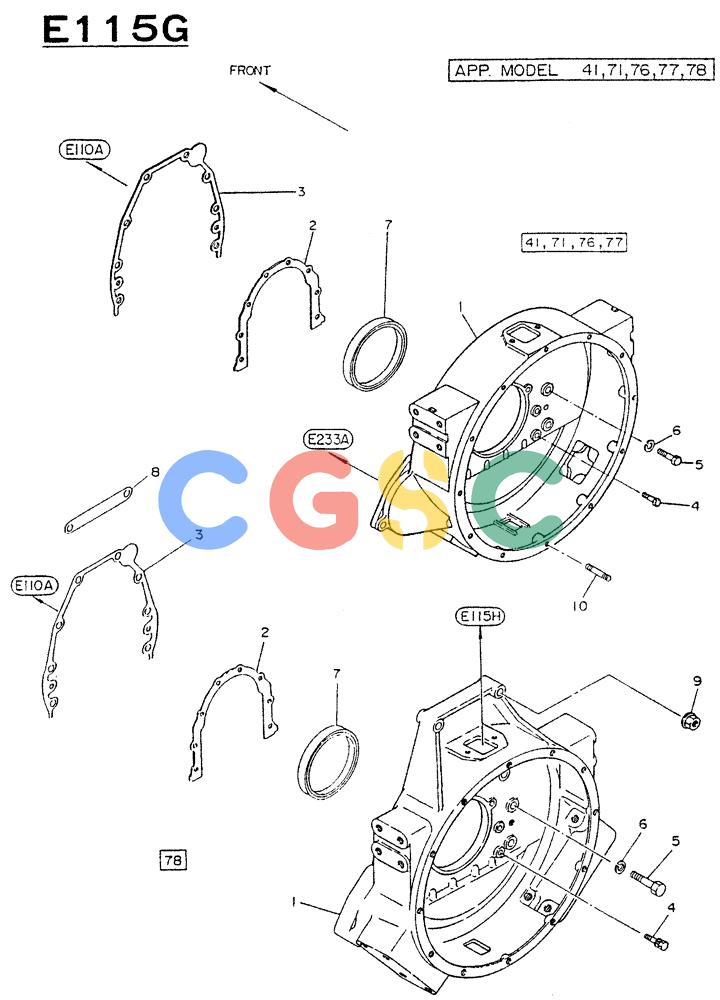

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (02-005[01]) - HOUSING FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
776 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 41 | [1] | SCREW | IHSPRING CLIP TADANO LTD. |
| . . | 66 | [1] | KAWASAKI JUKO | KAWASAKI JUKO |
| . . | 71 | [1] | KOBE SEIKOJO | KOBE SEIKOJO |
| . . | 76 | [1] | FUJI JUKO | |
| . . | 77 | [1] | ORIENT ENGINEERING | |
| . . | 78 | [1] | ISHIKAWAJIMA KENKI | |
| 1. | VG1233195004 | [1] | HOUSING, FLYWHEEL HOUSING-FLYWHEEL,FOR 41,71 ONLY | HOUSING, FLYWHEEL HOUSING-FLYWHEEL,FOR 41,71 ONLY |
| 1. | VG1233195069 | [1] | MOTOR HOUSING | KOBHOUSING-FLYWHEEL,FOR 66 ONLY |
| 1. | VG1233195010 | [1] | MOTOR HOUSING | KOBHOUSING-FLYWHEEL,FOR 76,77 ONLY |
| 1. | VG1233195064 | [1] | HOUSING-FLYWHEEL,FOR 78 ONLY | |
| 2. | VG1233295001 | [1] | GASKET | KOBGASKET-HOUSING,FOR 41,71,76,77,78 ONLY |
| 2. | VG1233295003 | [1] | GASKET | KOBGASKET-HOUSING,FOR 66 ONLY |
| 3. | VG1233395000 | [1] | SPACER | KOBSPACER,FOR 41,71,76,77,78 ONLY |
| 4. | VG081208351E | [8] | SCREW | KOBBOLT.W/WASHER Superseded by part number: 76601910 |
| 5. | VG081312401A | [8] | SCREW | KOBBOLT |
| 6. | VG089151421A | [8] | WASHER | KOBWASHER-SPRING |
| 7. | VG1227995004 | [1] | SEAL-OIL SEAL-OIL,FOR 41,71,76,77,78 ONLY | SEAL-OIL SEAL-OIL,FOR 41,71,76,77,78 ONLY |
| 7. | VG1227995003 | [1] | OIL SEAL | KOBSEAL-OIL,FOR 66 ONLY |
| 8. | VG1233395003 | [1] | SPACER | KOBSPACER,FOR 78 ONLY |
| 9. | VG089116421G | [2] | NUT.W/WASHER,FOR 78 ONLY | |
| 10. | VG0822703010 | [12] | STUD | KOBSTUD,FOR 41 ONLY |
