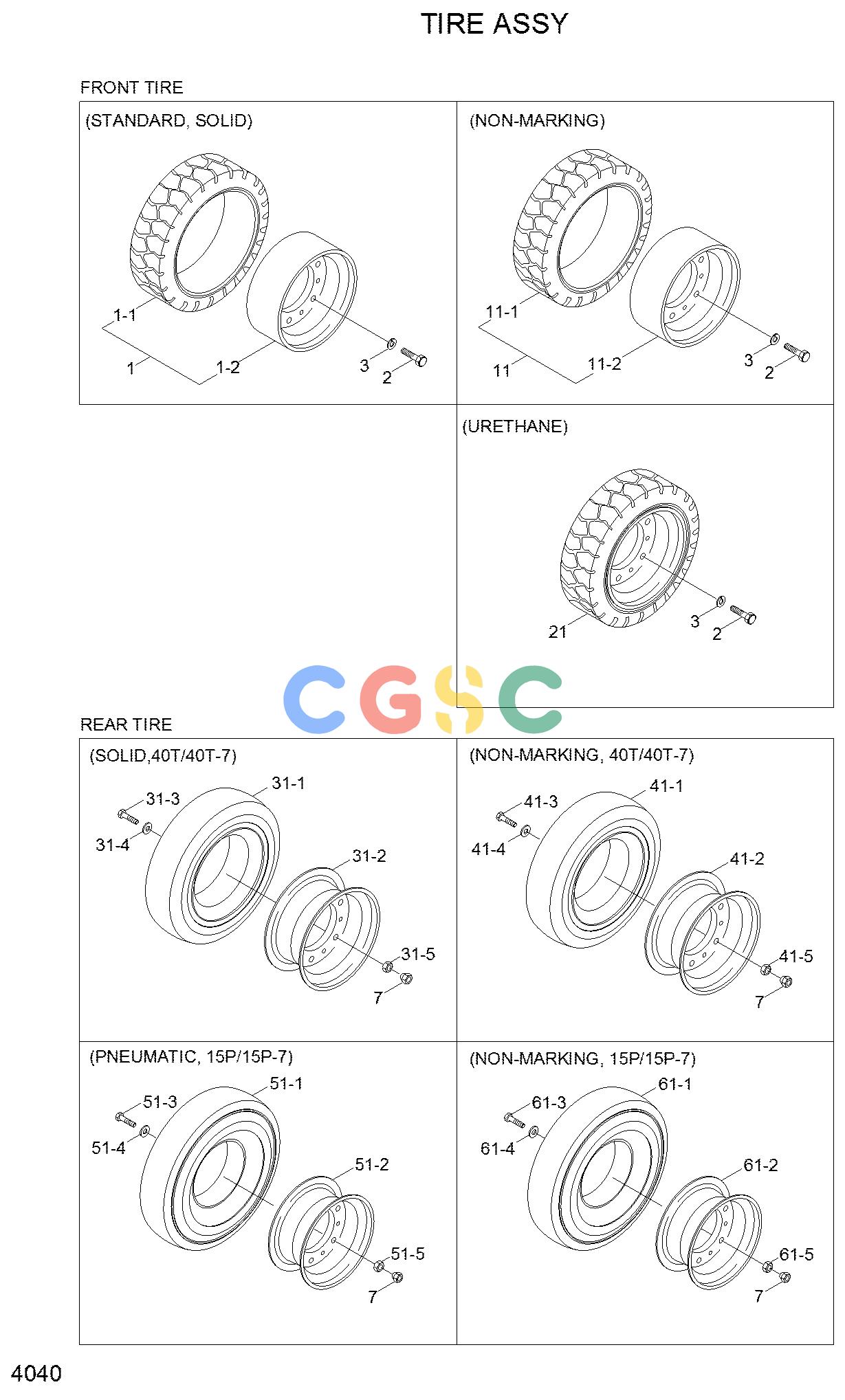

现代零件查询15PA/40TA-7 TIRE ASSYEPC Hyundai _现代Hyundai_工程机械

现代零件查询15PA/40TA-7 TIRE ASSYEPC Hyundai

广数供应链运营团队, 14 02月, 2025，浏览： 299 次

Pos.	Part No	Qty	Parts name	Comments
1.	3601006600-02	[1]	DRIVE TIRE-STD,FR	CUSHION,15PA
1.	81HB-20100	[1]	DRIVE TIRE-STD,FR	CUSHION,15PA
1.	3601006600-02	[1]	DRIVE TIRE-STD,FR	CUSHION,40TA
1.	81HB-20100	[1]	DRIVE TIRE-STD,FR	CUSHION,40TA
1-1.	3621009500-04	[1]	SOLID TIRE ASSY	15PA
1-1.	81HB-20110	[1]	SOLID TIRE ASSY	15PA
1-1.	3621009500-04	[1]	SOLID TIRE ASSY	40TA
1-1.	81HB-20110	[1]	SOLID TIRE ASSY	40TA
1-2.	3664020000B-05	[1]	CENTER-WHEEL
2.	S018-16035D	[6]	BOLT-HEX
3.	S411-160006	[6]	WASHER-SPRING
7.	3678004400-DA	[12]	NUT-HUB
11.	B31440100	[1]	TIRE & RIM ASSY	NON-MARK,15PA
11.	81HB-20300	[1]	TIRE & RIM ASSY	NON-MARK,15PA
11.	B31440100	[1]	TIRE & RIM ASSY	NON-MARK,40TA
11.	81HB-20300	[1]	TIRE & RIM ASSY	NON-MARK,40TA
11-1.	B31440110	[1]	DRIVE TIRE-N/MARKING	15PA
11-1.	81HB-20310	[1]	NON-MARKING TIRE-FR	15PA
11-1.	B31440110	[1]	DRIVE TIRE-N/MARKING	40TA
11-1.	81HB-20310	[1]	NON-MARKING TIRE-FR	40TA
11-2.	3664020000B-05	[1]	CENTER-WHEEL
N21.	B31420010	[1]	DRIVE WHEEL(URETHANE)	URETHAN
21.	81FP-29110	[1]	DRIVE TIRE-URETHANE	15PA
21.	81FP-29110	[1]	DRIVE TIRE-URETHANE	40TA
31.	6600225801	[2]	SOLID TIRE & RIM ASSY	40TA/40TA-7
31.	81HB-20600	[2]	SOLID TIRE & RIM ASSY	40TA/40TA-7
31.	81HB-20601	[2]	SOLID TIRE & RIM ASSY	40TA/40TA-7
31-1.	3621005700	[1]	SOLID TIRE-RR	SOLID,40TA
31-1.	81HB-20610	[1]	SOLID TIRE-RR	SOLID,40TA
31-2.	3661008000B-03	[1]	DISC WHEEL ASSY	15PA
31-2.	87HH-21010	[1]	RIM ASSY	15PA
31-2.	3661008000B-03	[1]	DISC WHEEL ASSY	40TA
31-2.	87HH-21010	[1]	RIM ASSY	40TA
31-3.	S018-100256	[6]	BOLT-HEX
31-4.	S411-100006	[6]	WASHER-SPRING
31-5.	222110000	[6]	NUT-HEX
41.	B31450101	[2]	TIRE & RIM ASSY	40TA/40TA-7
41.	81HB-20700	[2]	TIRE & RIM ASSY	40TA/40TA-7
41.	81HB-20701	[2]	TIRE & RIM ASSY	40TA/40TA-7
41-1.	B31450110	[6]	NON-MARKING TIRE-RR	NON-MARK,40TA
41-1.	81HB-20710	[6]	NON-MARKING TIRE-RR	NON-MARK,40TA
41-2.	3661008000B-03	[6]	DISC WHEEL ASSY	15PA
41-2.	87HH-21010	[6]	RIM ASSY	15PA
41-2.	3661008000B-03	[6]	DISC WHEEL ASSY	40TA
41-2.	87HH-21010	[6]	RIM ASSY	40TA
41-3.	S018-100256	[6]	BOLT-HEX	15PA
41-3.	S018-100256	[6]	BOLT-HEX	40TA
41-4.	S411-100006	[1]	WASHER-SPRING
41-5.	222110000	[1]	NUT-HEX
N51.	F11410011	[2]	REAR WHEEL ASSY	15PA/15PA-7
N51.	81HB-20400	[2]	REAR WHEEL ASSY	15PA/15PA-7
N51-1.	F11310140	[1]	PNEUMATIC TIRE-RR	PNEUMATIC
51-2.	3661008000B-03	[6]	DISC WHEEL ASSY	15PA
51-2.	87HH-21010	[6]	RIM ASSY	15PA
51-2.	3661008000B-03	[6]	DISC WHEEL ASSY	40TA
51-2.	87HH-21010	[6]	RIM ASSY	40TA
51-3.	S018-100256	[6]	BOLT-HEX
51-4.	S411-100006	[6]	WASHER-SPRING
51-5.	S206-10100B	[1]	NUT-HEX
61.	F21404001	[2]	TIRE & RIM ASSY	15PA/15PA-7
61.	81HH-28510	[2]	TIRE & RIM ASSY-N/MARK	15PA/15PA-7
61.	81HH-28511	[2]	TIRE & RIM ASSY(NON-MARKING)	15PA/15PA-7
61-1.	F21404010	[1]	TIRE ASSY-NON MARKING	NON-MARKING
61-1.	81HH-28010	[1]	TIRE ASSY-NON MARKING	NON-MARKING
61-2.	3661008000B-03	[1]	DISC WHEEL ASSY	15PA
61-2.	87HH-21010	[1]	RIM ASSY	15PA
61-2.	3661008000B-03	[1]	DISC WHEEL ASSY	40TA
61-2.	87HH-21010	[1]	RIM ASSY	40TA
61-3.	S018-100256	[6]	BOLT-HEX
61-4.	S411-100006	[6]	WASHER-SPRING
61-5.	S206-10100B	[6]	NUT-HEX
71.	F11410090	[2]	TIRE & RIM ASSY(SOLID)	15PA
71.	81HH-27510	[2]	TIRE & RIM ASSY-SOLID	15PA
71.	81HH-27511	[2]	TIRE & RIM ASSY(SOLID)	15PA
71-1.	3631000900	[1]	TIRE-REAR(5-10)	15PA
71-1.	81HH-27010	[1]	TIRE ASSY-SOLID	15PA
71-2.	3661008000B-03	[1]	DISC WHEEL ASSY	15PA
71-2.	87HH-21010	[1]	RIM ASSY	15PA
71-2.	3661008000B-03	[1]	DISC WHEEL ASSY	40TA
71-2.	87HH-21010	[1]	RIM ASSY	40TA
71-2-1.	3661008011	[1]	RIM
71-2-2.	3661008012	[1]	RIM
71-3.	S018-100256	[6]	BOLT-HEX
71-4.	S206-10100B	[6]	NUT-HEX
71-5.	S411-100006	[6]	WASHER-SPRING
