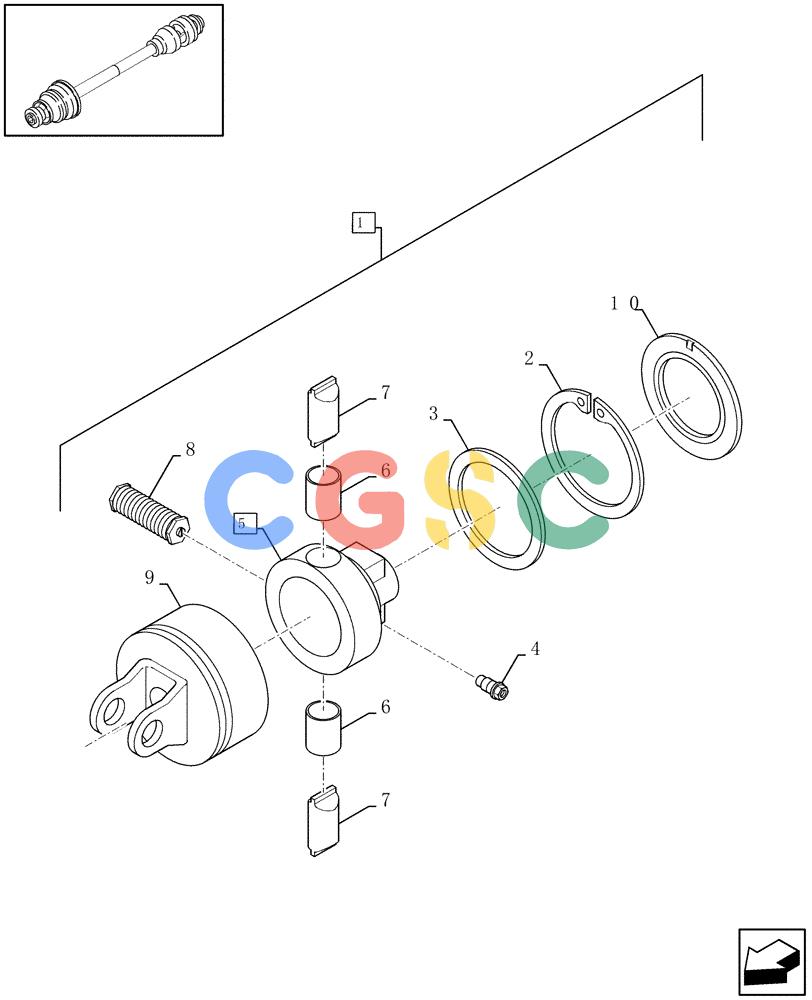

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (01.02[01]) - CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84817531
|
[1] |
CLUTCH
|
PLO
, Serial Range: (2-10) Superseded by part number: 82849232
|
| 2. |
84817533
|
[1] |
CIRCLIP
|
PLO
|
| 3. |
84817534
|
[1] |
RING
|
PLO
Superseded by part number: 906083R1
|
| 4. |
84031172
|
[1] |
LOCK PIN
|
ZED
|
| 5. |
84817536
|
[1] |
HUB
|
PLO
Superseded by part number: 387874A1
|
| 6. |
84817537
|
[2] |
BUSHING
|
PLO
Superseded by part number: 387878A1
|
| 7. |
84817538
|
[2] |
CAM
|
PLO
Superseded by part number: 387876A1
|
| 8. |
84817539
|
[1] |
SPRING
|
PLO
|
| 9. |
84817540
|
[1] |
HOUSING
|
PLO
|
| 10. |
84817532
|
[1] |
RING
|
PLO
Superseded by part number: 387877A1
|
