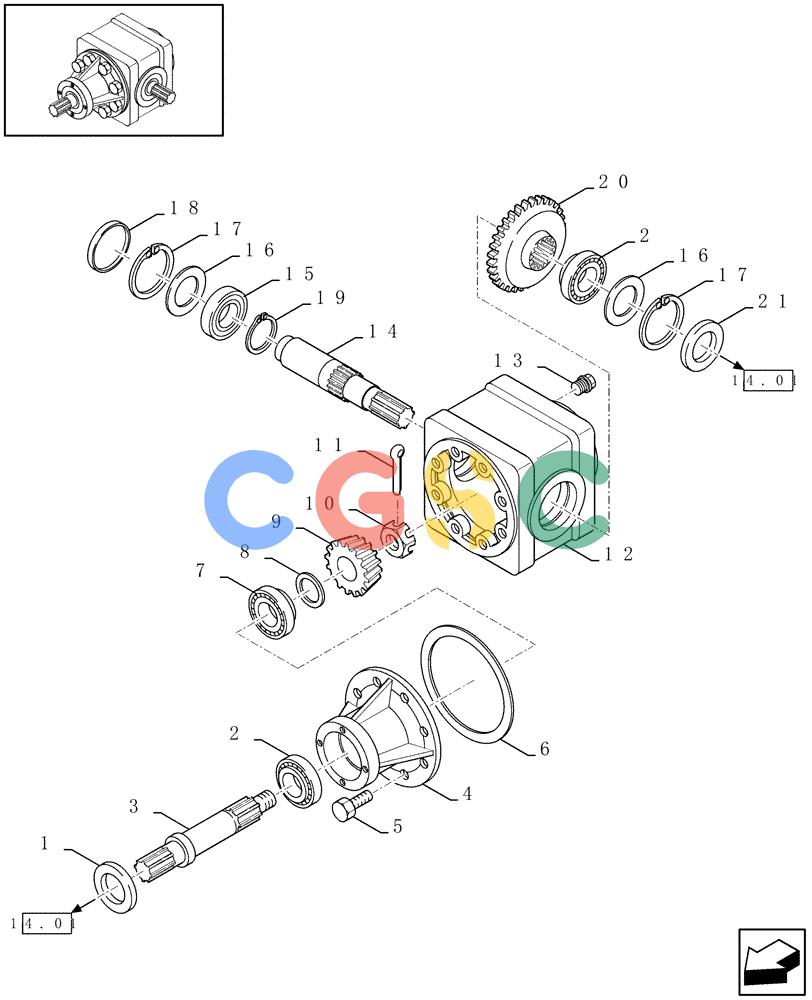

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (03.01[01]) - GEARBOX Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
84025172
|
[1] |
GEARBOX
|
PLO
, Serial Range: (1-21)
|
| 1. |
84056740
|
[1] |
OIL SCRAPER RING
|
PLO
|
| 2. |
80210053
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 87668909
|
| 3. |
84056739
|
[1] |
SHAFT
|
PLO
|
| 4. |
84056738
|
[1] |
HOUSING
|
PLO
|
| 5. |
80043139
|
[8] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 6. |
84056737
|
[1] |
SEAL PROTECTION
|
PLO
|
| 7. |
86557433
|
[1] |
TAPERED BEARING,40mm ID x 80mm OD x 24.75mm W
|
NH
|
| 8. |
322493200
|
[1] |
SET OF RINGS
|
PLO
Superseded by part number: 86623229
|
| 9. |
84056735
|
[1] |
GEAR
|
PLO
|
| 10. |
84056732
|
[1] |
NUT
|
PLO
|
| 11. |
84056731
|
[1] |
COTTER PIN
|
PLO
|
| 12. |
84056729
|
[1] |
HOUSING
|
PLO
|
| 13. |
89837623
|
[3] |
PLUG
|
ZED
Superseded by part number: 86557412
|
| 14. |
84056734
|
[1] |
SHAFT
|
PLO
|
| 15. |
80301164
|
[1] |
BEARING ASSY
|
PLO
Superseded by part number: 84312857
|
| 16. |
84056730
|
[2] |
WASHER
|
PLO
|
| 17. |
80300633
|
[2] |
SNAP RING,M80, Int
|
ZED
Superseded by part number: 300633
|
| 18. |
322493050
|
[1] |
CAP COVER
|
PLO
Superseded by part number: 86539148
|
| 19. |
84056733
|
[1] |
CIRCLIP
|
PLO
|
| 20. |
84056736
|
[1] |
GEAR
|
PLO
|
| 21. |
89817522
|
[1] |
GASKET
|
PLO
Superseded by part number: 9817522
|
