纽荷兰零件查询(D150B) - CRAWLER DOZER TIER 3 (HYDRO) (10/07-) (03-10) - FUEL FILTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
909 次

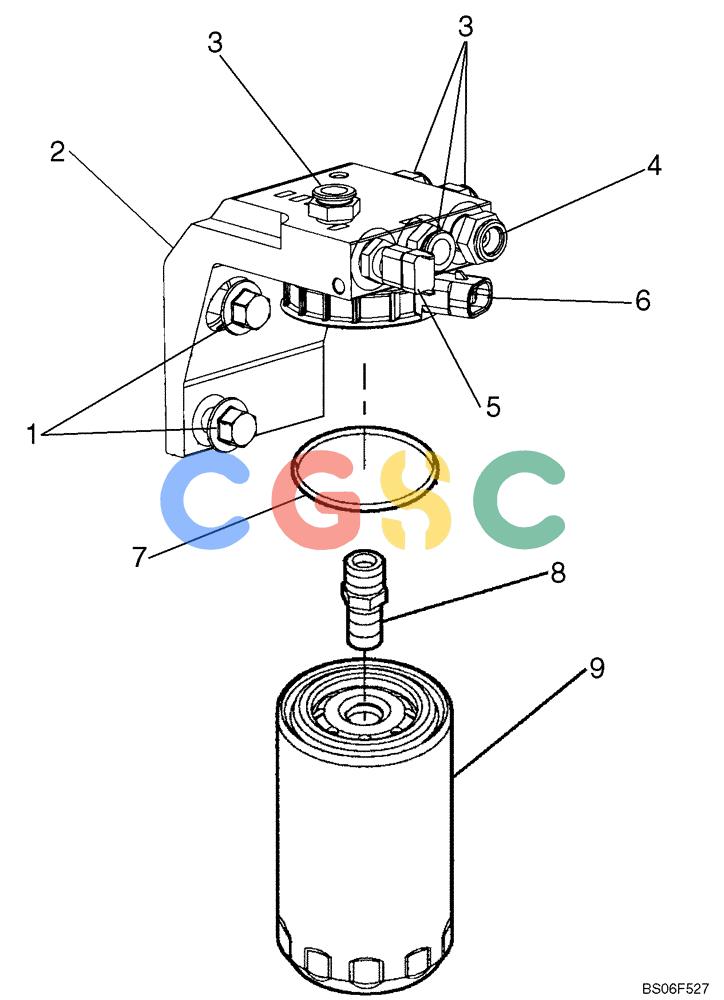

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854566 | [2] | SCREW | TORM12 x 30 Hex Flange Head Screw Superseded by part number: 2856035 |
| . . | 2854561 | [1] | HOUSING | TORFilter Housing Assembly Includes Ref 2 - 8 Superseded by part number: |
| 2. | 2854562 | [1] | BRACKET | TORSupport and Head Superseded by part number: 2855425 |
| 3. | 2854563 | [4] | FITTING | TORQuick Disconnect Connectors; Includes O-Ring Superseded by part number: 504210082 |
| 4. | 2854564 | [1] | FITTING | TORQuick Disconnect Connector; Includes O-Ring |
| 5. | 4897224 | [1] | SENSOR | TORTemperature |
| 6. | 4897838 | [1] | HEATER | TORElement |
| 7. | 4898876 | [1] | O-RING,63.1mm ID x 3.53mm Width | TOR |
| 8. | 2854565 | [1] | BUSHING | TORThreaded Bushing |
| 9. | 2853548 | [1] | FUEL FILTER | BASFilter Element Superseded by part number: 4897897 |
| 9. | 87803197 | [1] | FUEL FILTER | BAS Superseded by part number: 84412164 |
