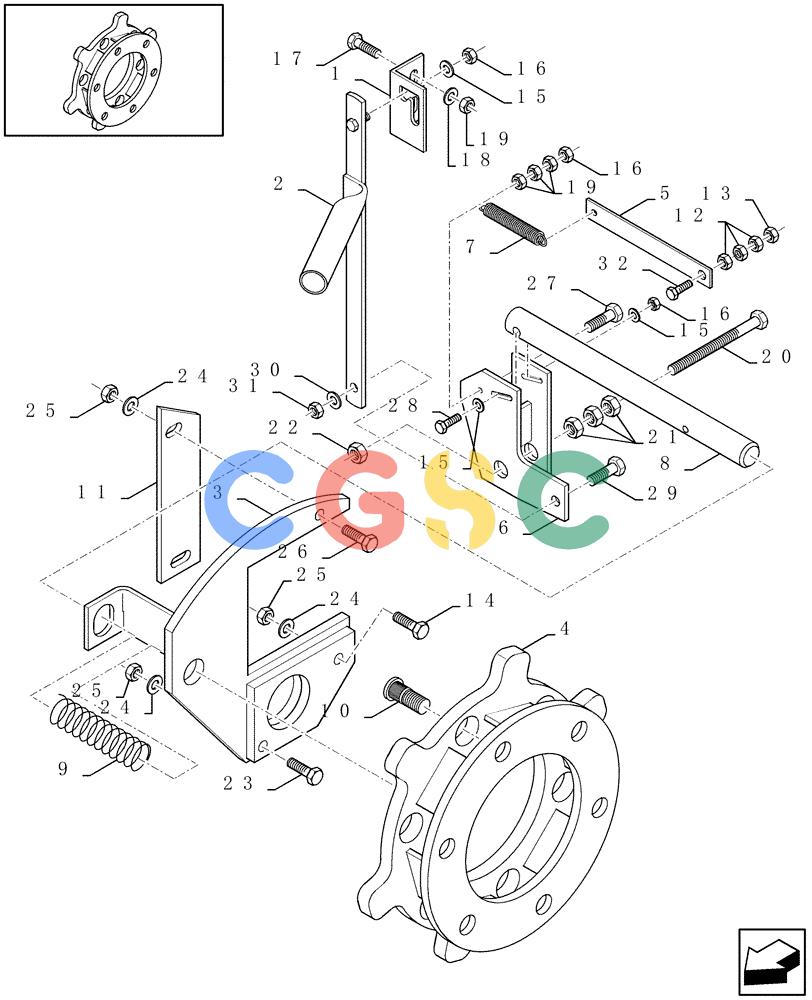

凯斯零件查询(RBX341) - CASE IH ROUND BALER (9/02-12/05) (05.02[01]) - HANDBRAKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84068350
|
[1] |
BRACKET
|
PLO
|
| 2. |
84068344
|
[1] |
LEVER
|
PLO
|
| 3. |
84068578
|
[1] |
SUPPORT
|
PLO
|
| 4. |
84068355
|
[1] |
RING GEAR
|
PLO
|
| 5. |
84068345
|
[1] |
BRACKET
|
PLO
|
| 6. |
84068353
|
[1] |
SUPPORT
|
PLO
|
| 7. |
80354039
|
[1] |
SPRING
|
PLO
Superseded by part number: 354039
|
| 8. |
84068351
|
[1] |
SHAFT
|
PLO
|
| 9. |
80449205
|
[1] |
SPRING
|
PLO
Superseded by part number: 449205
|
| 10. |
80418817
|
[6] |
BOLT
|
ZED
Superseded by part number: 87736436
|
| 11. |
84068575
|
[1] |
PLATE
|
PLO
|
| 12. |
15896221
|
[4] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 13. |
80353308
|
[1] |
NUT
|
ZED
M6 Superseded by part number: 353308
|
| 14. |
80120068
|
[1] |
SCREW
|
ZED
M10x40 Superseded by part number: 120068
|
| 15. |
80378243
|
[3] |
WASHER
|
ZED
8MM Superseded by part number: 378243
|
| 16. |
80100067
|
[3] |
NUT
|
ZED
M8 Superseded by part number: 86528579
|
| 17. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 18. |
80322358
|
[2] |
LOCK WASHER
|
ZED
8MM Superseded by part number: 322358
|
| 19. |
43362
|
[5] |
NUT,M8 x 1.25, Cl 10
|
BHB
|
| 20. |
89814566
|
[1] |
SCREW
|
PLO
M16x190
|
| 21. |
100020
|
[3] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 22. |
80100039
|
[1] |
NUT
|
ZED
M16 Superseded by part number: 86000441
|
| 23. |
80120069
|
[1] |
SCREW
|
ZED
M10x50 Superseded by part number: 120069
|
| 24. |
80140045
|
[3] |
WASHER
|
ZED
10MM Superseded by part number: 140045
|
| 25. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 26. |
80120111
|
[1] |
SCREW
|
ZED
M10x30 Superseded by part number: 43140
|
| 27. |
80120106
|
[1] |
SCREW,M8 x 40mm
|
ZED
M8x40 Superseded by part number: 16044024
|
| 28. |
80120061
|
[1] |
BOLT,M8 x 60mm
|
ZED
M8x60 Superseded by part number: 120061
|
| 29. |
80043139
|
[1] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 30. |
80140017
|
[1] |
WASHER
|
ZED
10MM Superseded by part number: 14496621
|
| 31. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
M10 Superseded by part number: 100037
|
| 32. |
80338413
|
[1] |
SCREW
|
ZED
M6x60 Superseded by part number: 338413
|
