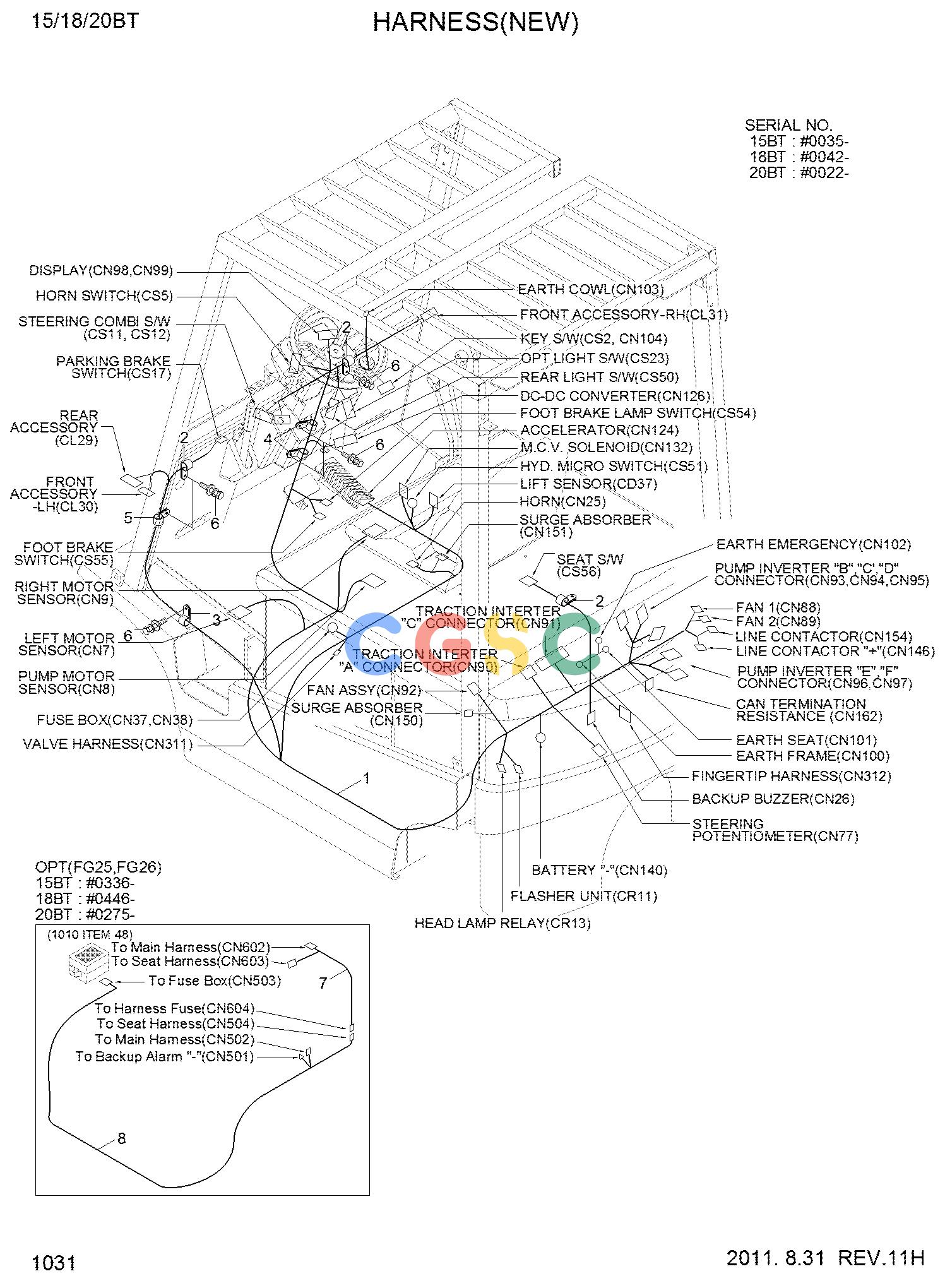

现代零件查询16/18/20B-7 HARNESS(NEW)EPC Hyundai _现代Hyundai_工程机械

现代零件查询16/18/20B-7 HARNESS(NEW)EPC Hyundai

广数供应链运营团队, 14 02月, 2025，浏览： 436 次

Pos.	Part No	Qty	Parts name	Comments
.	@	[1]	HARNESS-MAIN	16B
.	@	[1]	HARNESS-MAIN	18B
.	@	[1]	HARNESS-MAIN	20B
1.	21HE-75013	[1]	HARNESS-MAIN	STD,16B
1.	21HE-75014	[1]	HARNESS-MAIN	STD,16B
1.	21HE-75013	[1]	HARNESS-MAIN	STD,18B
1.	21HE-75014	[1]	HARNESS-MAIN	STD,18B
1.	21HE-75013	[1]	HARNESS-MAIN	STD,20B
1.	21HE-75014	[1]	HARNESS-MAIN	STD,20B
1.	21HE-75024	[1]	HARNESS-MAIN	FOR UL,16B
1.	21HE-75025	[1]	HARNESS-MAIN	FOR UL,16B
1.	21HE-75026	[1]	HARNESS-MAIN	FOR UL,16B
1.	21HE-75024	[1]	HARNESS-MAIN	FOR UL,18B
1.	21HE-75025	[1]	HARNESS-MAIN	FOR UL,18B
1.	21HE-75026	[1]	HARNESS-MAIN	FOR UL,18B
1.	21HE-75024	[1]	HARNESS-MAIN	FOR UL,20B
1.	21HE-75025	[1]	HARNESS-MAIN	FOR UL,20B
1.	21HE-75026	[1]	HARNESS-MAIN	FOR UL,20B
1.	21HE-75070	[1]	HARNESS-MAIN	16B
1.	21HE-75071	[1]	HARNESS-MAIN	16B
1.	21HE-75070	[1]	HARNESS-MAIN	18B
1.	21HE-75071	[1]	HARNESS-MAIN	18B
1.	21HE-75070	[1]	HARNESS-MAIN	20B
1.	21HE-75071	[1]	HARNESS-MAIN	20B
1-1.	B71890030	[2]	ABSORBER-SURGE	NOT SHOWN
1-2.	21FH-15030	[1]	RESISTANCE-CAN	NOT SHOWN
1-3.	21FY-75080	[1]	RESISTANCE-CONTACTOR	NOT SHOWN
2.	S543-100002	[4]	CLAMP-TUBE
3.	S543-180002	[1]	CLAMP-TUBE
4.	S543-280002	[2]	CLAMP-TUBE
5.	31L6-02460	[1]	CLAMP-TUBE
6.	S035-081526	[6]	BOLT-W/WASHER
7.	21FH-05132	[1]	HARNESS-SEAT	16,OPTION SEAT
7.	21FH-05132	[1]	HARNESS-SEAT	18,OPTION SEAT
7.	21FH-05132	[1]	HARNESS-SEAT	20,OPTION SEAT
8.	21HE-75120	[1]	HARNESS-FUSE	16B,HEATING
8.	21HE-75120	[1]	HARNESS-FUSE	18B,HEATING
8.	21HE-75120	[1]	HARNESS-FUSE	20B,HEATING
