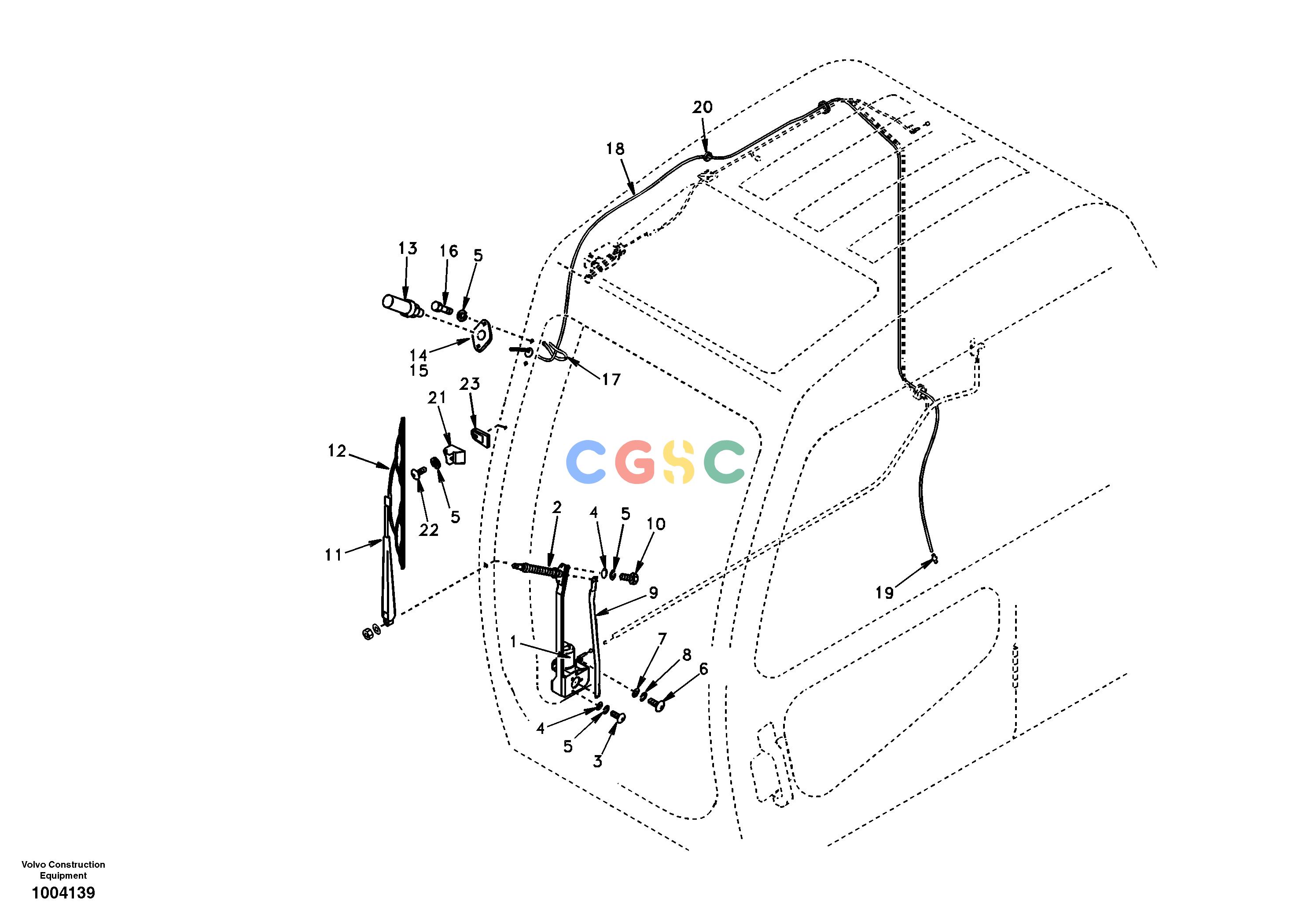

沃尔沃零件查询EW130 Windshield wiperNone8277412-8277413NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14529140
|
[1] |
Wiper motor
|
|
| 2. |
VOE14529149
|
[1] |
Bracket
|
|
| 3. |
VOE969422
|
[3] |
Six point socket screw
|
|
| 4. |
VOE955892
|
[5] |
Plain washer
|
|
| 5. |
VOE955919
|
[8] |
Spring washer
|
|
| 6. |
SA9021-10803
|
[3] |
Cross recessed screw
|
|
| 7. |
VOE13955894
|
[3] |
Washer
|
|
| 8. |
VOE955921
|
[3] |
Spring washer
|
|
| 9. |
VOE14529150
|
[1] |
Link
|
|
| 10. |
VOE14881310
|
[2] |
Cross recessed screw
|
|
| 11. |
VOE14529141
|
[1] |
Wiper arm
|
|
| 12. |
VOE14529142
|
[1] |
Wiper blade
|
|
| 13. |
VOE14529209
|
[1] |
Nozzle
|
|
| 14. |
VOE14529038
|
[1] |
Plate
|
|
| 15. |
VOE14529210
|
[1] |
Bracket
|
|
| 16. |
VOE946544
|
[2] |
Flange screw
|
|
| 17. |
SA9314-02100
|
[1] |
Cable tie
|
|
| 18. |
VOE14881170
|
[1] |
Cooling hose
|
|
| 19. |
VOE14529354
|
[1] |
Hose connection
|
|
| 20. |
SA9751-11003
|
[1] |
Grommet
|
|
| 21. |
VOE14529151
|
[1] |
Stopping device
|
|
| 22. |
VOE969587
|
[1] |
Six point socket screw
|
|
| 23. |
VOE14529200
|
[1] |
Grommet
|
|
