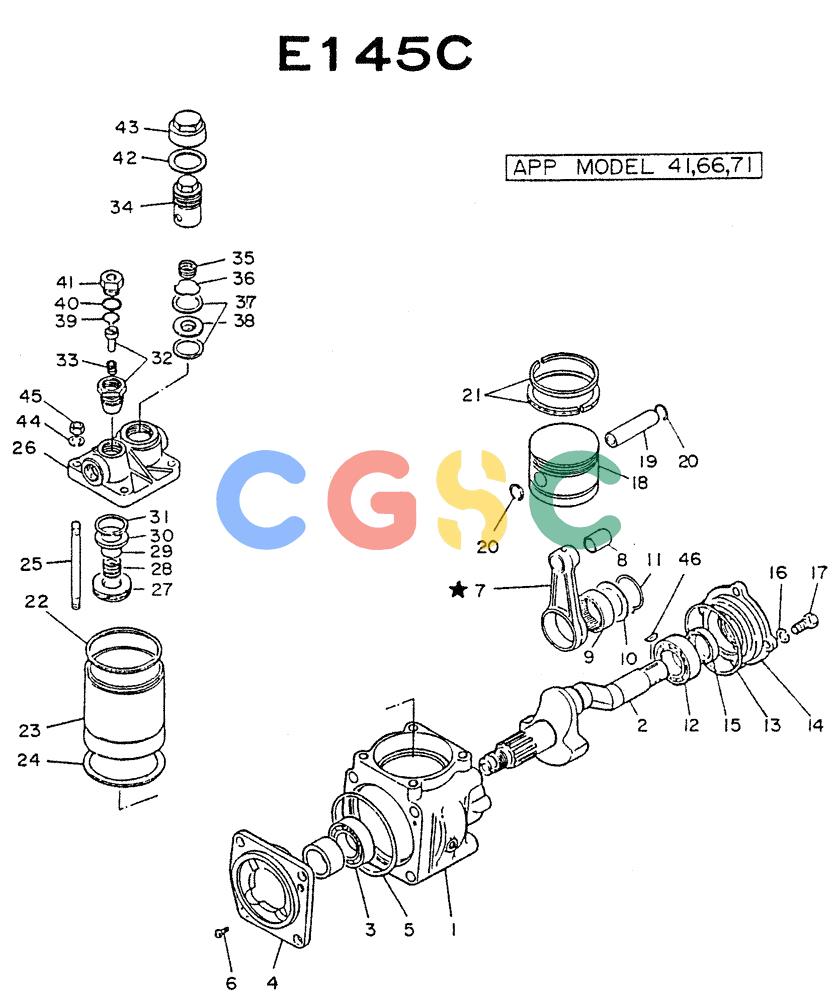

神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (04-009) - COMPRESSOR AIR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
988 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-46. | VG1450195002 | [1] | AIR COMPRESSOR COMPRESSOR-AIR | AIR COMPRESSOR COMPRESSOR-AIR |
| 1. | VG1450696000 | [1] | CASE | KOBCASE-CRANK |
| 2. | VG1450999004 | [1] | SHAFT-CRANK | |
| 3. | VG1451190002 | [1] | BEARING BEARING-BALL | BEARING BEARING-BALL |
| 4. | VG1451399004 | [1] | HOLDER-BEARING | |
| 5. | VG1451496001 | [1] | PACKING | KOB0 RING |
| 6. | VG0831051200 | [2] | SCREW, M5X16 | |
| 7-9. | VG1451696000 | [1] | CONNECTING ROD | KOBROD ASSY-CONNECTING |
| 8. | VG1451896000 | [1] | BUSHING | KOBBUSHING |
| 9. | VG1452496000 | [1] | BALL BEARING | KOBBEARING-NEEDLE |
| 10. | VG1452390001 | [1] | PISTON RING SET | KOBPING |
| 11. | VG1453990002 | [1] | PISTON RING SET | KOBRING-STOP |
| 12. | VG2112690000 | [1] | BALL BEARING | KOBBEARING-BALL |
| 13. | VG1451490003 | [1] | O-RING | KOB0 RING |
| 14. | VG1451399001 | [1] | HOLDER-BEARING | |
| 15. | VG1451590005 | [1] | SEAL-OIL | |
| 16. | VG0891513800 | [4] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 17. | VG0811082010 | [4] | BOLT BOLT | BOLT BOLT |
| 18. | VG1452896000 | [1] | PISTON | KOBPISTON |
| 19. | VG1453296000 | [1] | PIN PIN-PISTON | PIN PIN-PISTON |
| 20. | VG1453496000 | [2] | PISTON RING SET | KOBRING-STOP |
| 21. | VG1452999000 | [1] | PISTON RING SET | KOBRING ASSY-PISTON |
| 22. | VG1453696000 | [1] | PACKING | KOBPACKING |
| 23. | VG1453596000 | [1] | LINER, ENGINE CYLIND | KOBCYLINDER |
| 24. | VG1453796000 | [1] | PACKING | KOBPACKING |
| 25. | VG1453896000 | [4] | STUD | KOBSTUD. M10X21 |
| 26-43. | VG1454096000 | [1] | HEAD | KOBHEAD ASSY-CYL. Superseded by part number: VG1456096000 |
| 26. | VG1454899001 | [1] | HEAD-CYL. | |
| 27-31. | VG1457099028 | [1] | VALVE | KOBVALVE KIT-SUCTION |
| 27. | VG1457799001 | [1] | HOLDER, INJECTOR NOZ | KOBHOLDER-SUCTION |
| 28. | VG1456896000 | [1] | SPRING | KOBSPRING-SUCTION |
| 29. | VG1457096000 | [1] | VALVE | KOBVALVE-SUCTION |
| 30. | VG1457296000 | [1] | PACKING | KOBPACKING |
| 31. | VG1457196000 | [1] | VALVE SEAT | KOBSEAT-VALVE SUCTION |
| 32. | VG1455299000 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE ASSY-UNLOADER Superseded by part number: 1455299000 |
| 33. | VG1455690001 | [1] | SPRING | KOBSPRING-VALVE Superseded by part number: 1455690001 |
| 34-38. | VG1456999026 | [1] | VALVE | KOBVALVE KIT-DELIVERY |
| 34. | VG1455499009 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE HOLDER-VALVE, Start Serial: 8611- |
| 34. | VG1455499002 | [1] | VALVE KIT HOLDER-VALVE | VALVE KIT HOLDER-VALVE |
| 35. | VG1455096000 | [1] | HYDRAULIC VALVE | KOBSPRING-VALVE |
| 36. | VG1455196000 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE-DELIVERY |
| 37. | VG1457299000 | [2] | PACKING | KOBPACKING |
| 38. | VG1455396000 | [1] | VALVE SEAT | KOBSEAT-DELIVERY VALVE |
| 39. | VG1453390000 | [1] | CLIP | KOBCLIP Superseded by part number: 1453390000 |
| 40. | VG0996161800 | [1] | PACKING | |
| 41. | VG1455999003 | [1] | CONNECTOR CONNECTOR | CONNECTOR CONNECTOR |
| 42. | VG1459396000 | [1] | PACKING | KOBPACKING |
| 43. | VG1459499000 | [1] | CAP | KOBCAP |
| 44. | VG0891514010 | [4] | WASHER WASHER-SPRING | WASHER WASHER-SPRING |
| 45. | VG0891114010 | [4] | NUT | NUT |
| 46. | VG1463690000 | [1] | KEY | |
