神钢零件查询(NE6(T)04) - NISSAN DIESEL ENGINE (1/86-12/98) (04-011) - PUMP OIL (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
203 次

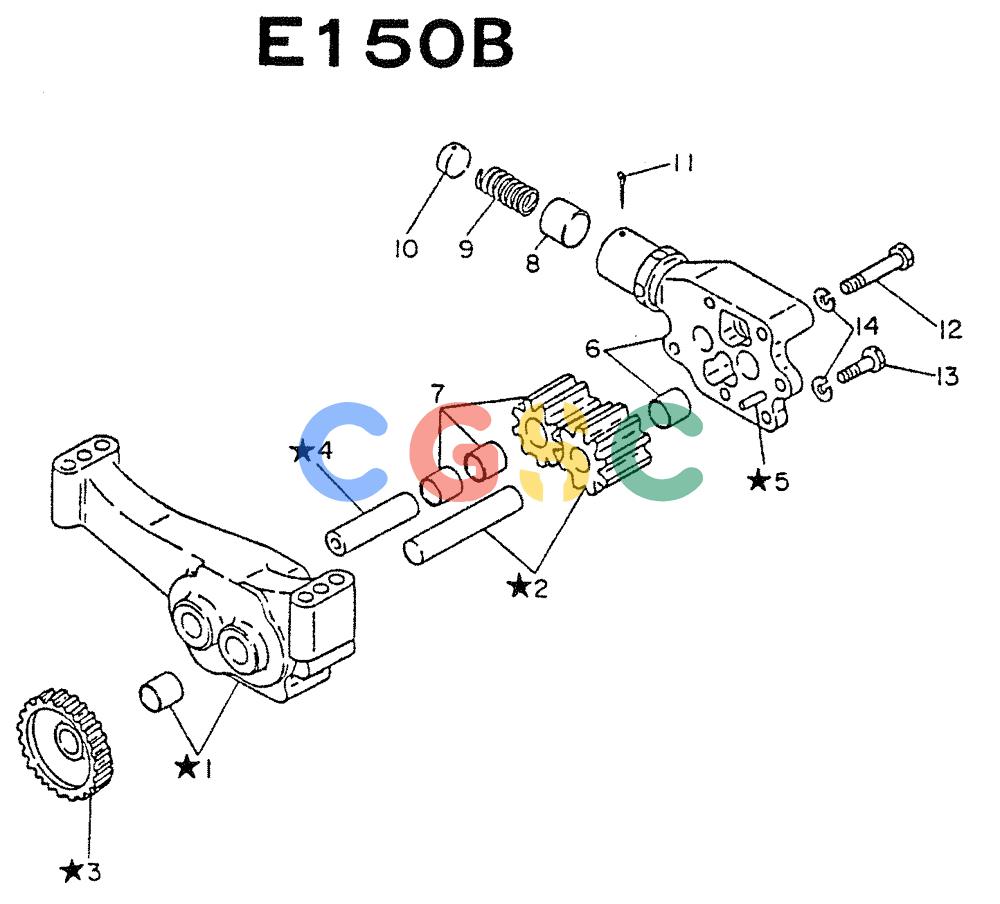

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-14. | VG1501095007 | [1] | PUMP | KOBPUMP-OIL |
| 1-5. | VG1502399108 | [1] | CASE ASSY-GEAR | |
| 6. | VG1501499005 | [1] | COVER ASSY | |
| 7. | VG1502399010 | [1] | GEAR ASSY | |
| 8. | VG1503499001 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE OIL RELIFE |
| 9. | VG1503599003 | [1] | SPRING | KOBSPRING-OIL RELIEF |
| 10. | VG1503699003 | [1] | SEAL | KOBSEAT-SPRING |
| 11. | VG1503999000 | [1] | KEY | KOBPIN-SPLIT |
| 12. | VG1503399009 | [3] | BOLT | |
| 13. | VG1503399006 | [1] | BOLT | |
| 14. | VG0891513810 | [4] | WASHER SPRING WASHER-SPRING | WASHER SPRING WASHER-SPRING |
